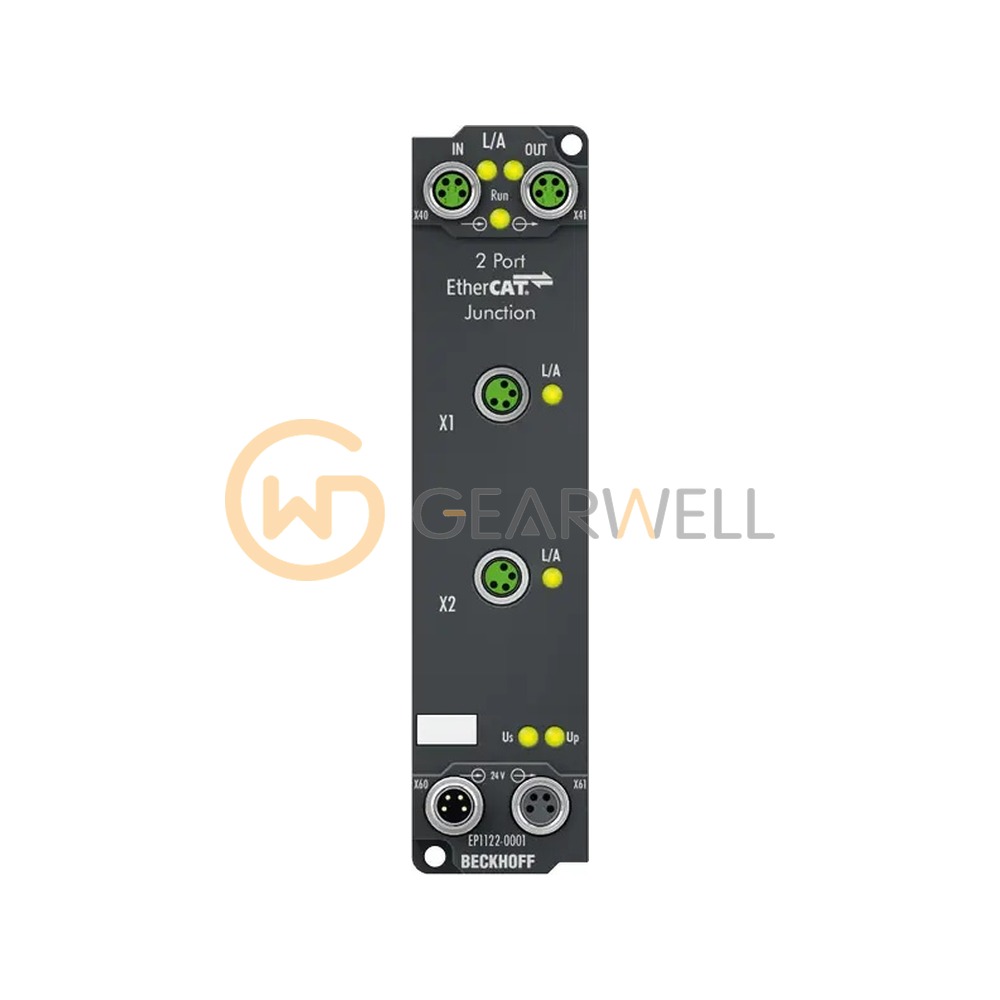

BECKHOFF EP1122-0001 EtherCAT Box 2-Port Junction
- Brand
- BECKHOFF
- Model
- EP1122-0001
- GEARWELL SKU
- GWP-000007145
- Category
- PLCs & I/O
Key specifications
- Weight
- approx. 165 g
- Protocol
- EtherCAT
- Bus interface
- 2 x M8 socket, 4-pin, a-coded, shielded
- Nominal voltage
- 24 V DC (-15%/+20%)
- Number of ports
- 2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EP1122-0001 is an IP65/66/67 EtherCAT Box junction with 2 EtherCAT ports on M8 connectors, used to branch EtherCAT lines in the field at 100 Mbit/s with up to 100 m between stations. Check the full order number, including any suffix, on the module when requesting a quote.
Technical reference
| Product name | BECKHOFF EP1122-0001 EtherCAT Box 2-Port Junction |
|---|---|
| Brand | BECKHOFF |
| Model | EP1122-0001 |
| Category | PLCs & I/O |
| Weight | approx. 165 g |
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Number of ports | 2 |
| Transmission rate | 100 Mbit/s |
| Transmission medium | EtherCAT cable |
| Distance between stations | 100 m (100BASE-TX) |
