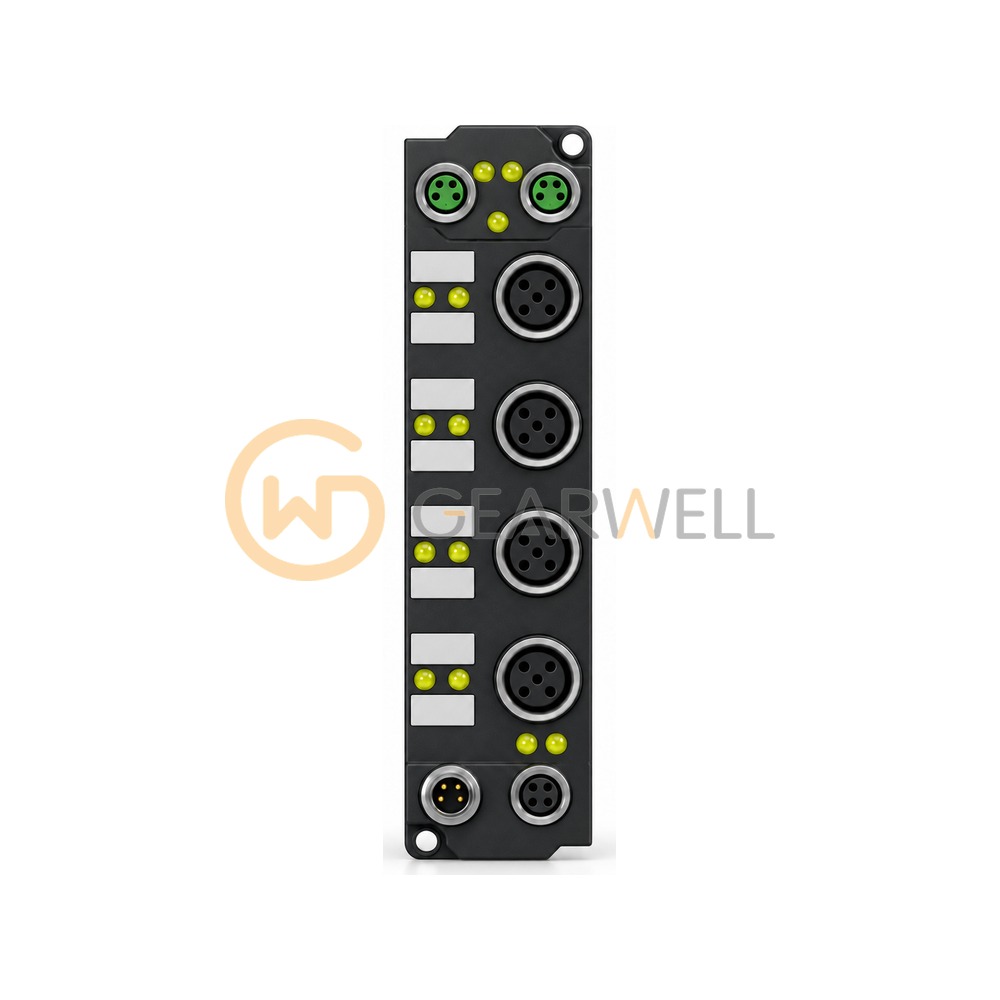

BECKHOFF EP6224-0002 EtherCAT Box 4-Channel IO-Link Master M12
- Brand
- BECKHOFF
- Model
- EP6224-0002
- GEARWELL SKU
- GWP-000015318
- Category
- Industrial Communication
Key specifications
- Bus interface
- 2 x M8 socket, 4-pin, EtherCAT
- Digital inputs
- 4 (24 V DC, 10 µs filter)
- Sensor supply L+
- 24 V DC, 1.4 A per port, total 4 A
- Protection rating
- IP65/66/67
- IO-Link interfaces
- 4 (IO-Link V1.1, Class A)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BECKHOFF EP6224-0002 EtherCAT Box 4-Channel IO-Link Master M12 |
|---|---|
| Brand | BECKHOFF |
| Model | EP6224-0002 |
| Category | Industrial Communication |
| Bus interface | 2 x M8 socket, 4-pin, EtherCAT |
| Digital inputs | 4 (24 V DC, 10 µs filter) |
| Sensor supply L+ | 24 V DC, 1.4 A per port, total 4 A |
| Protection rating | IP65/66/67 |
| IO-Link interfaces | 4 (IO-Link V1.1, Class A) |
| Dimensions (W x H x D) | 30 x 126 x 26.5 mm |
| Connection technology | M12 socket, 5-pin, a-coded |
