BECKHOFF EL9570 EtherCAT Buffering Terminal
- Brand
- BECKHOFF
- Model
- EL9570
- GEARWELL SKU
- GWP-000008162
- Category
- PLCs & I/O
Key specifications
- Capacity
- 500 µF
- Technology
- buffer capacitor
- Chopper voltage
- > 56 V
- Nominal voltage
- 48 V DC
- Max. ripple current
- 10 A @ 100 kHz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

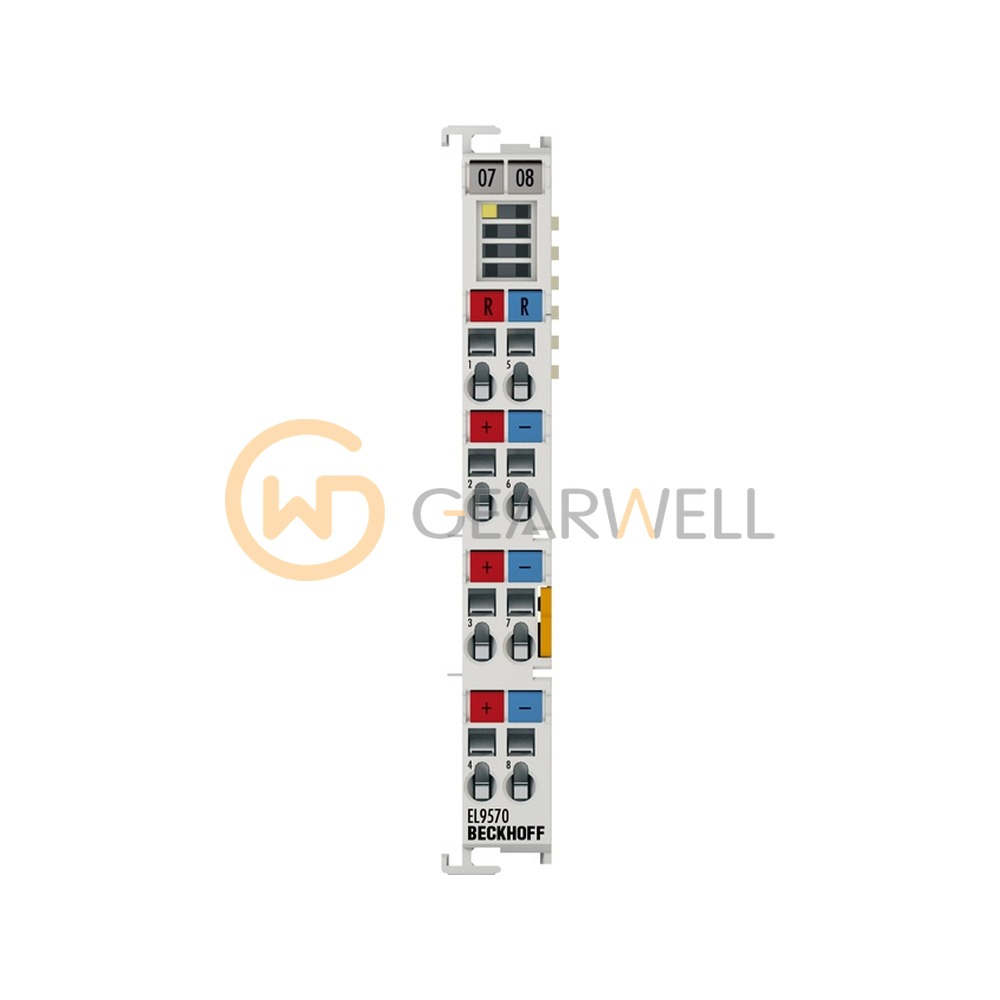

Beckhoff EL9570 is a 48 V DC buffer capacitor terminal for EtherCAT with 500 µF capacity, used with drive terminals such as the EL7041 and EL7211 to stabilize the supply voltage; surplus energy can be dissipated via an external braking resistor (chopper voltage above 56 V). Beckhoff recommends the EL9576 for new projects. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL9570 EtherCAT Buffering Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL9570 |
| Category | PLCs & I/O |
| Capacity | 500 µF |
| Technology | buffer capacitor |
| Chopper voltage | > 56 V |
| Nominal voltage | 48 V DC |
| Max. ripple current | 10 A @ 100 kHz |
| Internal resistance | < 20 mΩ @ 100 kHz |
| Overvoltage control range | ±2 V |
| Recommended braking resistor | see documentation |
