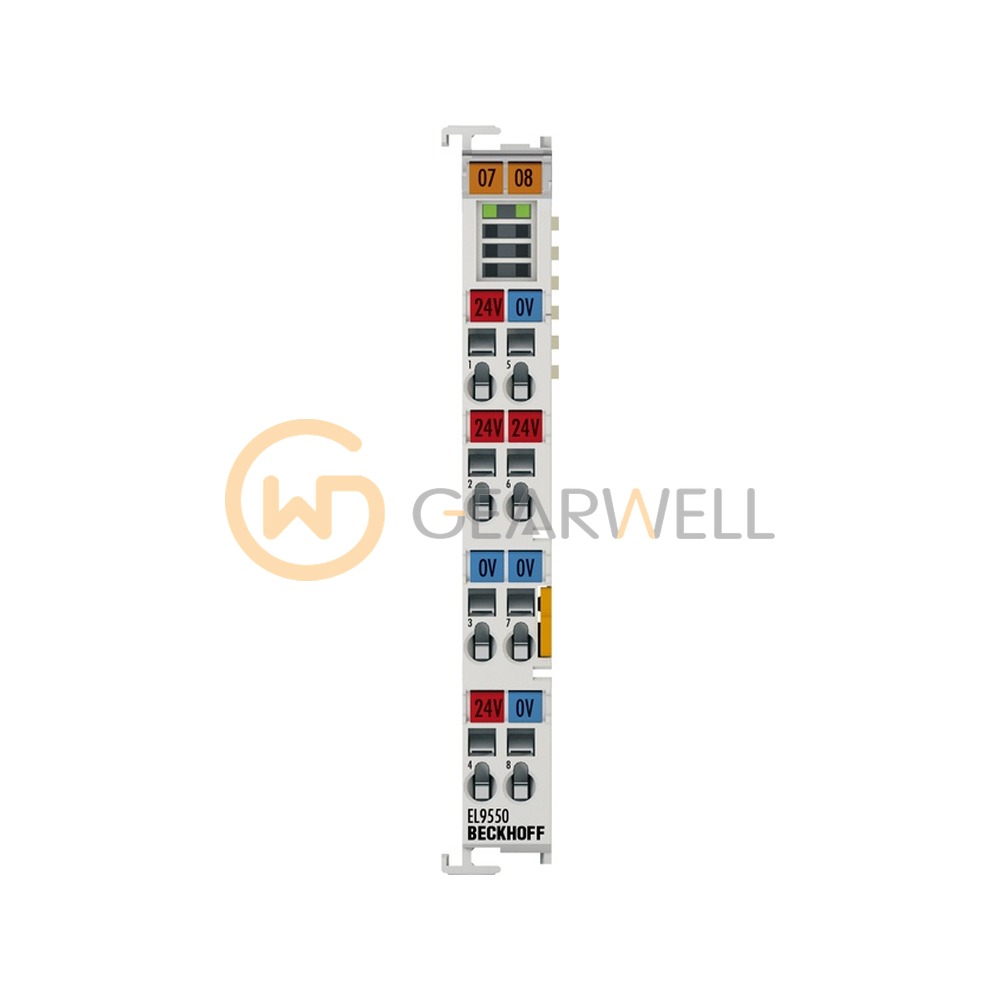

BECKHOFF EL9550 EtherCAT Surge Filter Terminal
- Brand
- BECKHOFF
- Model
- EL9550
- GEARWELL SKU
- GWP-000008161
- Category
- PLCs & I/O
Key specifications
- Weight
- approx. 50 g
- Technology
- surge filter system and field supply
- Nominal voltage
- 24 V (-15%/+20%)
- Electrical isolation
- 500 V (E-bus/field potential)
- Surge filter field supply
- yes
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL9550 is a surge filter terminal for EtherCAT stations that filters both the 24 V system supply (up to 1.5 A) and the field supply (up to 10 A). Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL9550 EtherCAT Surge Filter Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL9550 |
| Category | PLCs & I/O |
| Weight | approx. 50 g |
| Technology | surge filter system and field supply |
| Nominal voltage | 24 V (-15%/+20%) |
| Electrical isolation | 500 V (E-bus/field potential) |
| Surge filter field supply | yes |
| Surge filter system supply | yes |
| Current carrying capacity field supply | ≤ 10 A |
| Current carrying capacity system supply | ≤ 1.5 A |
