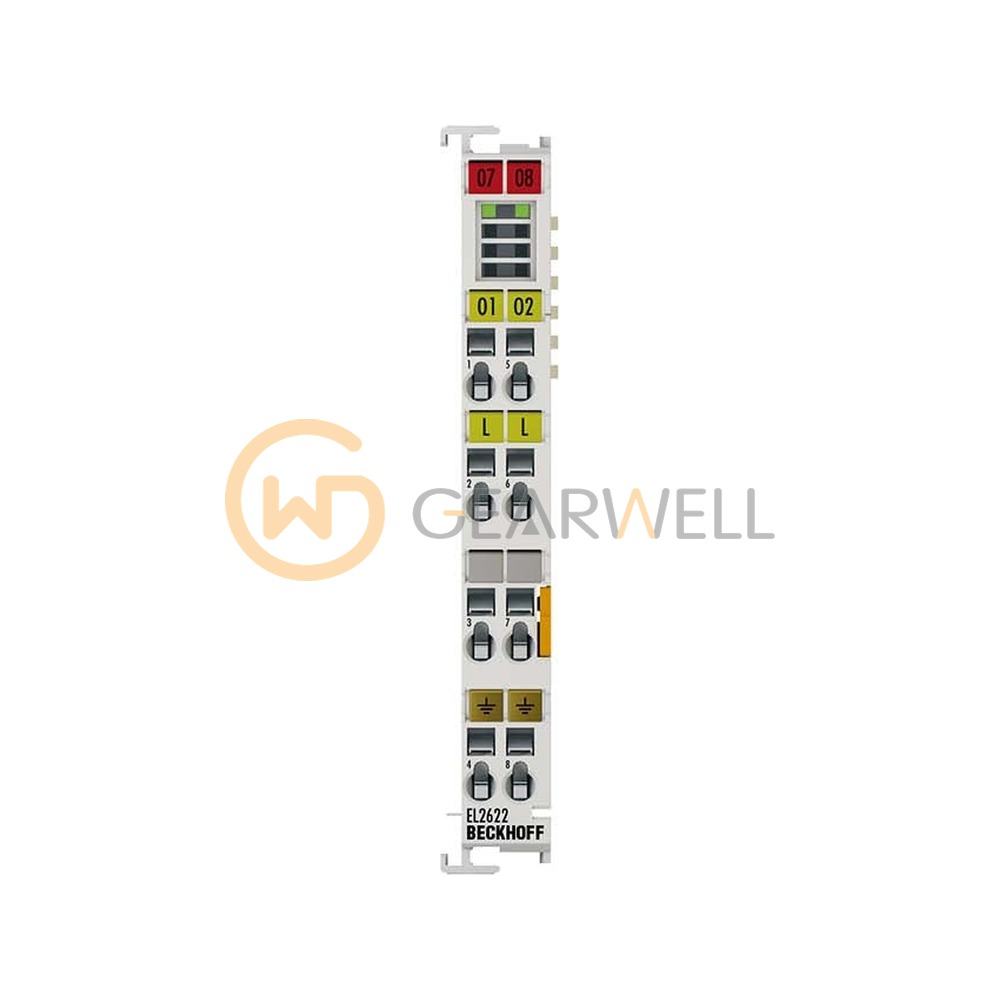

BECKHOFF EL2622 EtherCAT 2-Channel Relay Output Terminal
- Brand
- BECKHOFF
- Model
- EL2622
- GEARWELL SKU
- GWP-000007987
- Category
- PLCs & I/O
Key specifications
- Load type
- resistive, inductive, lamp load
- Nominal voltage
- 230 V AC/30 V DC
- Number of outputs
- 2 x make contacts
- Connection technology
- relay output
- Minimum permitted load
- 10 mA at 5 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL2622 is a 2-channel relay output terminal for EtherCAT with make contacts rated 230 V AC/30 V DC. Each channel switches up to 5 A resistive or 2 A inductive load. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL2622 EtherCAT 2-Channel Relay Output Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL2622 |
| Category | PLCs & I/O |
| Load type | resistive, inductive, lamp load |
| Nominal voltage | 230 V AC/30 V DC |
| Number of outputs | 2 x make contacts |
| Connection technology | relay output |
| Minimum permitted load | 10 mA at 5 V DC |
| Inductive switching current | 2 A AC/DC per channel |
| Resistive switching current | 5 A AC/DC per channel |
| Lamp test, electronic ballast | 4 x 58 W |
