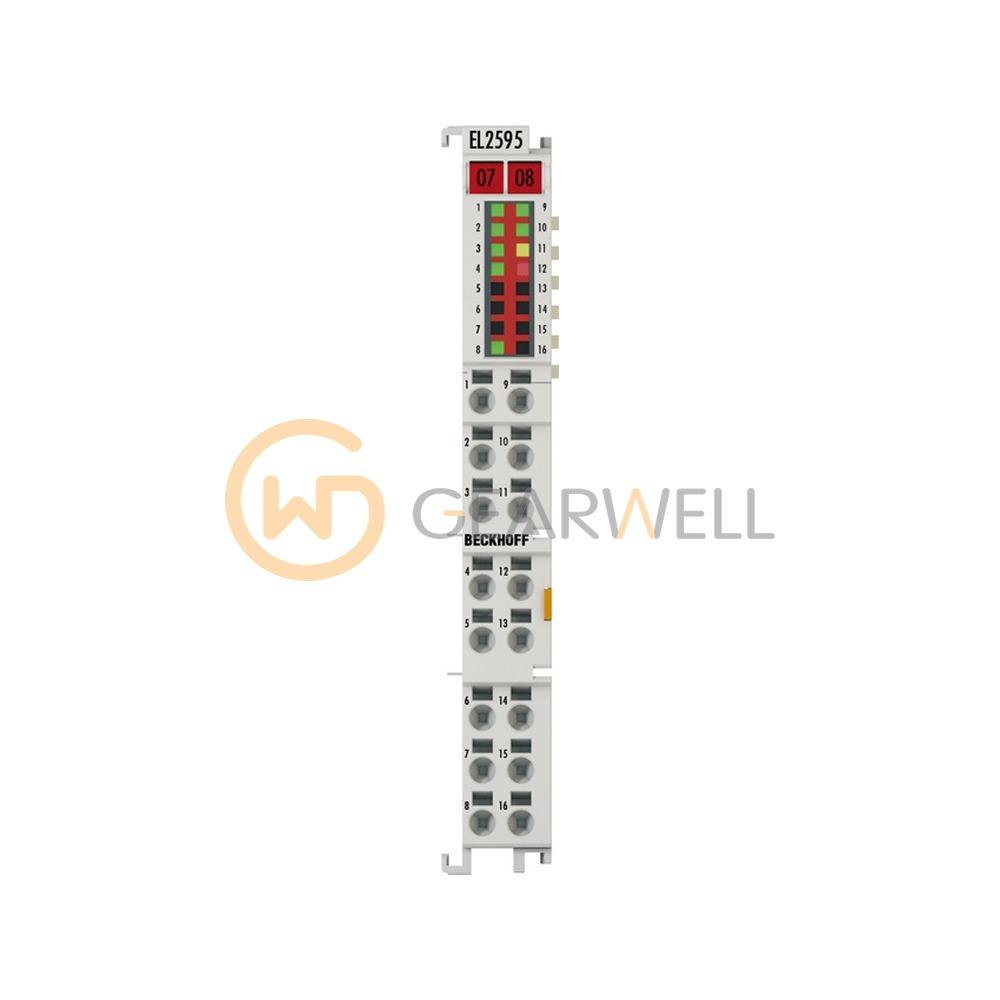

BECKHOFF EL2595 EtherCAT 1-Channel LED Output Terminal
- Brand
- BECKHOFF
- Model
- EL2595
- GEARWELL SKU
- GWP-000007985
- Category
- PLCs & I/O
Key specifications
- Load type
- LED (resistive)
- Input voltage
- 24 V DC (-15%/+20%)
- Output current
- 300…700 mA
- Switching times
- typ. T ON : OFF : < 1 µs, pulses from 200 µs
- Number of outputs
- 1
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL2595 is a 1-channel LED constant-current output terminal for EtherCAT for pulsed or continuous LED lighting. It supplies 300 to 700 mA at 2 to 48 V DC from a 24 V DC input and has an electrically isolated trigger input from a camera. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL2595 EtherCAT 1-Channel LED Output Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL2595 |
| Category | PLCs & I/O |
| Load type | LED (resistive) |
| Input voltage | 24 V DC (-15%/+20%) |
| Output current | 300…700 mA |
| Switching times | typ. T ON : OFF : < 1 µs, pulses from 200 µs |
| Number of outputs | 1 |
| Connection technology | 2-wire |
| Trigger input (from camera) | 1 (electrically isolated, typ. 8 mA, 5…24 V DC) |
| Distributed clock accuracy | << 1 µs |
