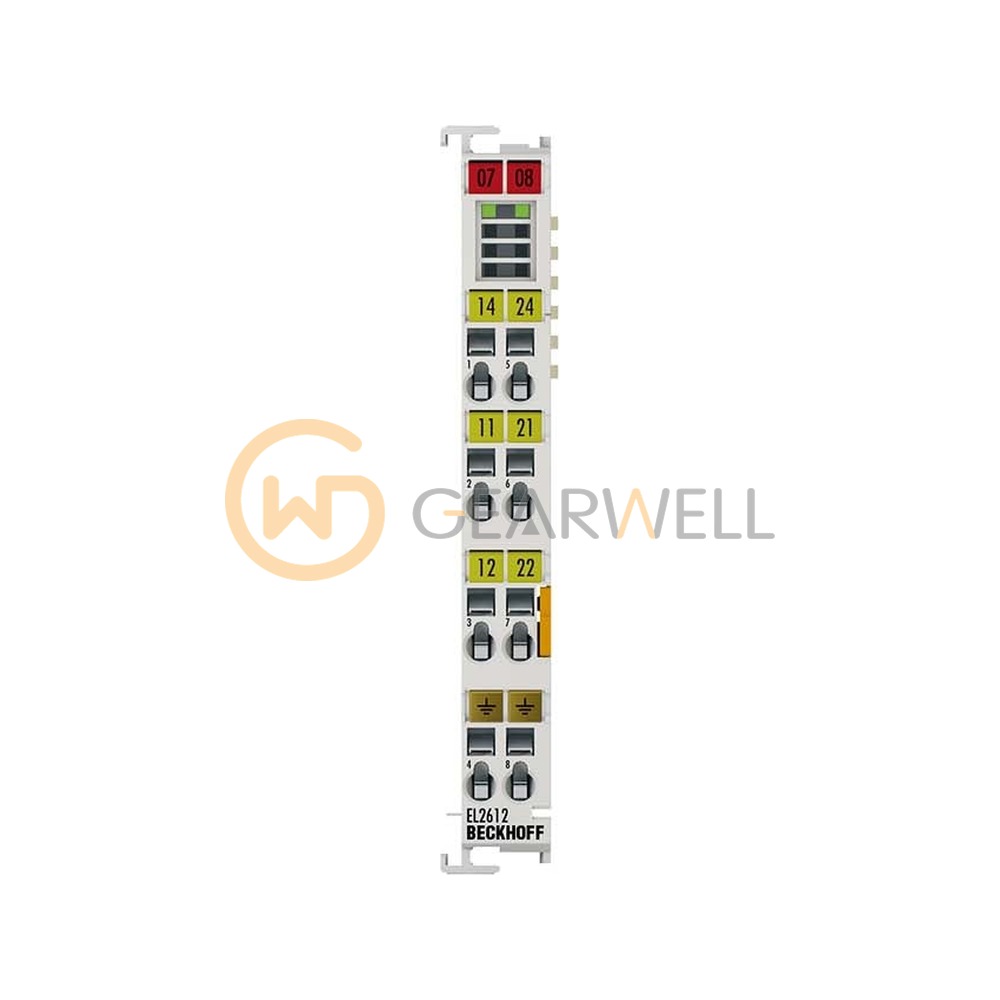

BECKHOFF EL2612 EtherCAT 2-Channel Relay Output Terminal
- Brand
- BECKHOFF
- Model
- EL2612
- GEARWELL SKU
- GWP-000007986
- Category
- PLCs & I/O
Key specifications
- Load type
- resistive
- Nominal voltage
- 125 V AC/30 V DC
- Number of outputs
- 2 x change-over
- Connection technology
- relay output
- Minimum permitted load
- 10 µA at 10 mV DC with intact contact coating
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL2612 is a 2-channel relay output terminal for EtherCAT with change-over signal relays, rated 125 V AC/30 V DC. Each contact switches 0.5 A AC or 2 A DC resistive load, and the terminal draws typically 150 mA from the E-bus. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL2612 EtherCAT 2-Channel Relay Output Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL2612 |
| Category | PLCs & I/O |
| Load type | resistive |
| Nominal voltage | 125 V AC/30 V DC |
| Number of outputs | 2 x change-over |
| Connection technology | relay output |
| Minimum permitted load | 10 µA at 10 mV DC with intact contact coating |
| Current consumption E-bus | typ. 150 mA |
| Inductive switching current | no data |
| Resistive switching current | 0.5 A AC/2 A DC per channel |
