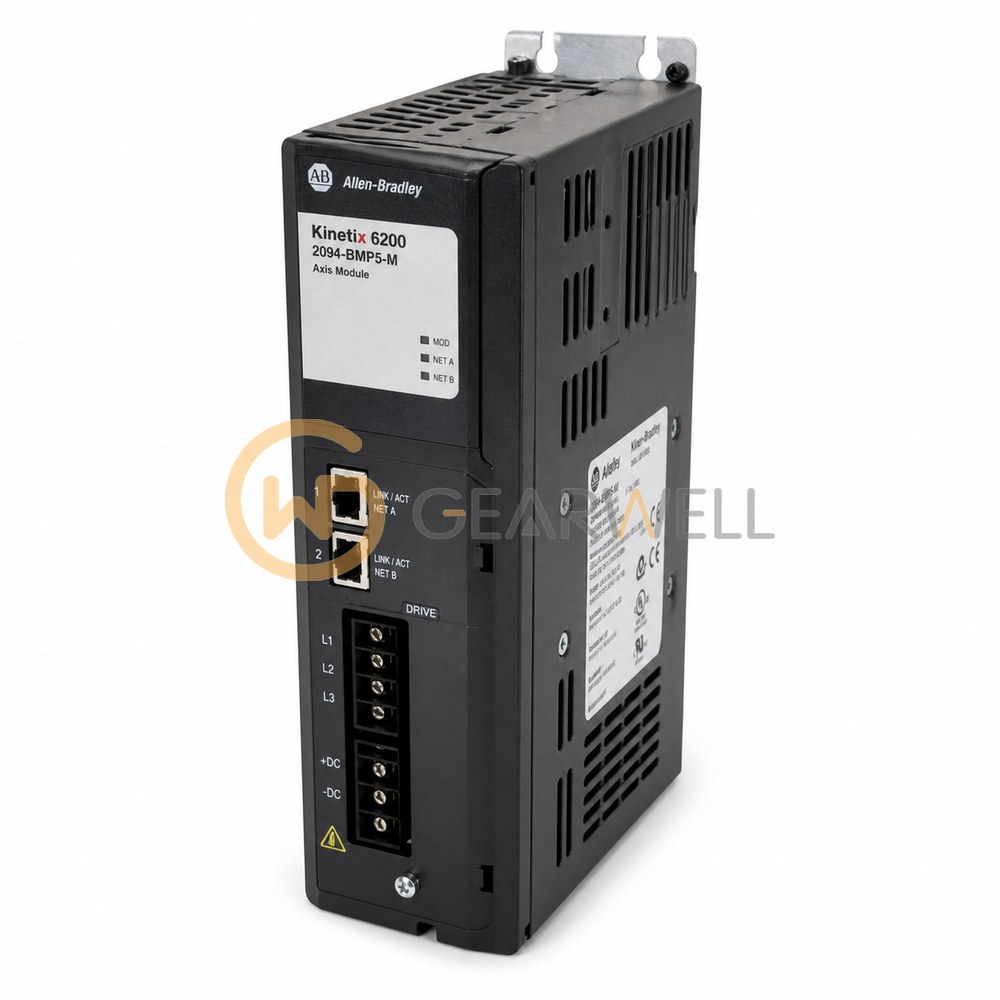

Allen-Bradley 2094-BMP5-M Kinetix 6200/6500 Axis Power Module
- Brand
- Allen-Bradley
- Model
- 2094-BMP5-M
- GEARWELL SKU
- GWP-000002837
- Category
- Servo Systems
Key specifications
- Approximate power-module weight
- 3.18 kg
- Application
- Axis inverter for a modular Kinetix 6200 or 6500 servo drive system
- Product type
- Kinetix 6200/6500 axis power module
- PWM switching frequency
- 8 kHz
- Product family
- Kinetix 6200 / Kinetix 6500
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2094-BMP5-M is a Kinetix 6200 / 6500 axis module from Rockwell's Kinetix servo drive family. It is a 400V-class inverter that runs from the 650V DC bus of the power rail, rated 2.8 A rms continuous and 7.0 A rms peak output current, with 1.8 kW nominal continuous power out. Kinetix 6200 (Sercos interface) and Kinetix 6500 (Integrated Motion on EtherNet/IP) are modular drives whose control module sets the network and safety function, from Safe Torque Off to Safe Speed Monitor. The operating ambient temperature is 0…50 °C.
Technical reference
| Product name | Allen-Bradley 2094-BMP5-M Kinetix 6200/6500 Axis Power Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 2094-BMP5-M |
| Category | Servo Systems |
| Approximate power-module weight | 3.18 kg |
| Application | Axis inverter for a modular Kinetix 6200 or 6500 servo drive system |
| Product type | Kinetix 6200/6500 axis power module |
| PWM switching frequency | 8 kHz |
| Product family | Kinetix 6200 / Kinetix 6500 |
| Nominal DC bus input | 650 V DC |
| Control-module requirement | One compatible Kinetix 6200 or 6500 control module per power module; do not mix control families on one rail |
| Nominal continuous inverter output power | 1.8 kW nominal; observe low-speed current derating |
| Continuous inverter output current | 2.8 A rms; high-speed rating, derate below 5 Hz electrical output frequency |
