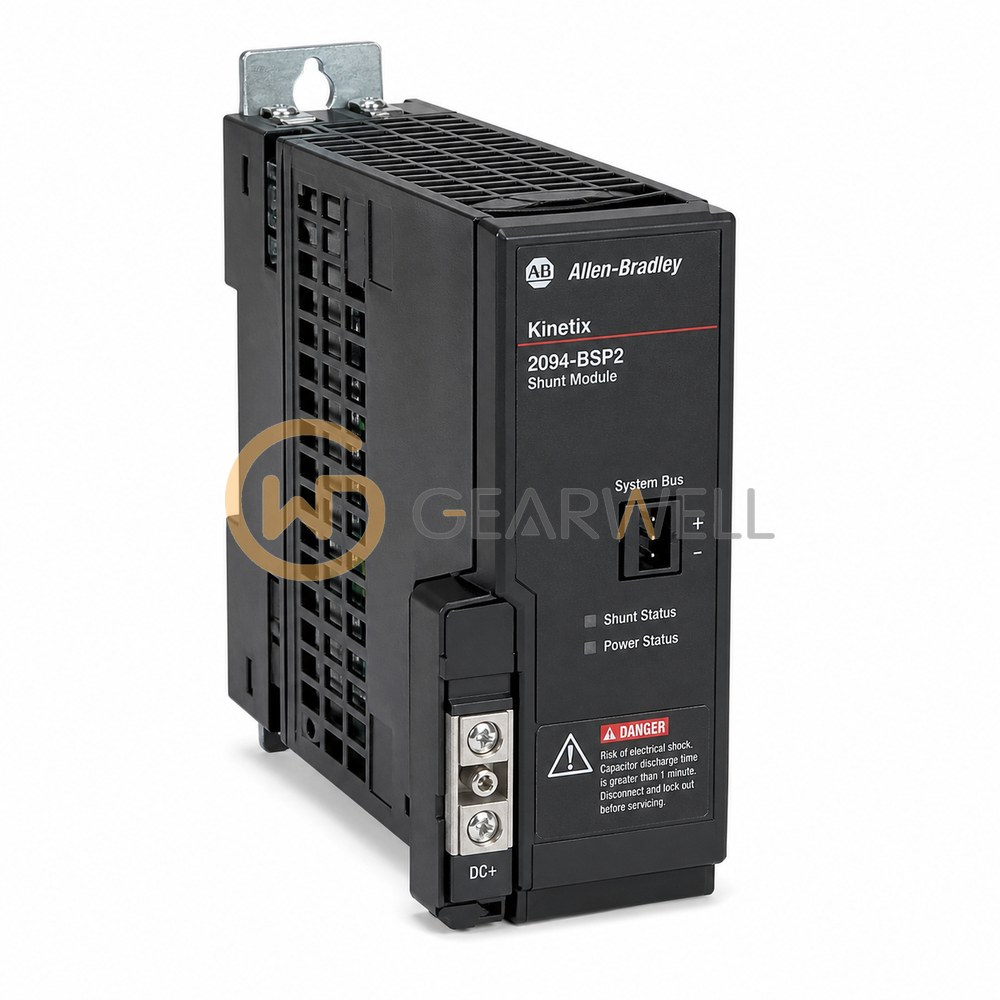

Allen-Bradley 2094-BSP2 Kinetix Rail-Mounted Shunt Module
- Brand
- Allen-Bradley
- Model
- 2094-BSP2
- GEARWELL SKU
- GWP-000003564
- Category
- Servo Systems
Key specifications
- Approximate weight
- 3.10 kg
- Peak shunt power
- 5.7 kW at 230 V system voltage; 22.5 kW at 460 V system voltage
- Rail space
- One inverter slot
- Shunt resistance
- 28.75 ohms
- Module capacitance
- 470 microfarads
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2094-BSP2 is a Bulletin 2094 shunt module from Rockwell's Bulletin 2094 accessory range. It is the Bulletin 2094 shunt module for Kinetix 6000, Kinetix 6200 and Kinetix 6500 drives, compatible with 200V-class and 400V-class systems. It has a 28.75 Ω resistor, 200 W continuous power and 470 µF capacitance; peak power is 5.7 kW (14 A) on 230V systems and 22.5 kW (28 A) on 460V systems. It has connectors for an external shunt resistor (RC) and thermal switch (TS), and weighs 3.10 kg.
Technical reference
| Product name | Allen-Bradley 2094-BSP2 Kinetix Rail-Mounted Shunt Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 2094-BSP2 |
| Category | Servo Systems |
| Approximate weight | 3.10 kg |
| Peak shunt power | 5.7 kW at 230 V system voltage; 22.5 kW at 460 V system voltage |
| Rail space | One inverter slot |
| Shunt resistance | 28.75 ohms |
| Module capacitance | 470 microfarads |
| Peak shunt current | 14 A at 230 V system voltage; 28 A at 460 V system voltage |
| Product type | Kinetix rail-mounted shunt module |
| Drive-system voltage | 230 V AC or 460 V AC system; not a direct AC input rating |
| Drive-system voltage classes | 200 V / 400 V |
| Continuous shunt dissipation | 200 W |
| External shunt connections | RC: external resistor; TS: external thermal switch |
| Compatible drive systems | Kinetix 6000, 6200 and 6500 |
