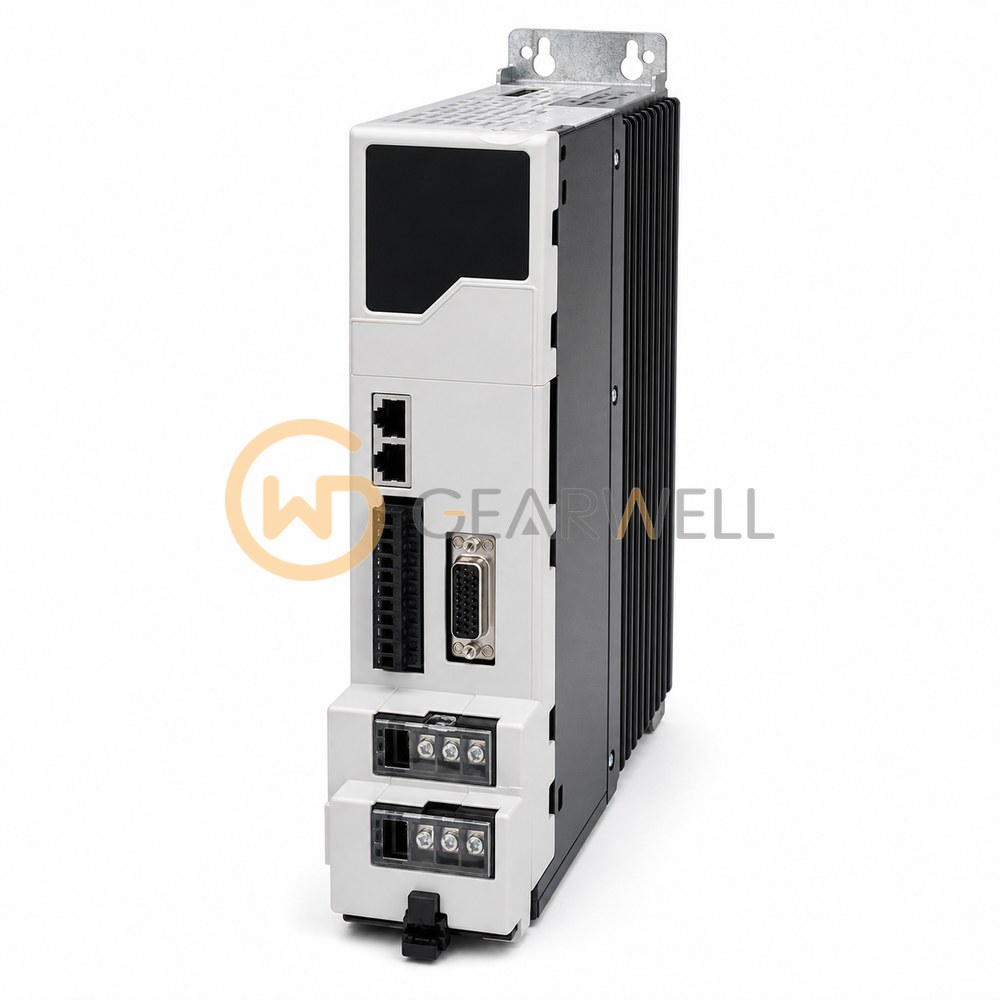

Allen-Bradley 2094-BM05-S Kinetix 6000 400 V Axis Module with STO
- Brand
- Allen-Bradley
- Model
- 2094-BM05-S
- GEARWELL SKU
- GWP-000000761
- Category
- Servo Systems
Key specifications
- Approximate weight
- 4.98 kg
- Module capacitance
- 1175 microfarads
- Product type
- Kinetix 6000 axis module
- Motion communication
- Sercos fiber-optic interface
- PWM switching frequency
- 4 kHz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2094-BM05-S is a Kinetix 6000 axis module from Rockwell's Kinetix servo drive family. It is a 400V-class inverter that runs from the 650V DC bus of the power rail, rated 34.6 A rms continuous and 51.9 A rms peak (series A) or 69.2 A rms in peak-enhanced mode (series B or later) output current, with 22.0 kW nominal continuous power out. Kinetix 6000 multi-axis servo drives provide Integrated Motion through the Sercos interface and are compatible with Kinetix 6200 drives; target applications include packaging, material handling, converting and assembly. The operating ambient temperature is 0…50 °C.
Technical reference
| Product name | Allen-Bradley 2094-BM05-S Kinetix 6000 400 V Axis Module with STO |
|---|---|
| Brand | Allen-Bradley |
| Model | 2094-BM05-S |
| Category | Servo Systems |
| Approximate weight | 4.98 kg |
| Module capacitance | 1175 microfarads |
| Product type | Kinetix 6000 axis module |
| Motion communication | Sercos fiber-optic interface |
| PWM switching frequency | 4 kHz |
| Drive voltage class | 400 V class |
| Safe torque-off function | Included; requires the specified safety wiring and validated application |
| Energy absorption capacity | 152 J |
| Nominal DC bus input | 650 V DC |
| Nominal continuous inverter output power | 22.0 kW nominal; observe low-speed current derating |
| Continuous inverter output current | 34.6 A rms; high-speed rating, derate below 5 Hz electrical output frequency |
