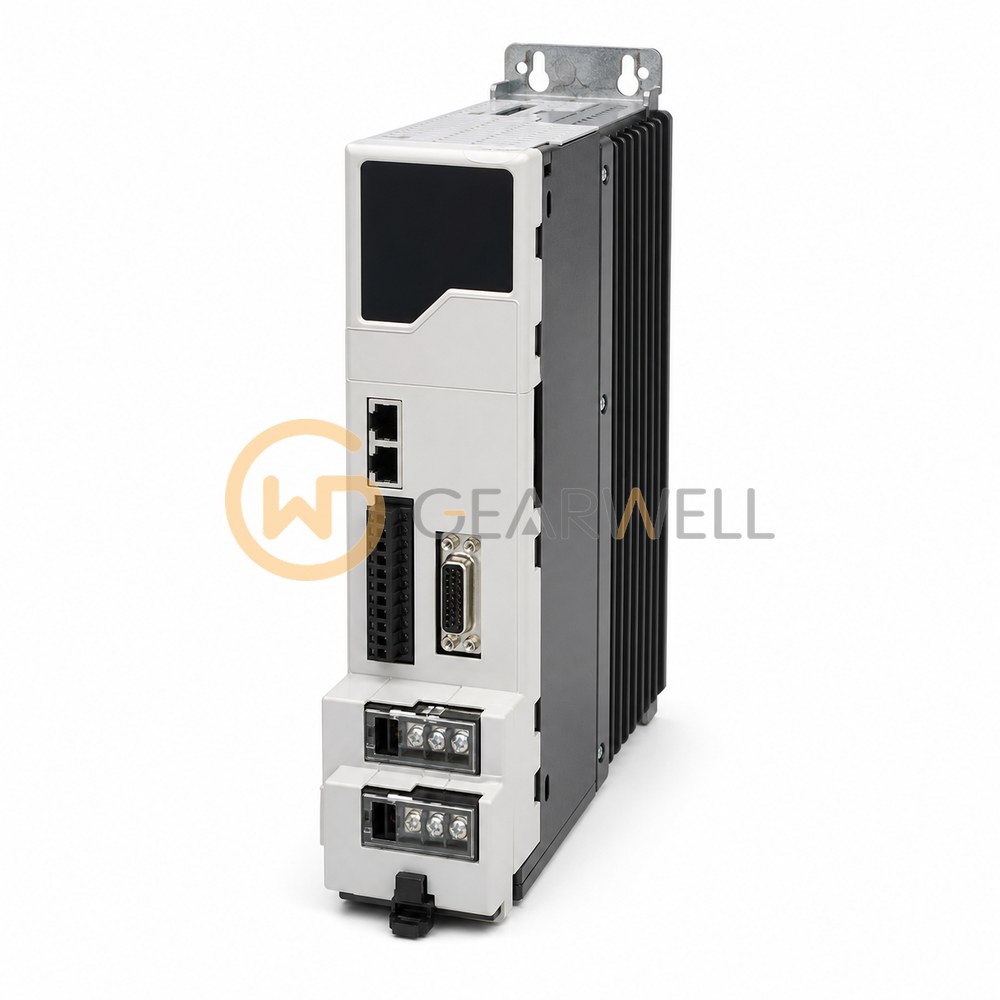

Allen-Bradley 2094-BM03-S Kinetix 6000 400 V Axis Module with STO
- Brand
- Allen-Bradley
- Model
- 2094-BM03-S
- GEARWELL SKU
- GWP-000000452
- Category
- Servo Systems
Key specifications
- Product type
- Kinetix 6000 axis module
- Motion communication
- Sercos fiber-optic interface
- Catalog number
- 2094-BM03-S
- Safe torque-off function
- Included; requires the specified safety wiring and validated application
- Manufacturer lifecycle status (2026-10-09)
- Discontinued
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2094-BM03-S is a Kinetix 6000 axis module from Rockwell's Kinetix servo drive family. It is a 400V-class inverter that runs from the 650V DC bus of the power rail, rated 21.2 A rms continuous and 31.8 A rms peak (series A) or 53.0 A rms in peak-enhanced mode (series B or later) output current, with 13.5 kW nominal continuous power out. Kinetix 6000 multi-axis servo drives provide Integrated Motion through the Sercos interface and are compatible with Kinetix 6200 drives; target applications include packaging, material handling, converting and assembly. The operating ambient temperature is 0…50 °C.
Technical reference
| Product name | Allen-Bradley 2094-BM03-S Kinetix 6000 400 V Axis Module with STO |
|---|---|
| Brand | Allen-Bradley |
| Model | 2094-BM03-S |
| Category | Servo Systems |
| Product type | Kinetix 6000 axis module |
| Motion communication | Sercos fiber-optic interface |
| Catalog number | 2094-BM03-S |
| Safe torque-off function | Included; requires the specified safety wiring and validated application |
| Manufacturer lifecycle status (2026-10-09) | Discontinued |
| Nominal DC bus input | 650 V DC |
| Product description | 400 V-class axis inverter, 21.2 A rms continuous output, 13.5 kW nominal; safe torque-off. Continuous current is a high-speed rating; derating applies at constant velocity below 5 Hz electrical output frequency. |
| Nominal continuous inverter output power | 13.5 kW nominal; observe low-speed current derating |
| Continuous inverter output current | 21.2 A rms; high-speed rating, derate below 5 Hz electrical output frequency |
