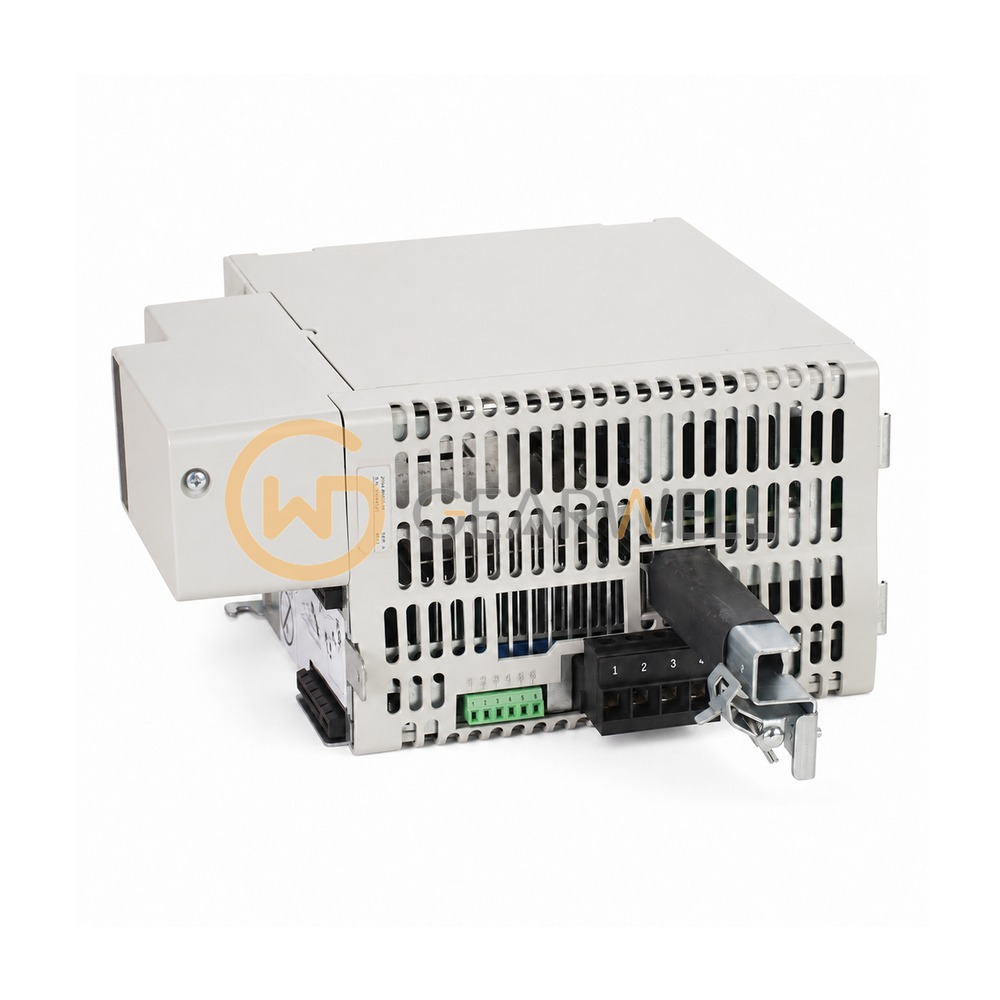

Allen-Bradley 2094-BM05-M Axis Power Module
- Brand
- Allen-Bradley
- Model
- 2094-BM05-M
- GEARWELL SKU
- GWP-000003058
- Category
- Servo Systems
Key specifications
- Voltage
- 460 V
- Inverter current
- 45 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2094-BM05-M is a Kinetix 6200 / 6500 axis module from Rockwell's Kinetix servo drive family. It is a 400V-class inverter that runs from the 650V DC bus of the power rail, rated 34.6 A rms continuous and 69.2 A rms peak output current, with 22.0 kW nominal continuous power out. Kinetix 6200 (Sercos interface) and Kinetix 6500 (Integrated Motion on EtherNet/IP) are modular drives whose control module sets the network and safety function, from Safe Torque Off to Safe Speed Monitor. The operating ambient temperature is 0…50 °C.
Technical reference
| Product name | Allen-Bradley 2094-BM05-M Axis Power Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 2094-BM05-M |
| Category | Servo Systems |
| Voltage | 460 V |
| Inverter current | 45 A |
