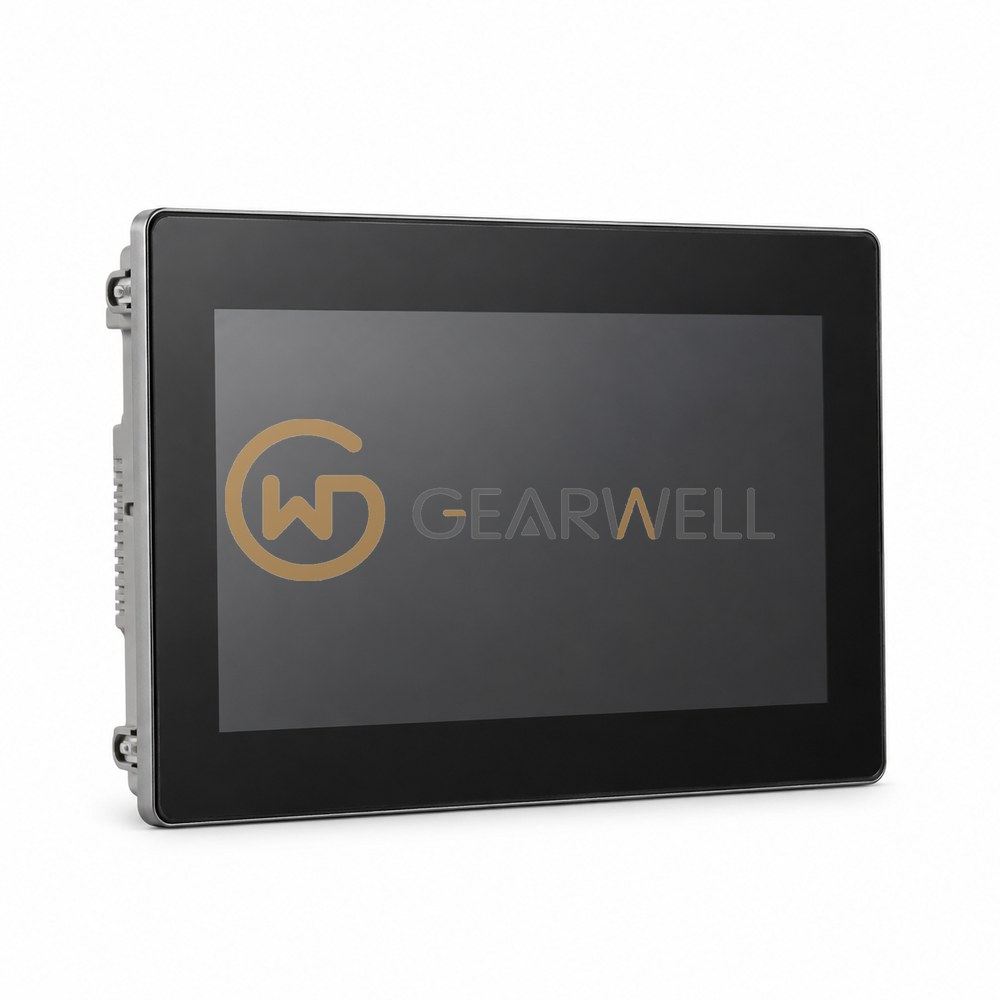

Weintek MT8106IP HMI
- Brand
- Weintek
- Model
- MT8106IP
- GEARWELL SKU
- GWP-000002941
- Category
- Industrial Automation Parts
Key specifications
- Memory
- 256 MB flash and 128 MB RAM
- Display
- 10.1-inch wide-view TFT
- Processor
- Quad-core RISC
- Resolution
- 1024 × 600
- Input power
- 24 V DC ±20%
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Weintek MT8106iP is a 10.1-inch iP series operator panel with a 1024 x 600 wide viewing angle (WVA) LCD rated 350 cd/m2 and 89 degrees in every direction, plus a 4-wire resistive touch screen. It uses a dual-core RISC processor with 256 MB flash, 128 MB RAM and a built-in RTC, and is fanless. Ports are one USB 2.0 host, one 10/100 Base-T Ethernet and COM1 RS-232, COM2 RS-485 2W/4W and COM3 RS-485 2W or RS-232 2W on two D-sub connectors. Power is 24±20% VDC with built-in isolation, the front panel is NEMA4 / IP65, operating temperature is 0 to 55°C, and the 271 x 213 x 36.4 mm housing fits a 260 x 202 mm cutout. Projects are created in EasyBuilder Pro.
Technical reference
| Product name | Weintek MT8106IP HMI |
|---|---|
| Brand | Weintek |
| Model | MT8106IP |
| Category | Industrial Automation Parts |
| Memory | 256 MB flash and 128 MB RAM |
| Display | 10.1-inch wide-view TFT |
| Processor | Quad-core RISC |
| Resolution | 1024 × 600 |
| Input power | 24 V DC ±20% |
| Touch panel | 4-wire resistive |
| Product type | 10.1-inch HMI operator panel |
| Front protection | NEMA 4 / IP65 compliant |
