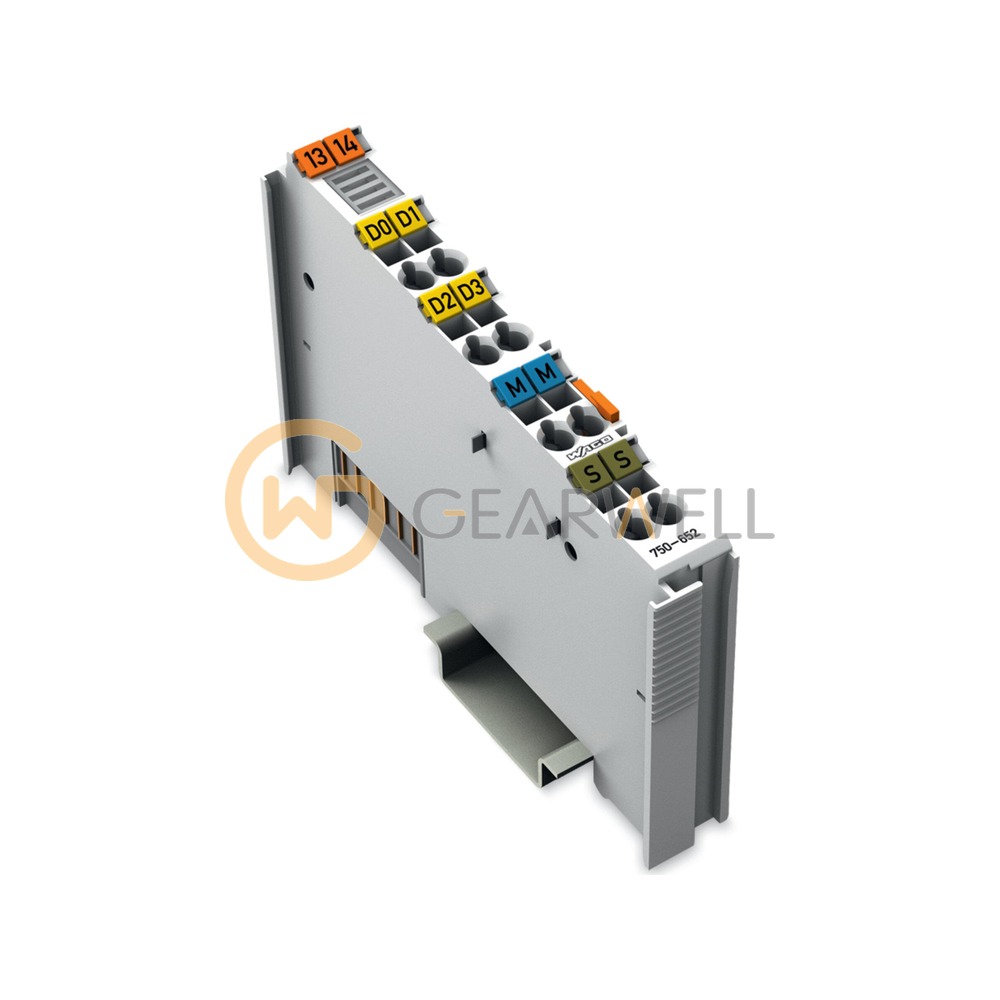

WAGO 750-652 I/O System 750 RS-232/RS-485 Serial Interface Module
- Brand
- WAGO
- Model
- 750-652
- GEARWELL SKU
- GWP-000010098
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Buffer
- 2560-byte input / 512-byte output
- Line length
- RS-485/-422: approx. 1000 m (max.) twisted pair, RS-232: 40 m (max.)
- Signal type
- RS-232; RS-422 / RS-485
- Transmission rate
- 300 Bd … 115.2 kBd
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-652 is a configurable serial interface module of the WAGO I/O System 750 for RS-232 and RS-422 / RS-485. It transmits over 1 TxD / 1 RxD in full-duplex or half-duplex mode at 300 Bd … 115.2 kBd, with None/Odd/Even parity, 7/8 data bits and 1/2 stop bits, and has a 2560-byte input / 512-byte output buffer. Process data width is parameterizable at 46, 22 or 6 bytes of input/output plus 2-byte control/status. The field side takes 24 VDC via power jumper contacts, the module draws 85 mA from the system supply and has 500 V system/field isolation. It has fixed wiring, works at 0 … +55 °C and measures (12 x 100 x 67.8) mm W x H x D.
Technical reference
| Product name | WAGO 750-652 I/O System 750 RS-232/RS-485 Serial Interface Module |
|---|---|
| Brand | WAGO |
| Model | 750-652 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Buffer | 2560-byte input / 512-byte output |
| Line length | RS-485/-422: approx. 1000 m (max.) twisted pair, RS-232: 40 m (max.) |
| Signal type | RS-232; RS-422 / RS-485 |
| Transmission rate | 300 Bd … 115.2 kBd |
| Supply voltage (field) | 24 VDC |
