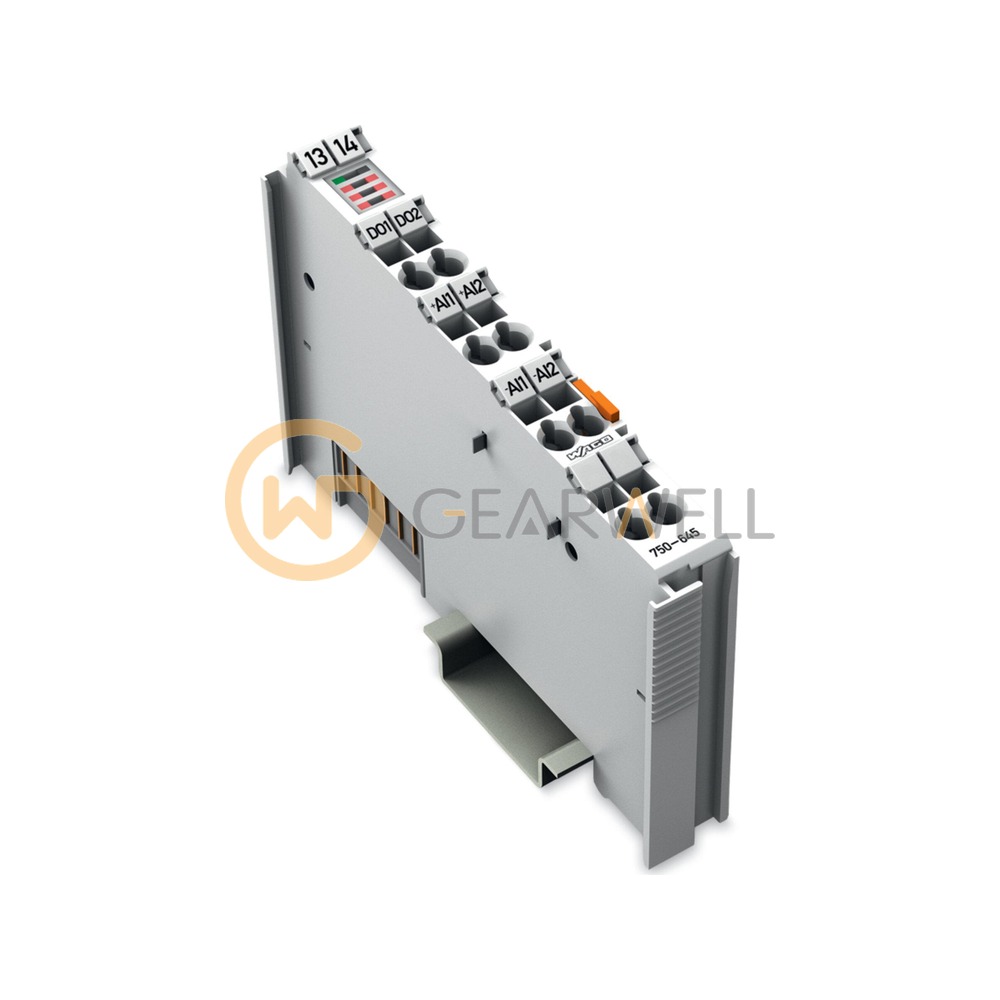

WAGO 750-645 I/O System 750 Vibration Monitoring Module

Product overview

The WAGO 750-645 is a vibration monitoring module of the WAGO I/O System 750 that records vibration velocity and roller bearing condition on two channels for online machine monitoring. It measures oscillating velocity (RMS) of 0 … 100 mm/s and shock impulses (SPM) of -10 … +80 dbSV using an acceleration sensor, with alarm and warning thresholds that can be set via the process image and engineering software. Two digital outputs at 24 VDC, 0.5 A per channel and short-circuit-protected, signal system OK and alarm. The field side takes 24 VDC (-15 … +20 %) via power jumper contacts, the module draws 30 mA from the system supply and has 500 V system/field isolation. It works at 0 … +55 °C and measures (12 x 100 x 67.8) mm W x H x D.
