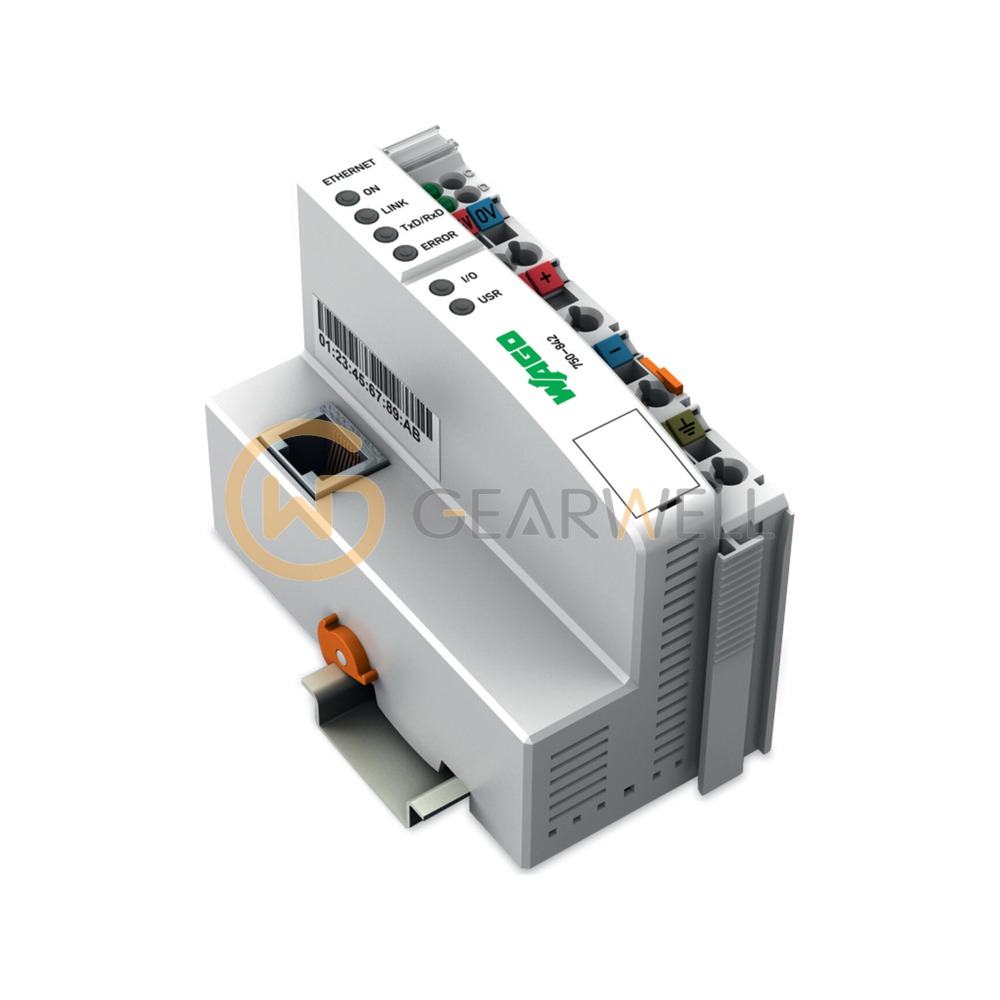

WAGO 750-842 I/O System 750 ETHERNET Programmable Fieldbus Controller
- Brand
- WAGO
- Model
- 750-842
- GEARWELL SKU
- GWP-000010100
- Category
- PLCs & I/O
Key specifications
- CPU
- 16 bits
- Width
- 50.5 mm / 1.988 inches
- Communications
- Modbus (TCP, UDP); ETHERNET
- Program memory
- 128 KB
- Transmission rate
- 10 Mbit/s
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-842 is a programmable ETHERNET TCP/IP fieldbus controller for the WAGO I/O System 750, programmed with WAGO-I/O-PRO CAA in the IEC-61131-3 languages AWL, KOP, FUP, ST and AS. It connects over RJ-45 at 10 Mbit/s and supports MODBUS/TCP (UDP), HTTP and BootP, with input and output process images of max 512 Byte each. It has 128 kByte of program memory, 64 kByte of data memory and 8 kByte of remanent memory. It is powered with DC 24 V (-25 % ... +30 %), supplies a total current of 1800 mA at 5 V for the I/O modules and carries max. DC 10 A on the power jumper contacts. It operates at 0 °C … 55 °C and measures 51 mm wide, 65 mm high from the upper edge of the DIN 35 rail and 100 mm long, at 197 g.
Technical reference
| Product name | WAGO 750-842 I/O System 750 ETHERNET Programmable Fieldbus Controller |
|---|---|
| Brand | WAGO |
| Model | 750-842 |
| Category | PLCs & I/O |
| CPU | 16 bits |
| Width | 50.5 mm / 1.988 inches |
| Communications | Modbus (TCP, UDP); ETHERNET |
| Program memory | 128 KB |
| Transmission rate | 10 Mbit/s |
| Supply voltage (system) | 24 VDC, SELV/PELV (-25 … +30 %) |
| Number of modules per node (max.) | 64 |
