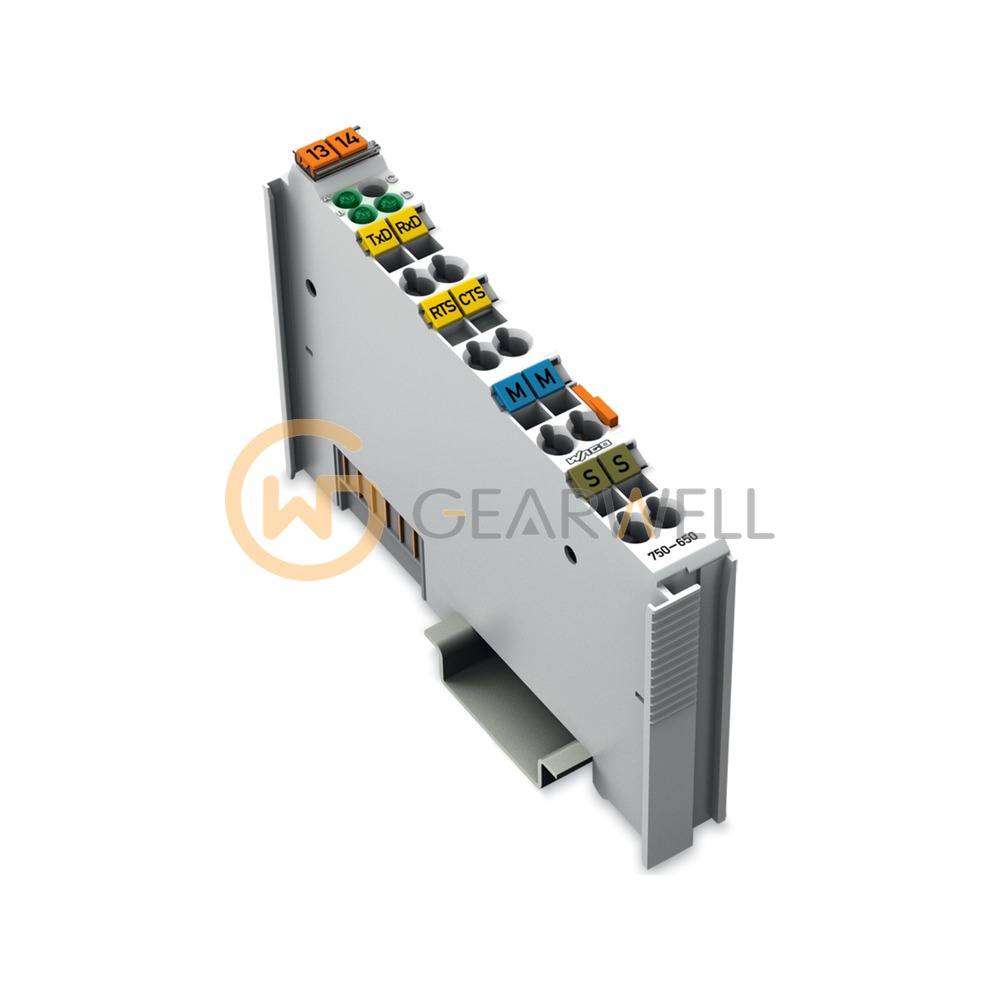

WAGO 750-650 I/O System 750 RS-232 Serial Interface Module
- Brand
- WAGO
- Model
- 750-650
- GEARWELL SKU
- GWP-000010096
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Buffer
- 120-byte input / 16-byte output
- Signal type
- RS-232
- Transmission rate
- 9.6 kBd
- Number of data bits
- 8
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-650 is an RS-232 C serial interface module of the WAGO I/O System 750 with fixed settings of 9600 baud. It has 1 TxD / 1 RxD full-duplex channel at 9.6 kBd with no parity, 8 data bits and 1 stop bit, and a 120-byte input / 16-byte output buffer. Data is exchanged as 1 x 24-bit input/output (3-byte user data) with 1 x 8-bit control/status. The module draws 55 mA from the system supply and has 500 V system/field isolation. It has fixed wiring, works at 0 … +55 °C and measures (12 x 100 x 69.8) mm W x H x D.
Technical reference
| Product name | WAGO 750-650 I/O System 750 RS-232 Serial Interface Module |
|---|---|
| Brand | WAGO |
| Model | 750-650 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Buffer | 120-byte input / 16-byte output |
| Signal type | RS-232 |
| Transmission rate | 9.6 kBd |
| Number of data bits | 8 |
| Transmission channels | 1 TxD / 1 RxD, full-duplex |
