WAGO 750-671 Stepper Controller
- Brand
- WAGO
- Model
- 750-671
- GEARWELL SKU
- GWP-000002854
- Category
- Industrial Automation Parts
Key specifications
- Isolation
- 500 V system/field
- Input filter
- 100 µs, software filter can be connected
- Input current (typ.)
- 2.8 mA
- Number of outputs
- 1 stepper motor (2 phases/bipolar)
- Number of digital inputs
- 2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

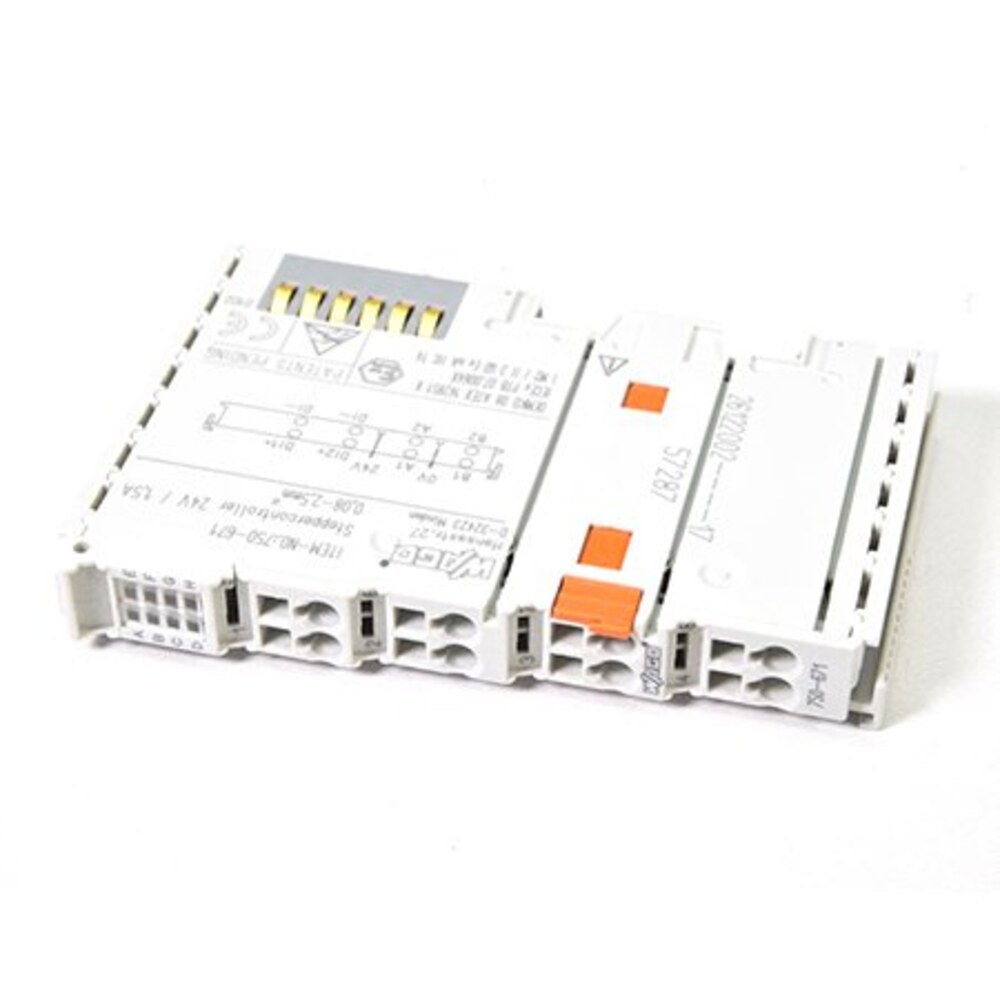

The WAGO 750-671 is a stepper controller of the WAGO I/O System 750 with an on-board power driver for 2-phase bipolar stepper motors. It supplies up to 2 x 1.5 A peak value (1 A rms) to one motor at a maximum full-step frequency of 7812 Hz, with a resolution of 15 bits + 16 bit prescaler and a stepper resolution of 23 bits + sign bit. Two digital inputs (15 … 30 VDC for signal 1, 100 µs filter) can be used for start/stop, limit switches or reference cams. The field side takes 24 VDC (-25 … +30 %) via power jumper contacts, the module draws 85 mA from the system supply, exchanges 12-byte input/output data and has 500 V system/field isolation. It works at 0 … +55 °C and measures (12 x 100 x 67.8) mm W x H x D.
Technical reference
| Product name | WAGO 750-671 Stepper Controller |
|---|---|
| Brand | WAGO |
| Model | 750-671 |
| Category | Industrial Automation Parts |
| Isolation | 500 V system/field |
| Input filter | 100 µs, software filter can be connected |
| Input current (typ.) | 2.8 mA |
| Number of outputs | 1 stepper motor (2 phases/bipolar) |
| Number of digital inputs | 2 |
| Current consumption (system supply) | 85 mA |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
