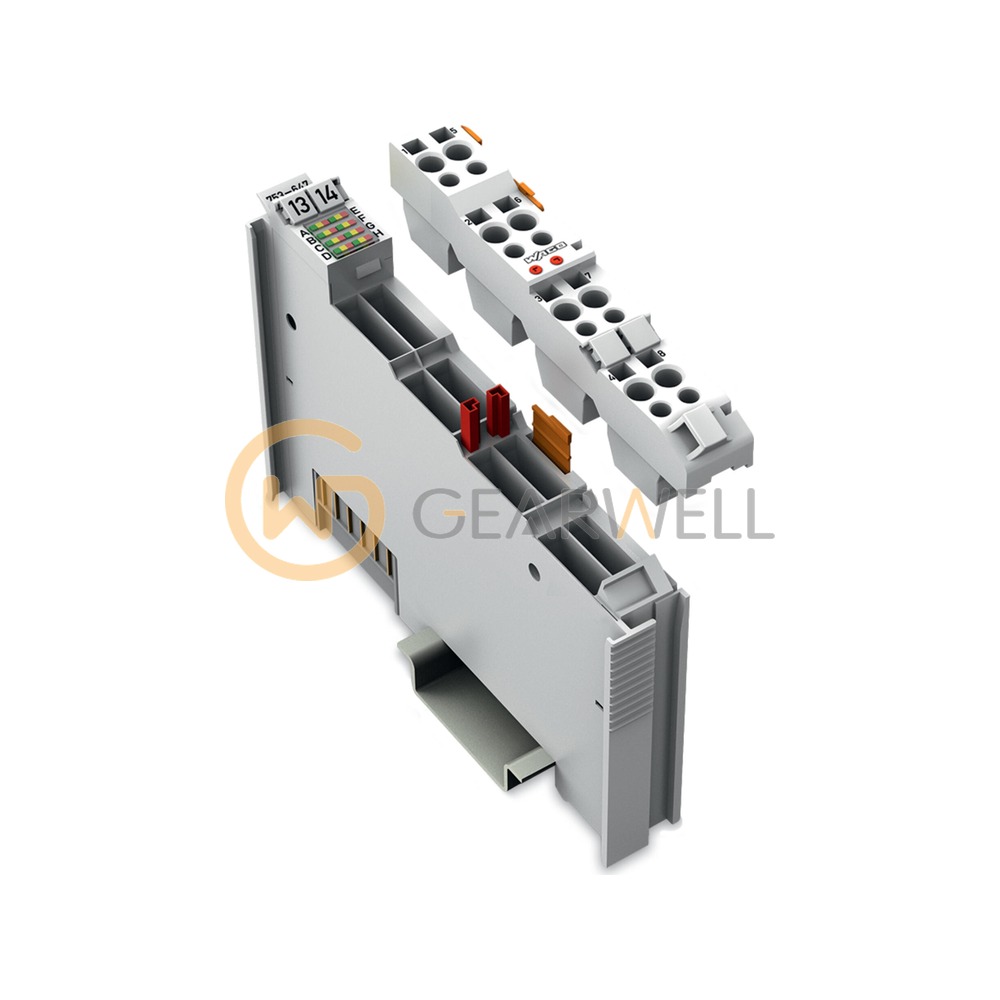

WAGO 753-647 WAGO I/O System 750/753 DALI Multi-Master Module
- Brand
- WAGO
- Model
- 753-647
- GEARWELL SKU
- GWP-000012153
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm
- Isolation
- 2100 VDC DALI bus/local bus
- Supply voltage
- DALI: 18 V (external)
- Protection type
- IP20
- Transmission channel
- 1
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 753-647 is a DALI multi-master module of the WAGO I/O System 750 in the 753 version with a pluggable connector, for DALI lighting networks to DALI-2 (DIN IEC 62386). It addresses 64 control gears plus 64 control devices, and each control gear can be assigned to 16 groups and 16 scenes. The DALI bus needs an 18 V external supply, for which the catalog names the 753-620 DC/DC converter or the 787-2857 power supply. The module is used with programmable fieldbus controllers, draws 85 mA from the system supply, exchanges 24-byte data and has 2100 VDC DALI bus/local bus isolation. It works at 0 … +55 °C and measures (12 x 100 x 69) mm W x H x D.
Technical reference
| Product name | WAGO 753-647 WAGO I/O System 750/753 DALI Multi-Master Module |
|---|---|
| Brand | WAGO |
| Model | 753-647 |
| Category | PLCs & I/O |
| Width | 12 mm |
| Isolation | 2100 VDC DALI bus/local bus |
| Supply voltage | DALI: 18 V (external) |
| Protection type | IP20 |
| Transmission channel | 1 |
| Supply voltage (system) | 5 VDC; via data contacts |
| Guaranteed supply current | 200 mA |
| Ambient temperature (operation) | 0 … +55 °C |
