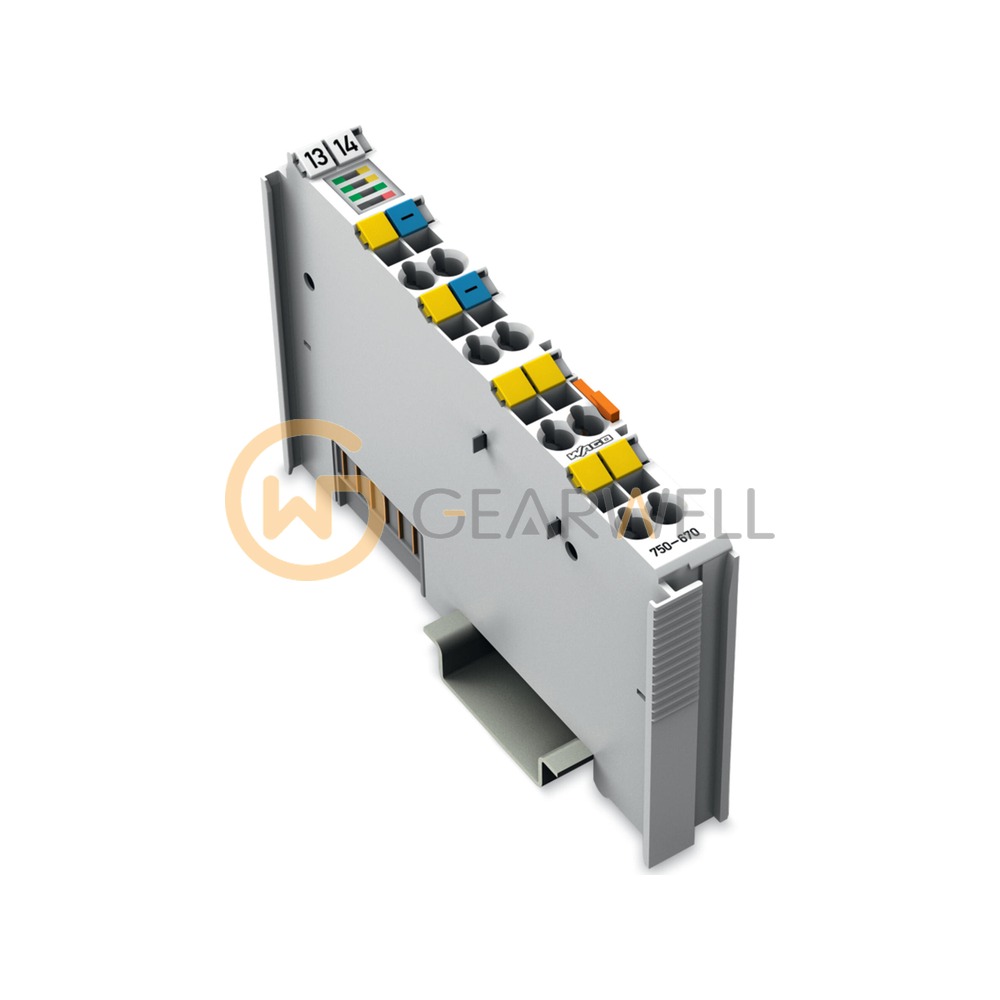

WAGO 750-670 I/O System 750 Stepper Controller Module

Product overview

The WAGO 750-670 is a stepper controller of the WAGO I/O System 750 that drives external stepper power sections through a pulse/direction interface. It has 1 channel with 2 differential outputs (A1, A2, B1, B2) for RS-422, TTL or optocoupler loads, with 5 VDC internal or 5 … 24 VDC external signal voltage and 0.03 A per channel, short-circuit-protected. Resolution is 15 bits + 16 bit prescaler with a stepper resolution of 23 bits + sign bit, and two digital inputs (15 … 30 VDC for signal 1) can be used for start/stop, limit switches or reference cams. The field side takes 24 VDC (-25 … +30 %), the module draws 98 mA from the system supply, exchanges 12-byte input/output data and has 500 V system/field isolation. It works at 0 … +55 °C and measures (12 x 100 x 67.8) mm W x H x D.
