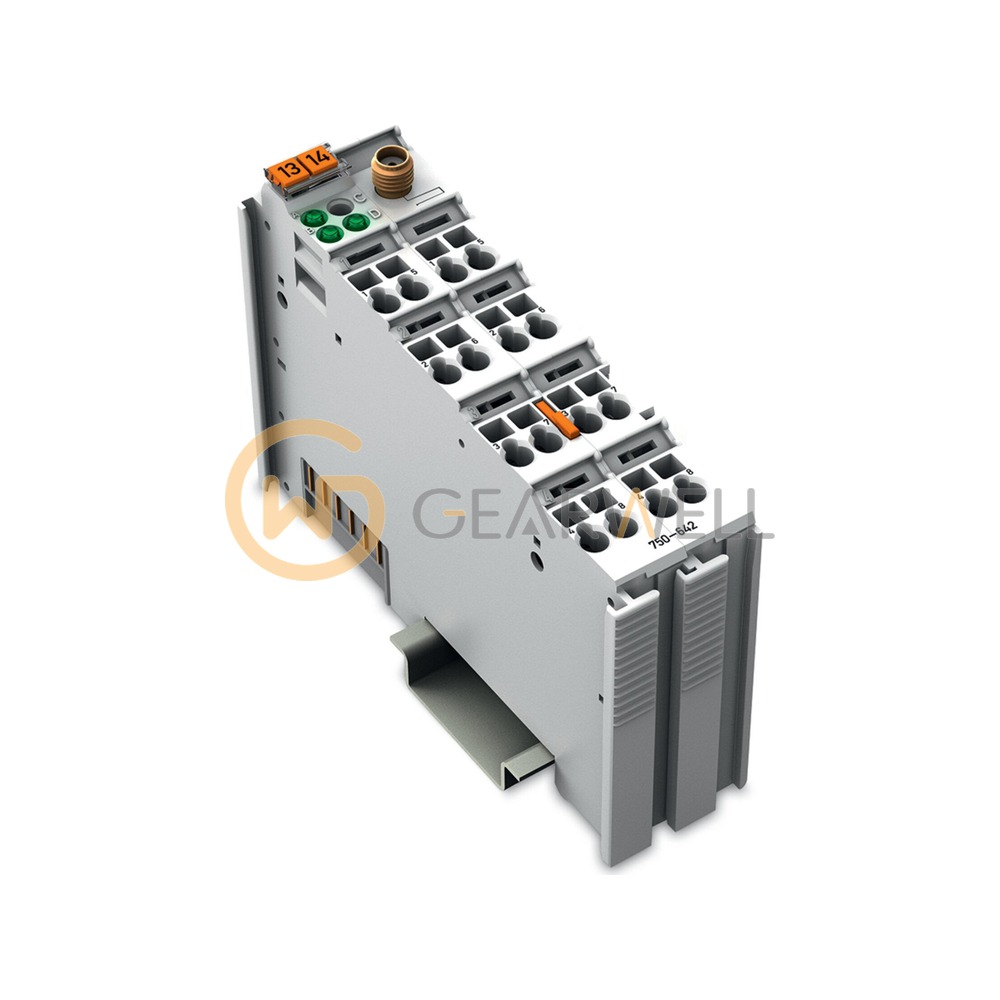

WAGO 750-642 I/O System 750 EnOcean Radio Receiver Module

Product overview

The WAGO 750-642 is an EnOcean radio receiver module of the WAGO I/O System 750 that receives telegrams from EnOcean radio sensors in the 868.3 MHz band and passes them unchanged to the application. Its range is approx. 300 m in the open and approx. 30 m within buildings, and the manual gives around 100 sensors as the practical maximum per module. The antenna connects to an SMA socket on the front, the module is receive only and uses 3 byte data with 1 x 8 bit control/status, and it draws less than 80mA internally. Isolation is 500 V antenna connection/system, and the module has no power jumper contacts. It measures 24 x 64 x 100 mm (W x H x L, height from the upper edge of the carrier rail), weighs 85 g and has IP20 protection.
