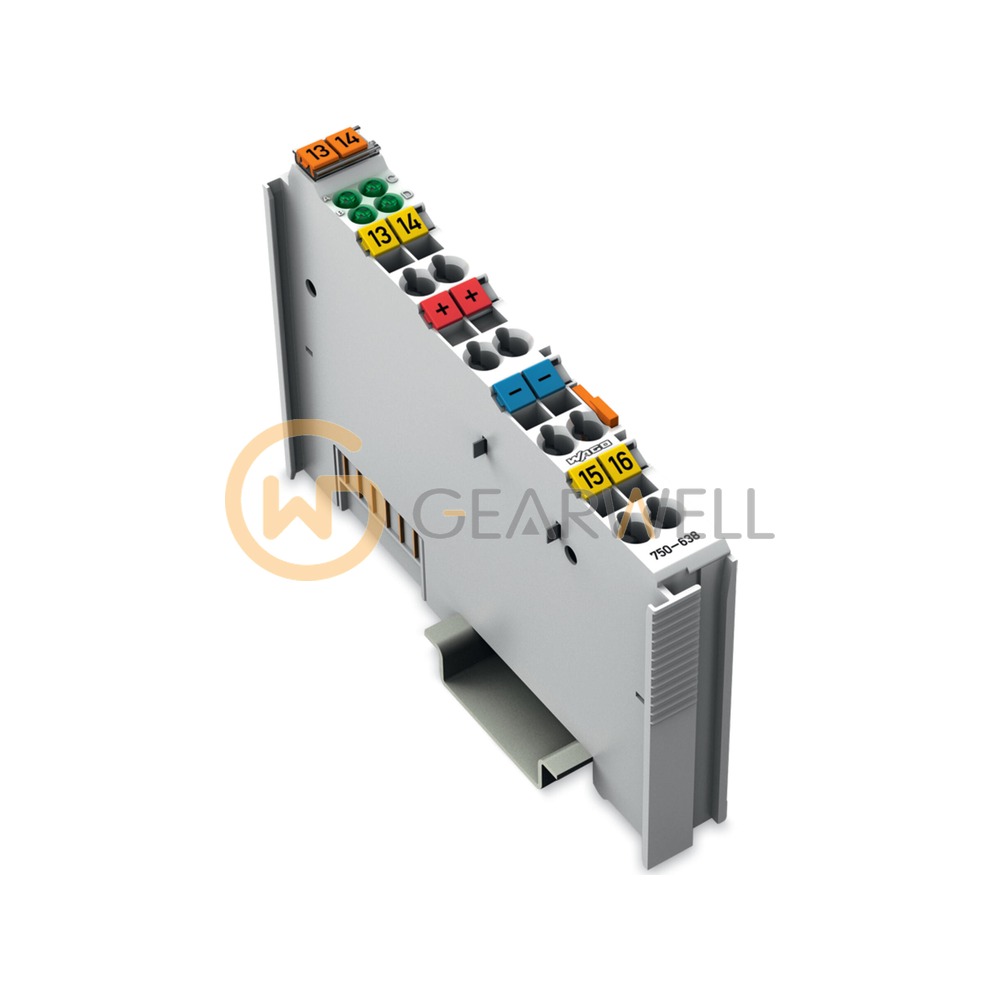

WAGO 750-638 I/O System 750 2-Channel Up/Down Counter Module
- Brand
- WAGO
- Model
- 750-638
- GEARWELL SKU
- GWP-000010090
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Input filter
- 0.2 ms
- Counter depth
- 16 Bit
- Number of counters
- 2
- Supply voltage (field)
- 24 VDC (-15 … +20 %)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-638 is a counter module of the WAGO I/O System 750 with two up/down counters of 16 bits each. The counter inputs accept signals per EN 61131 Type 1 (−3 … +5 VDC for signal 0, 15 … 30 VDC for signal 1) at up to 500 Hz with a minimum pulse width of 1 ms. Data is exchanged as 2 x 16-bit data with 2 x 8-bit control/status, and the module draws 10 mA from the system supply. The field side takes 24 VDC (-15 … +20 %) via power jumper contacts, with 500 V system/field isolation. It has fixed wiring, works at 0 … +55 °C and measures (12 x 100 x 69.8) mm W x H x D.
Technical reference
| Product name | WAGO 750-638 I/O System 750 2-Channel Up/Down Counter Module |
|---|---|
| Brand | WAGO |
| Model | 750-638 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Input filter | 0.2 ms |
| Counter depth | 16 Bit |
| Number of counters | 2 |
| Supply voltage (field) | 24 VDC (-15 … +20 %) |
| Switching frequency (max.) | 500 Hz |
