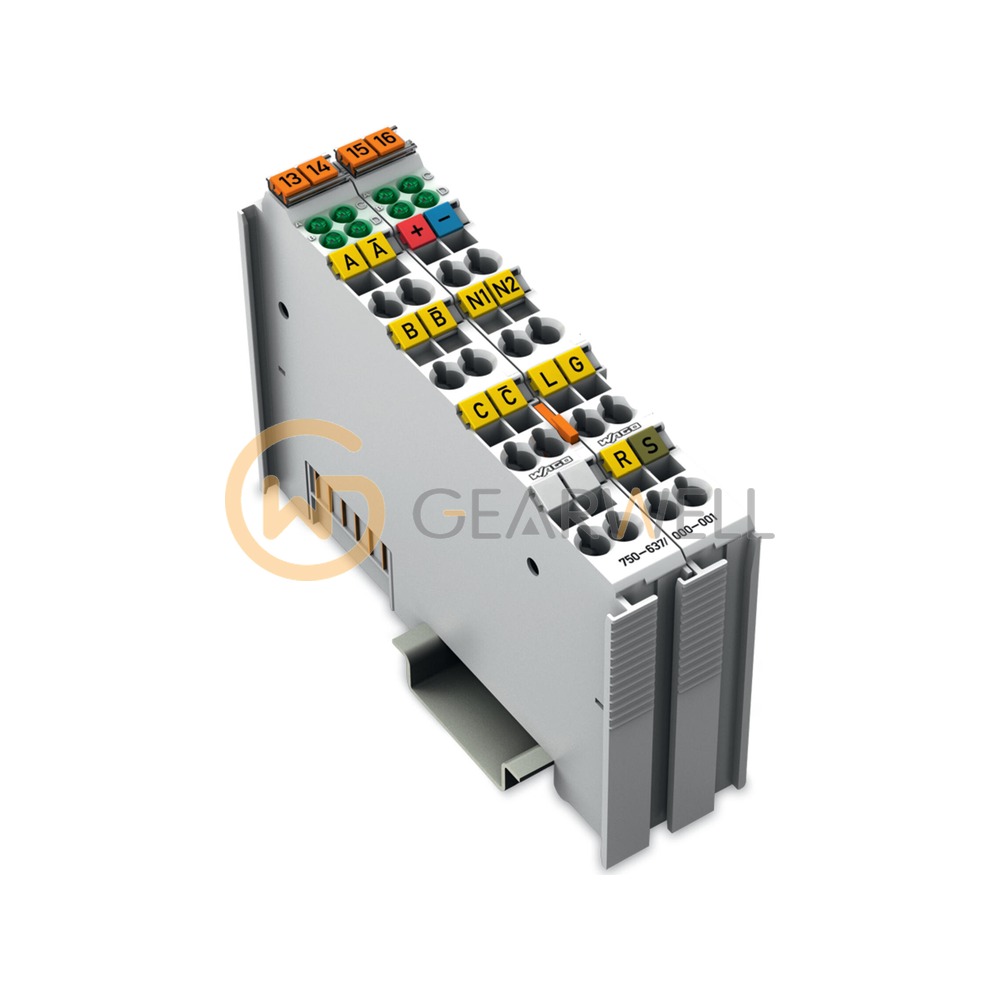

WAGO 750-637/000-001 Incremental Encoder Interface Module
- Brand
- WAGO
- Model
- 750-637/000-001
- GEARWELL SKU
- GWP-000010089
- Category
- PLCs & I/O
Key specifications
- Width
- 24 mm / 0.945 inches
- Counter depth
- 32 Bit
- Limit frequency
- 250 kHz
- Encoder connection
- A; /A; B; /B; C; /C (differential inputs)
- Quadrature decoder
- 4x evaluation
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-637/000-001 is an incremental encoder interface of the WAGO I/O System 750 for encoders with 24 VDC differential signals A, /A, B, /B, C and /C. It counts with a 32-bit counter depth at a limit frequency of 250 kHz with 4x evaluation, and has latch, gate and reference inputs. The encoder is supplied with up to 300 mA, and a 24 VDC output rated 0.5 A is short-circuit-protected. The module draws 110 mA from the system supply and 35 mA from the field supply, exchanges 32-bit data with 2 x 8-bit control/status and has 500 V system/field isolation. It works at 0 … +55 °C and measures (24 x 100 x 69.8) mm W x H x D.
Technical reference
| Product name | WAGO 750-637/000-001 Incremental Encoder Interface Module |
|---|---|
| Brand | WAGO |
| Model | 750-637/000-001 |
| Category | PLCs & I/O |
| Width | 24 mm / 0.945 inches |
| Counter depth | 32 Bit |
| Limit frequency | 250 kHz |
| Encoder connection | A; /A; B; /B; C; /C (differential inputs) |
| Quadrature decoder | 4x evaluation |
| Supply current (encoder) max. | 300 mA |
