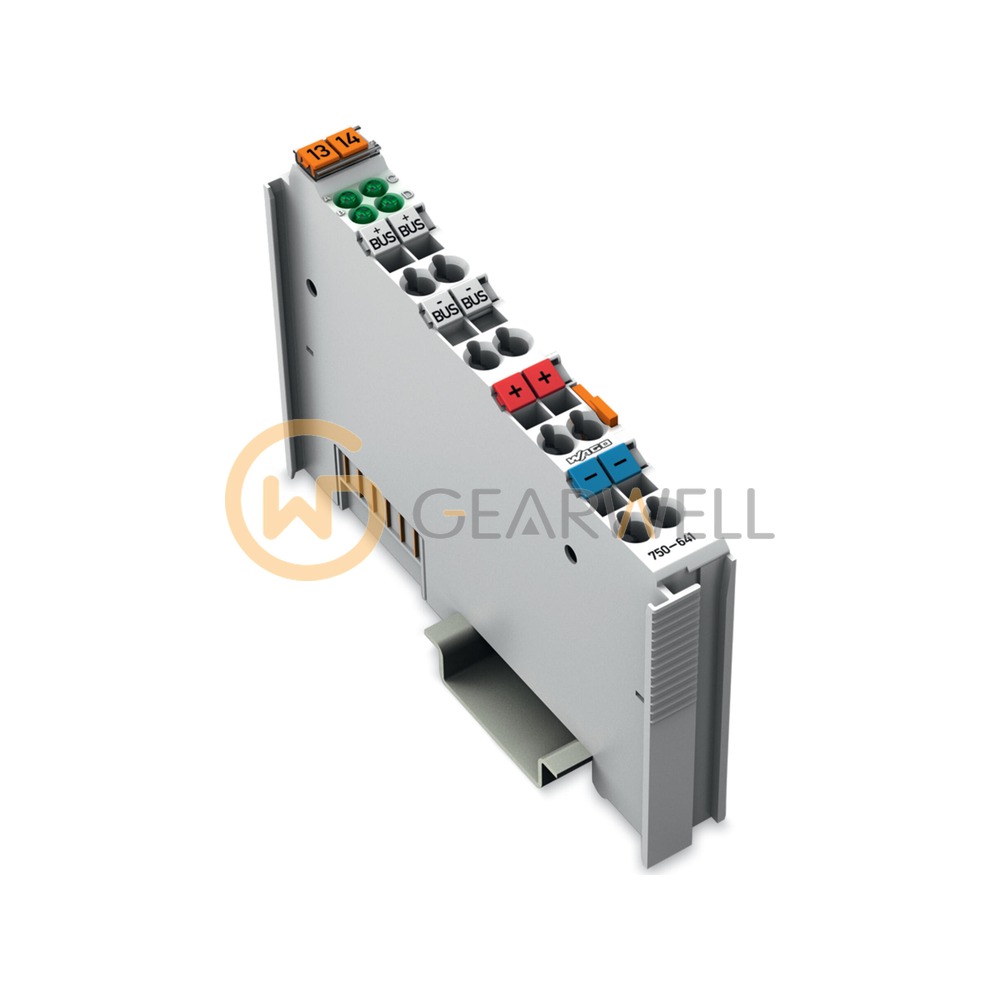

WAGO 750-641 I/O System 750 DALI/DSI Master Module
- Brand
- WAGO
- Model
- 750-641
- GEARWELL SKU
- GWP-000010092
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Topology
- Number of slaves (DALI): 64; Number of slaves (DSI): 100
- Isolation
- 1500 VDC DALI bus/Internal data bus
- Data width
- 1-byte C/S, 5-byte data
- Supply voltage
- DALI/DSI: 18 V (external)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-641 is a DALI/DSI master module of the WAGO I/O System 750 for digital control of electronic ballasts in lighting applications, to DIN IEC 60929 for DALI and the TRIDONIC ATCO DSI specification. It handles up to 64 DALI slaves or 100 DSI slaves on one transmission channel, and each DALI slave can be assigned to 16 groups or 16 scenes. The bus is supplied with 18 V through the 288-895 DC/DC converter, with a maximum current output of 200 mA and DC 1500 V isolation between the DALI bus and the internal bus. The module draws 30 mA internally, exchanges 1 x 40 bit (5 bytes data) with 1 x 8 bit control/status, and has no power jumper contacts. It measures 12 x 64 x 100 mm (W x H x L, height from the upper edge of the DIN rail), weighs about 60 g and has IP20 protection.
Technical reference
| Product name | WAGO 750-641 I/O System 750 DALI/DSI Master Module |
|---|---|
| Brand | WAGO |
| Model | 750-641 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Topology | Number of slaves (DALI): 64; Number of slaves (DSI): 100 |
| Isolation | 1500 VDC DALI bus/Internal data bus |
| Data width | 1-byte C/S, 5-byte data |
| Supply voltage | DALI/DSI: 18 V (external) |
| Device specification | DALI Specification: DIN IEC 60929 (VDE 0712 Part 23) only in connection with 288-895 |
