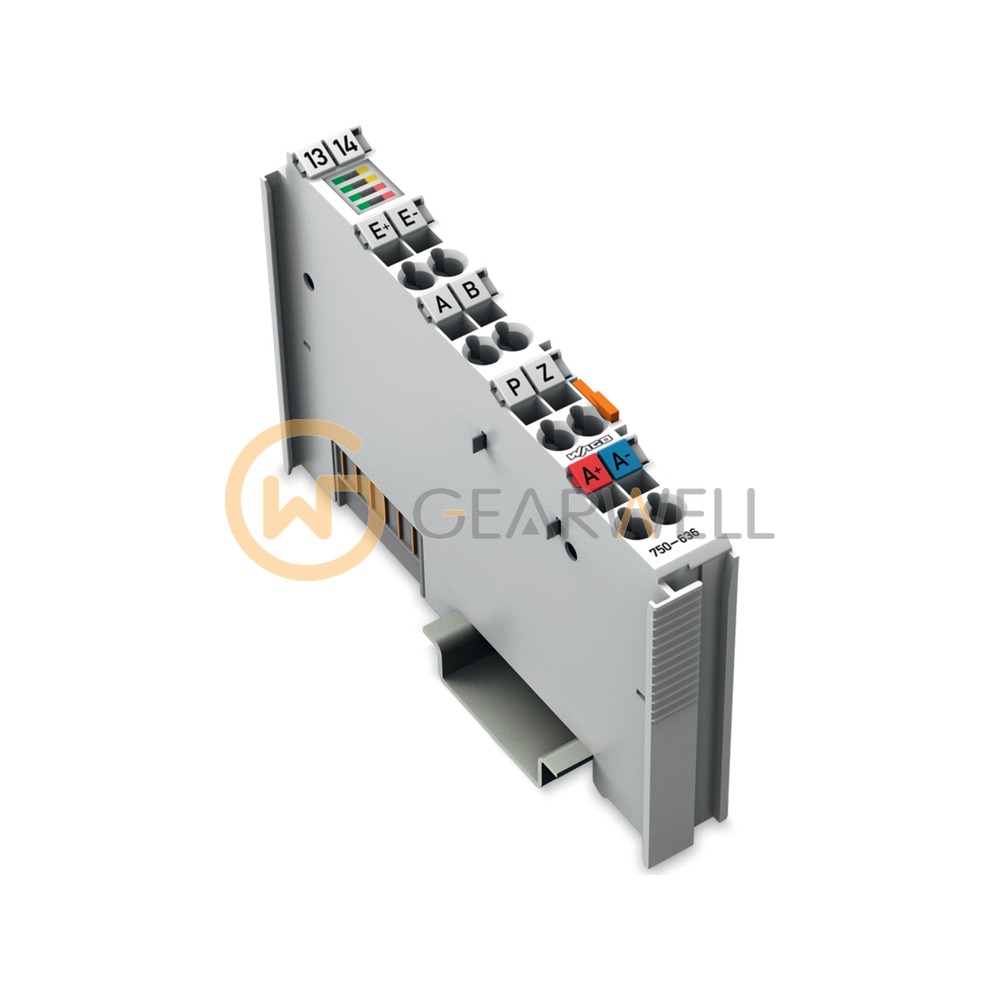

WAGO 750-636 I/O System 750 DC Drive Controller Module

Product overview

The WAGO 750-636 is a single-channel DC drive controller of the WAGO I/O System 750 for positioning 24 VDC motors with incremental position feedback. Its H-bridge output supplies 5 A (15 A / 500 ms), short-circuit-protected, at a PWM frequency of 20 kHz from a motor supply of 24 VDC (−20 … +15 %). Three 24 V digital inputs (Type 1) read the limit switches and a preset signal, and the encoder input takes A, B and zero signals at 5 … 24 VDC with 1x, 2x or 4x evaluation. Data is exchanged as a 32-bit set/actual value with 16-bit control or status, the module draws 55 mA from the system supply and has 500 V system/field isolation. It works at 0 … +55 °C and measures (12 x 100 x 67.8) mm W x H x D.
