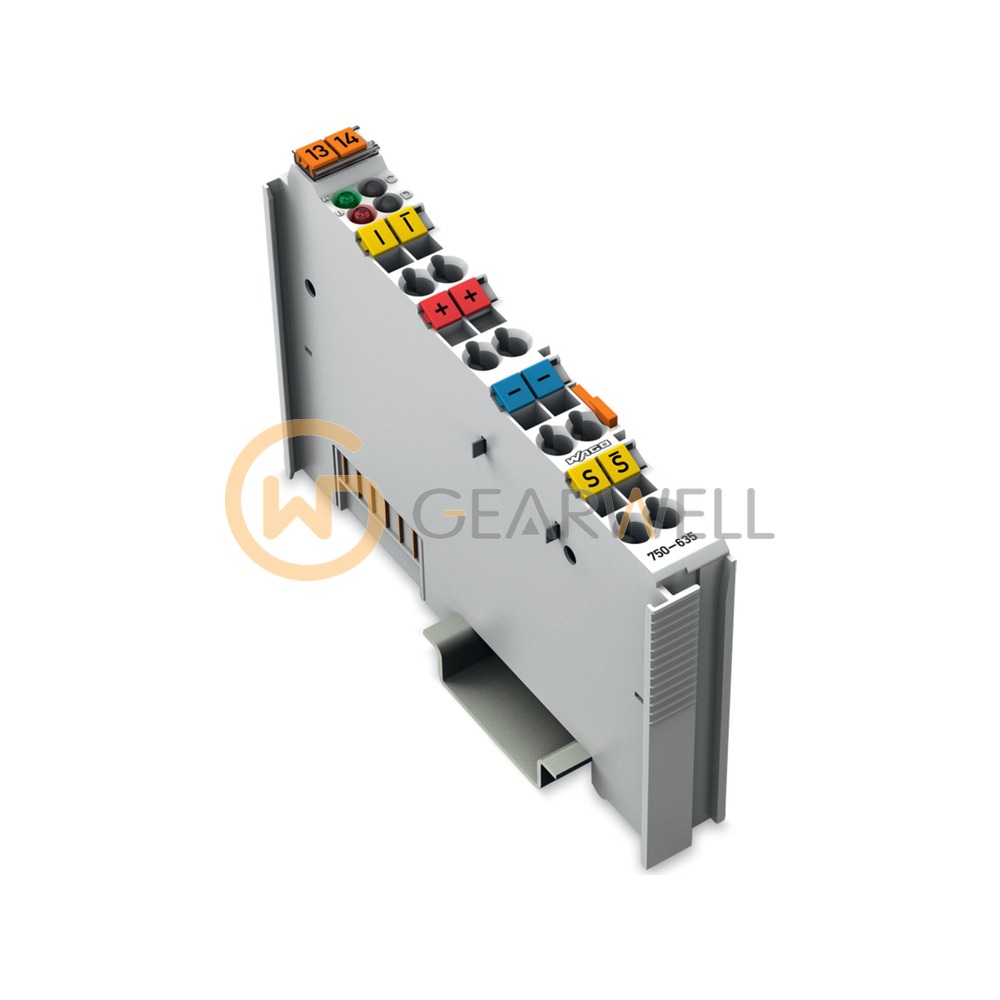

WAGO 750-635 I/O System 750 Digital Impulse Interface Module
- Brand
- WAGO
- Model
- 750-635
- GEARWELL SKU
- GWP-000010086
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Resolution
- 1 µm
- Signal type
- Differential signal (RS-422)
- Number of inputs
- 1
- Encoder connection
- Start/stop
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-635 is a digital impulse interface of the WAGO I/O System 750 for position sensors with a start/stop interface using RS-422 differential signals. It has one input with 1 µm resolution and an update time of 2 ms, supports a position sensor length of 4 m and cable lengths up to 500 m, and passes the position to the process image as 24-bit data with an 8-bit control/status byte. The field side takes 24 VDC (-15 … +20 %) via power jumper contacts, and the module draws 45 mA from the system supply with 500 V system/field isolation. It has fixed wiring, works at 0 … +55 °C and measures (12 x 100 x 69.8) mm W x H x D.
Technical reference
| Product name | WAGO 750-635 I/O System 750 Digital Impulse Interface Module |
|---|---|
| Brand | WAGO |
| Model | 750-635 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Resolution | 1 µm |
| Signal type | Differential signal (RS-422) |
| Number of inputs | 1 |
| Encoder connection | Start/stop |
| Update time (update rate) | 2 ms |
