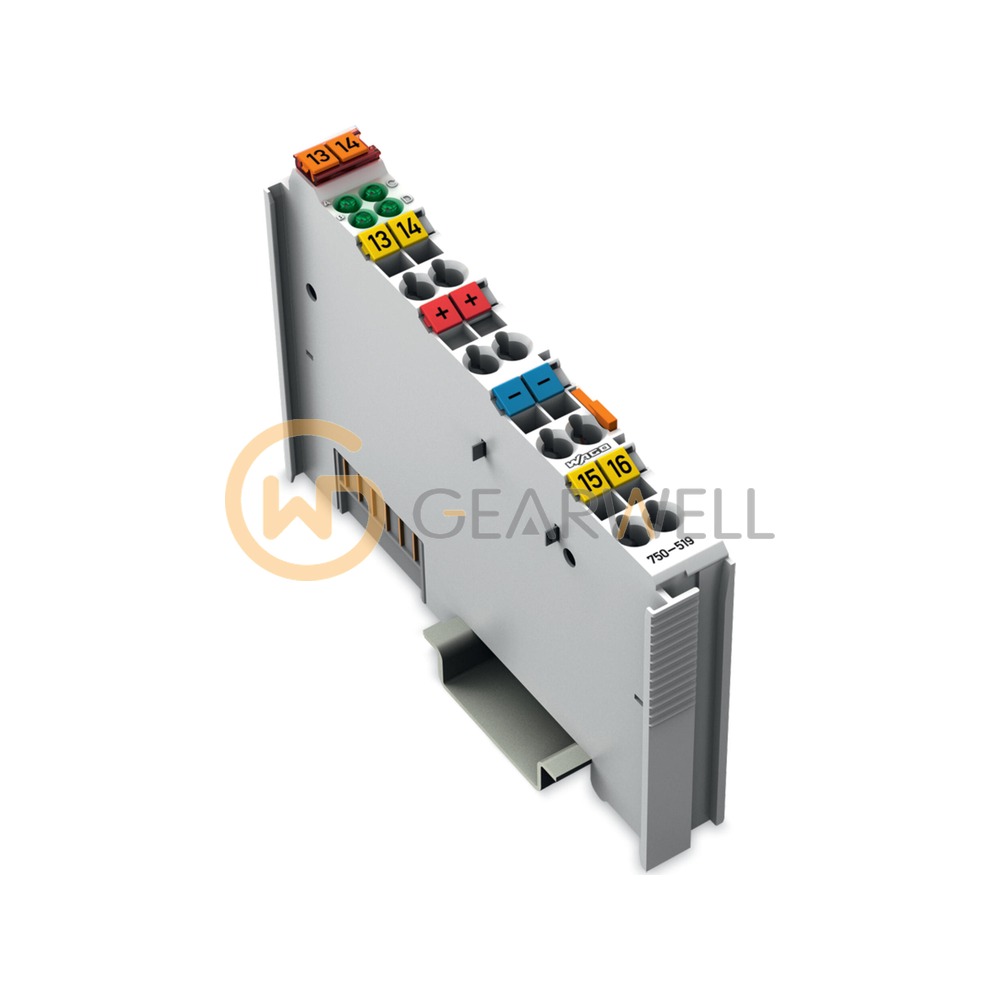

WAGO 750-519 I/O System 750 4-Channel Digital Output Module
- Brand
- WAGO
- Model
- 750-519
- GEARWELL SKU
- GWP-000010049
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Signal type (voltage)
- 5 VDC
- Supply voltage (field)
- 5 VDC
- Supply voltage (system)
- 5 VDC; via data contacts
- Number of digital outputs
- 4
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-519 is a 4-channel digital output module for 5 V signals in the WAGO I/O System 750, with short-circuit-protected, high-side switching outputs. Each output delivers 20 mA, with a switching rate of max. 5 kHz, for resistive, inductive and lamp loads. The field side takes DC 5 V via the power jumper contacts and draws typically 14 mA per module plus load, while the internal current consumption is max. 10 mA. Isolation between system and field is 500 V, the internal bit width is 4 bits out, and the module measures 12 x 64* x 100 mm (W x H x L).
Technical reference
| Product name | WAGO 750-519 I/O System 750 4-Channel Digital Output Module |
|---|---|
| Brand | WAGO |
| Model | 750-519 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Signal type (voltage) | 5 VDC |
| Supply voltage (field) | 5 VDC |
| Supply voltage (system) | 5 VDC; via data contacts |
| Number of digital outputs | 4 |
| Output current per channel | 0.02 A |
| Ambient temperature (operation) | 0 … +55 °C |
| Current carrying capacity (power jumper contacts) | 10 A |
