WAGO 750-523 I/O System 750 1-Channel Relay Output Module
- Brand
- WAGO
- Model
- 750-523
- GEARWELL SKU
- GWP-000010050
- Category
- PLCs & I/O
Key specifications
- Width
- 24 mm / 0.945 inches
- Supply voltage (field)
- 24 VDC (-25 … +30 %)
- Supply voltage (system)
- 5 VDC; via data contacts
- Switching current (max.)
- 16 A
- Switching voltage (max.)
- 440 VAC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

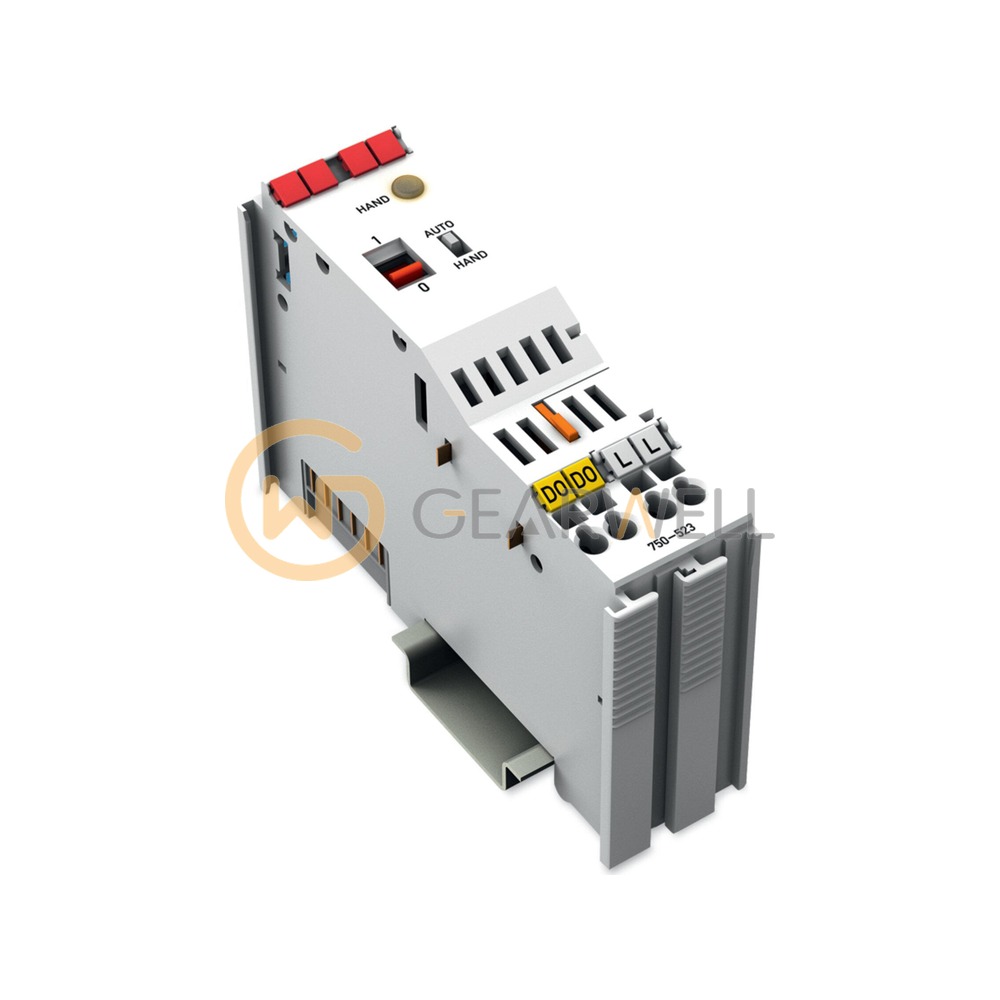

The WAGO 750-523 is a 1-channel relay output module of the WAGO I/O System 750 with one potential-free make contact rated for a maximum switching current of 16 A. A manual switch shows the relay state and can switch the output, and a manual/automatic selector sets the operating mode, which is indicated by an LED and status bits in the process image. The relay coil is driven from the 24 VDC field supply via the power jumper contacts (80 mA with no external load), and the module draws 5 mA from the system supply. It has 1500 V system/field isolation, operates at 0 … +55 °C and is (24 x 100 x 67.8) mm (W x H x D).
Technical reference
| Product name | WAGO 750-523 I/O System 750 1-Channel Relay Output Module |
|---|---|
| Brand | WAGO |
| Model | 750-523 |
| Category | PLCs & I/O |
| Width | 24 mm / 0.945 inches |
| Supply voltage (field) | 24 VDC (-25 … +30 %) |
| Supply voltage (system) | 5 VDC; via data contacts |
| Switching current (max.) | 16 A |
| Switching voltage (max.) | 440 VAC |
| Number of digital outputs | 1 |
| Ambient temperature (operation) | 0 … +55 °C |
| Current carrying capacity (power jumper contacts) | 10 A |
