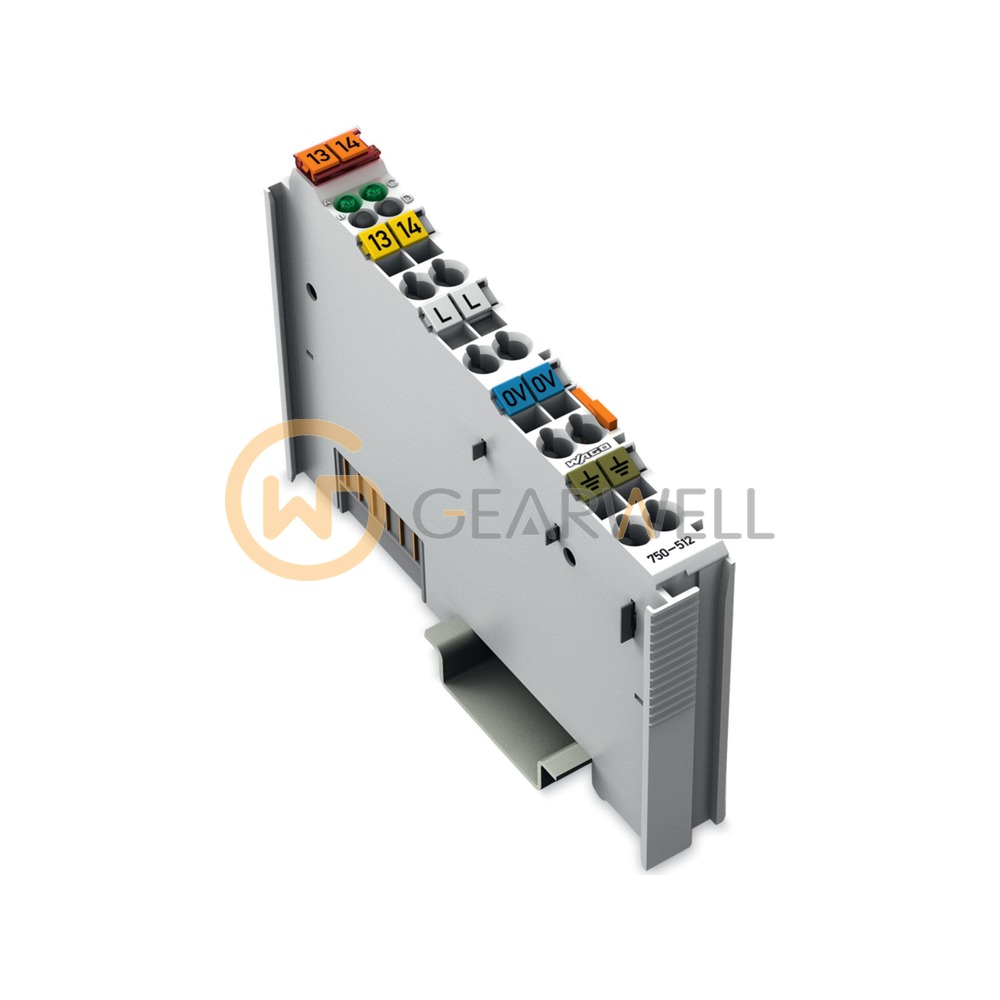

WAGO 750-512 I/O System 750 2-Channel Relay Output Module
- Brand
- WAGO
- Model
- 750-512
- GEARWELL SKU
- GWP-000010046
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Supply voltage (field)
- 250 VAC
- Supply voltage (system)
- 5 VDC; via data contacts
- Switching current (max.)
- 2 A
- Switching voltage (max.)
- 250 VAC, 30 VDC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-512 is a 2-channel relay output module for the WAGO I/O System 750 with 2 make contacts. Each contact switches up to 250 VAC/30 VDC and 2 A AC/DC, with a switching power of 500 VA/60 W and a minimum switching current of 10 mA / 5 VDC. Pull-in and drop-out times are max. 10 ms, the contacts are silver alloy, and isolation is 1.5 kV eff. (field/system). The module draws max. 100 mA internally, uses 2 bits of internal bit width and connects via CAGE CLAMP® for 0.08 mm² … 2.5 mm² wires. It operates at 0 °C … 55 °C and is 12 mm wide, 64 mm high and 100 mm deep.
Technical reference
| Product name | WAGO 750-512 I/O System 750 2-Channel Relay Output Module |
|---|---|
| Brand | WAGO |
| Model | 750-512 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Supply voltage (field) | 250 VAC |
| Supply voltage (system) | 5 VDC; via data contacts |
| Switching current (max.) | 2 A |
| Switching voltage (max.) | 250 VAC, 30 VDC |
| Number of digital outputs | 2 |
| Ambient temperature (operation) | 0 … +55 °C |
| Current carrying capacity (power jumper contacts) | 10 A |
