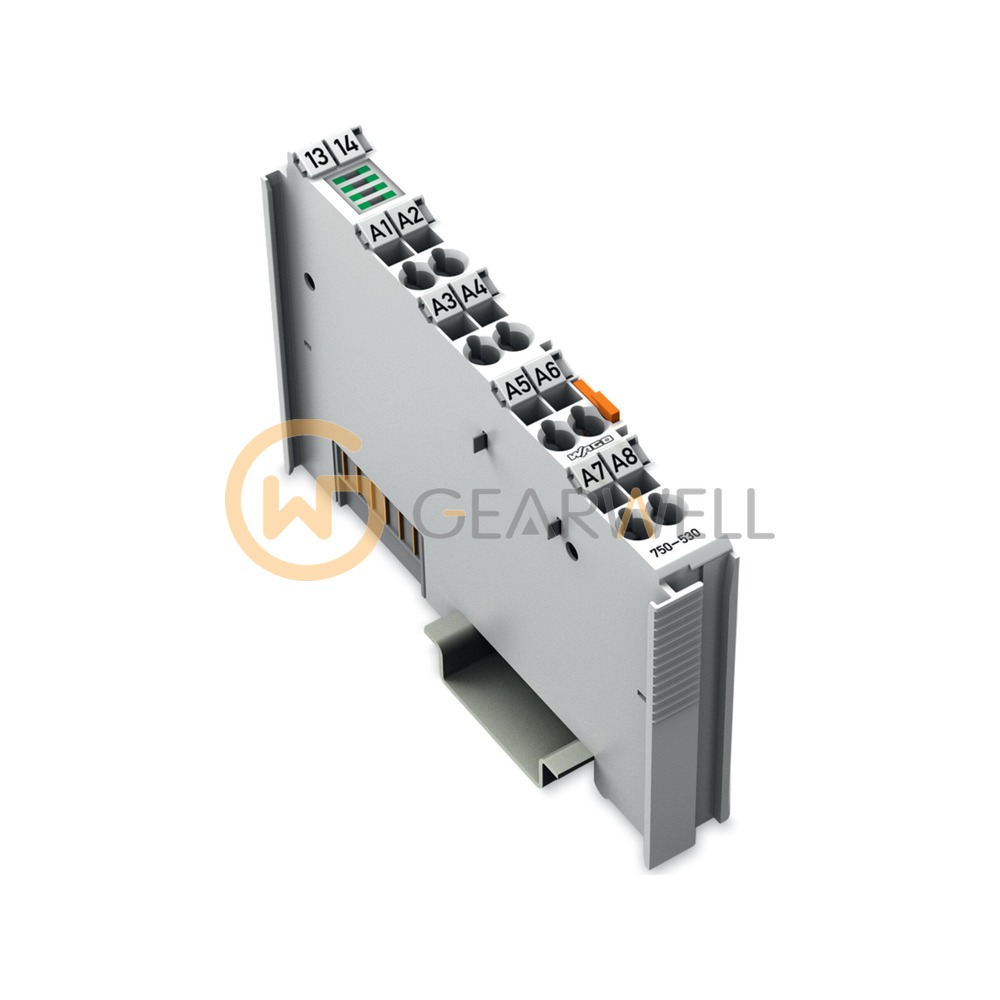

WAGO 750-530 I/O System 750 8-Channel Digital Output Module
- Brand
- WAGO
- Model
- 750-530
- GEARWELL SKU
- GWP-000010053
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Signal type (voltage)
- 24 VDC
- Supply voltage (field)
- 24 VDC (-25 … +30 %)
- Supply voltage (system)
- 5 VDC; via data contacts
- Number of digital outputs
- 8
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-530 is an 8-channel digital output module of the WAGO I/O System 750 for 24 VDC actuators, with high-side switching outputs rated 0.5 A per channel. The outputs are short-circuit-protected, suit resistive, inductive and lamp loads and switch at up to 2 kHz. Actuators connect as 8 x (1-wire) on the fixed connector, the 24 VDC field supply comes via the power jumper contacts, and the module draws 25 mA from the system supply. It has 500 V system/field isolation, operates at 0 … +55 °C and measures (12 x 100 x 67.8) mm (W x H x D).
Technical reference
| Product name | WAGO 750-530 I/O System 750 8-Channel Digital Output Module |
|---|---|
| Brand | WAGO |
| Model | 750-530 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Signal type (voltage) | 24 VDC |
| Supply voltage (field) | 24 VDC (-25 … +30 %) |
| Supply voltage (system) | 5 VDC; via data contacts |
| Number of digital outputs | 8 |
| Output current per channel | 0.5 A |
| Ambient temperature (operation) | 0 … +55 °C |
| Current carrying capacity (power jumper contacts) | 10 A |
