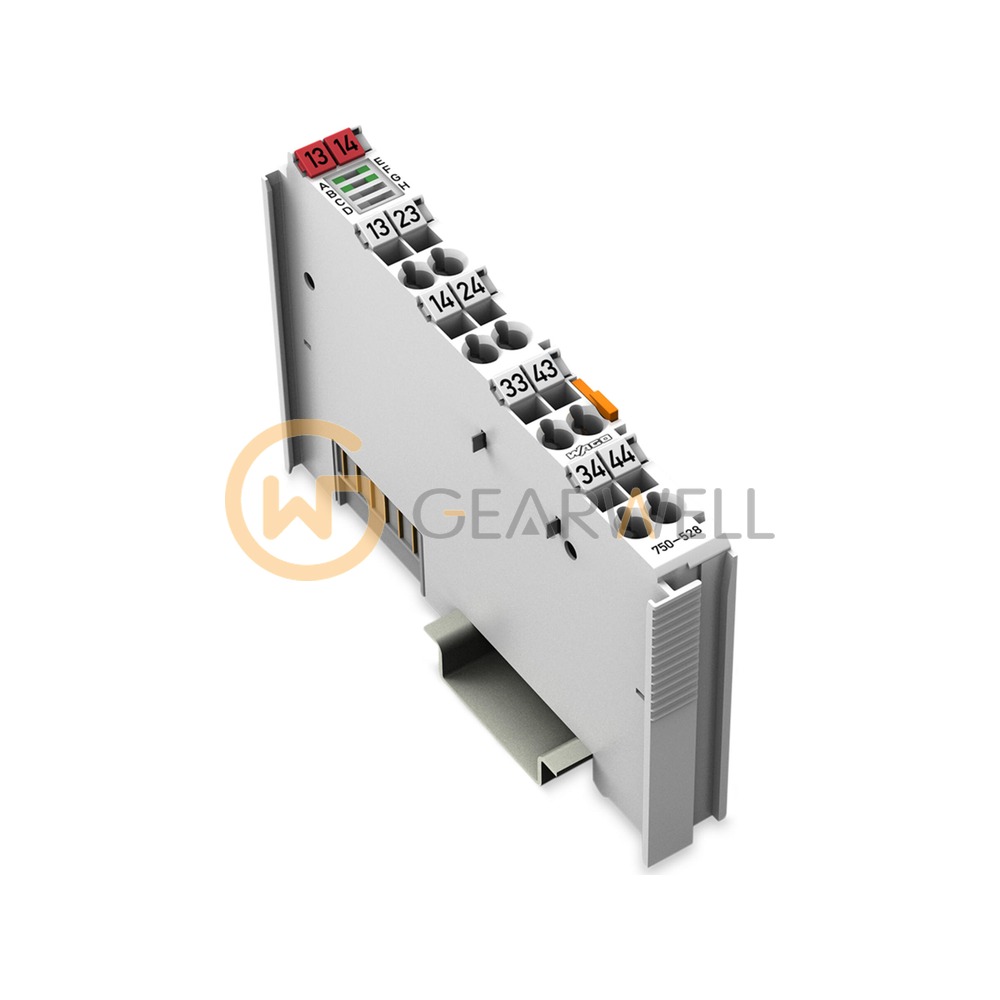

WAGO 750-528 I/O System 750 4-Channel Solid-State Output Module
- Brand
- WAGO
- Model
- 750-528
- GEARWELL SKU
- GWP-000010052
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Signal type (voltage)
- 30 VAC/DC; 48 VDC
- Supply voltage (field)
- 30 VAC/DC, SELV
- Supply voltage (system)
- 5 VDC; via data contacts
- Number of digital outputs
- 4
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-528 is a 4-channel isolated solid-state digital output module of the WAGO I/O System 750 for 30 VAC/DC and 48 VDC, rated 2 A per channel and 8 A per module. The outputs require external fuses, handle resistive and inductive loads, switch at up to 1 Hz and have delay times of 1000 µs (on) and 20000 µs (off). Actuators connect as 4 x (2-wire), the 30 VAC/DC, SELV field supply is taken from the power jumper contacts, and a suitable supply module is needed for AC operation or DC voltages >31.2 V. The module draws 57 mA from the system supply, has 500 V system/field or channel/channel isolation, operates at 0 … +55 °C and measures (12 x 100 x 69.8) mm (W x H x D).
Technical reference
| Product name | WAGO 750-528 I/O System 750 4-Channel Solid-State Output Module |
|---|---|
| Brand | WAGO |
| Model | 750-528 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Signal type (voltage) | 30 VAC/DC; 48 VDC |
| Supply voltage (field) | 30 VAC/DC, SELV |
| Supply voltage (system) | 5 VDC; via data contacts |
| Number of digital outputs | 4 |
| Output current per channel | 2 A |
| Ambient temperature (operation) | 0 … +55 °C |
| Current carrying capacity (power jumper contacts) | 10 A |
