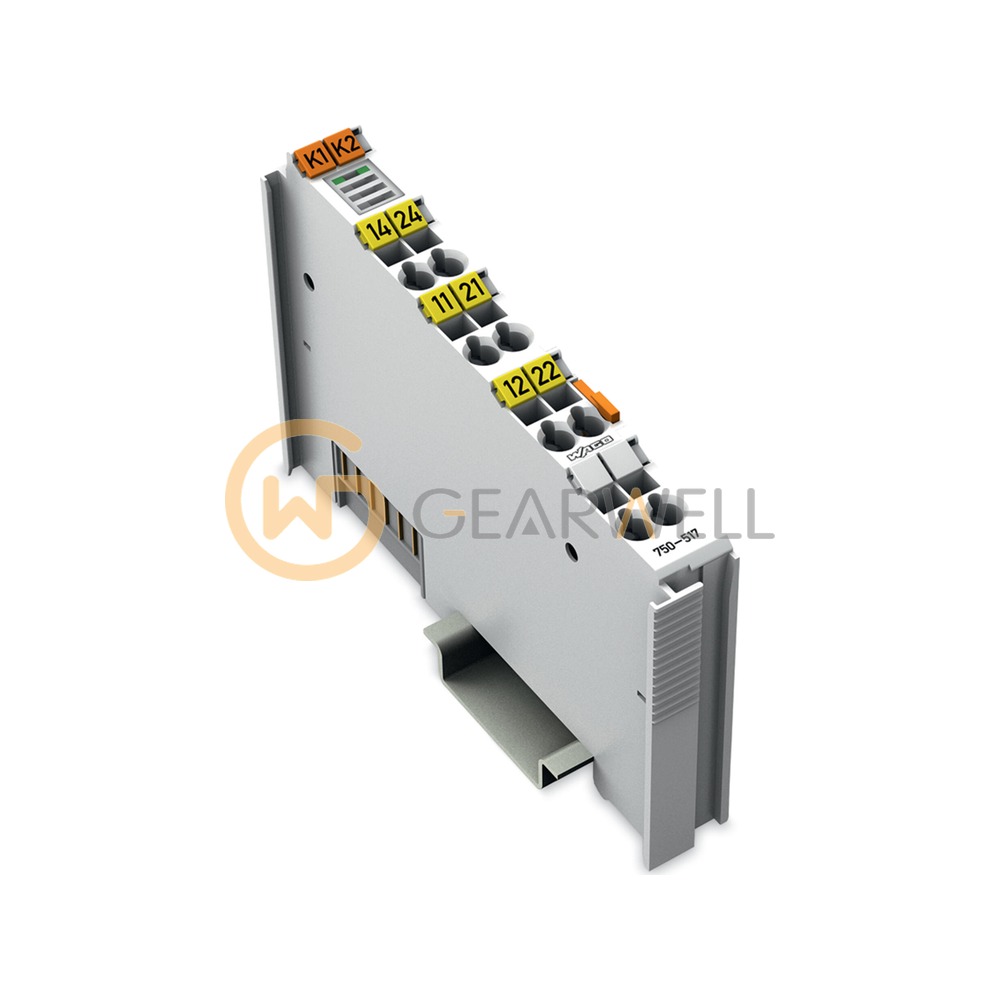

WAGO 750-517 I/O System 750 2-Channel Relay Output Module
- Brand
- WAGO
- Model
- 750-517
- GEARWELL SKU
- GWP-000010048
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Isolation
- 1500 V (system/field)
- Protection type
- IP20
- Supply voltage (system)
- 5 VDC; via data contacts
- Switching current (max.)
- 1 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-517 is a 2-channel relay output module of the WAGO I/O System 750 with two potential-free changeover contacts. The maximum switching voltage is 250 VAC, 300 VDC; the switching current is 1 A at 250 VAC and 40 VDC or 0.15 A at 300 VDC, with a minimum of 100 mA. Actuators connect as 2 x (1-wire) on the fixed connector, the relays are rated for 5 x 10⁶ mechanical and 1 x 10⁶ electrical switching operations, and the system-side current consumption is 90 mA. Isolation is 1500 V system/field, the operating temperature is 0 … +55 °C and the size is (12 x 100 x 67.8) mm (W x H x D).
Technical reference
| Product name | WAGO 750-517 I/O System 750 2-Channel Relay Output Module |
|---|---|
| Brand | WAGO |
| Model | 750-517 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Isolation | 1500 V (system/field) |
| Protection type | IP20 |
| Supply voltage (system) | 5 VDC; via data contacts |
| Switching current (max.) | 1 A |
| Switching voltage (max.) | 250 VAC, 300 VDC |
| Number of digital outputs | 2 |
| Ambient temperature (operation) | 0 … +55 °C |
