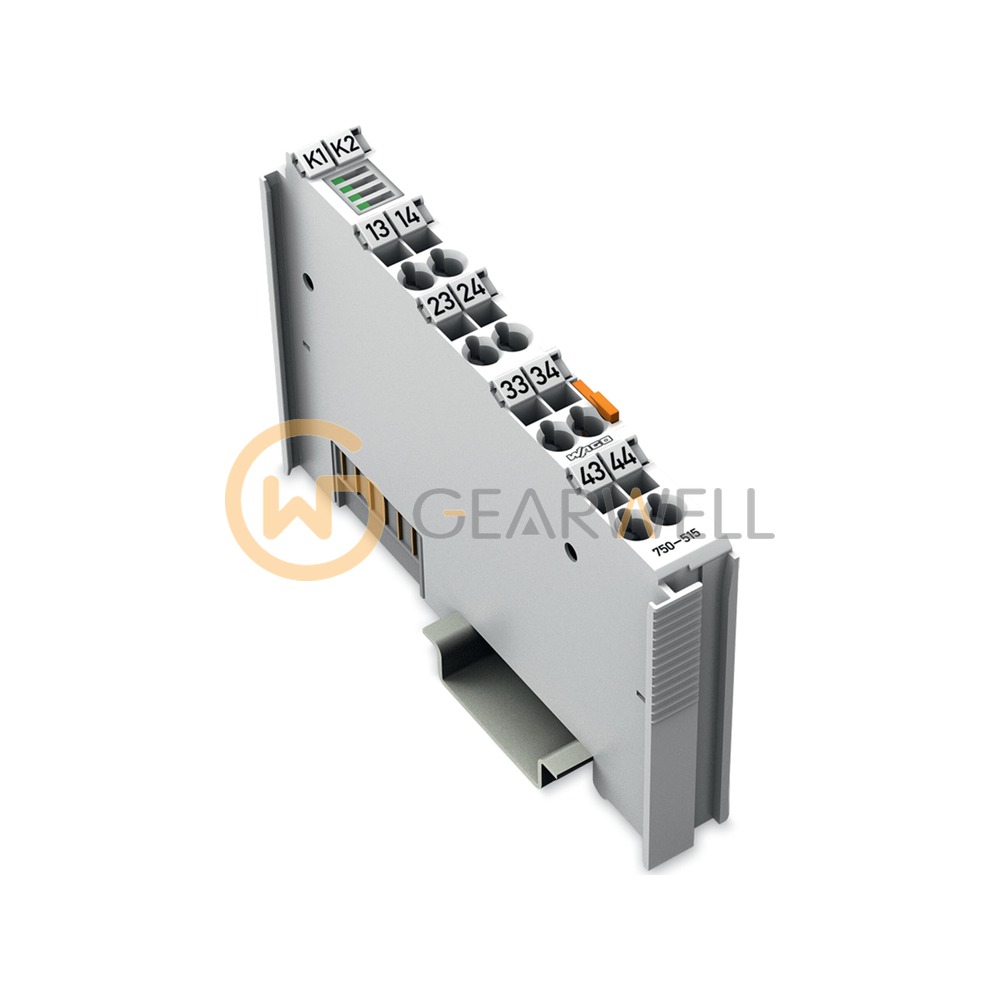

WAGO 750-515 I/O System 750 4-Channel Relay Output Module
- Brand
- WAGO
- Model
- 750-515
- GEARWELL SKU
- GWP-000010047
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Isolation
- 1500 V (system/field)
- Protection type
- IP20
- Supply voltage (system)
- 5 VDC; via data contacts
- Switching current (max.)
- 2 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-515 is a 4-channel relay output module of the WAGO I/O System 750 with four potential-free make contacts. The maximum switching voltage is 250 VAC or 30 VDC (110 VDC at 0.4 A) and the maximum switching current is 2 A, or 5 A for single-channel use. Actuators connect as 4 x (1-wire), the relays are rated for 20 x 10⁶ mechanical and 100 x 10³ electrical switching operations at max. resistive load, and the module draws 95 mA from the system supply. It has 1500 V system/field isolation, operates at 0 … +55 °C and measures (12 x 100 x 67.8) mm (W x H x D).
Technical reference
| Product name | WAGO 750-515 I/O System 750 4-Channel Relay Output Module |
|---|---|
| Brand | WAGO |
| Model | 750-515 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Isolation | 1500 V (system/field) |
| Protection type | IP20 |
| Supply voltage (system) | 5 VDC; via data contacts |
| Switching current (max.) | 2 A |
| Switching voltage (max.) | 250 VAC; 30 VDC; 110 VDC at 0.4 A |
| Number of digital outputs | 4 |
| Ambient temperature (operation) | 0 … +55 °C |
