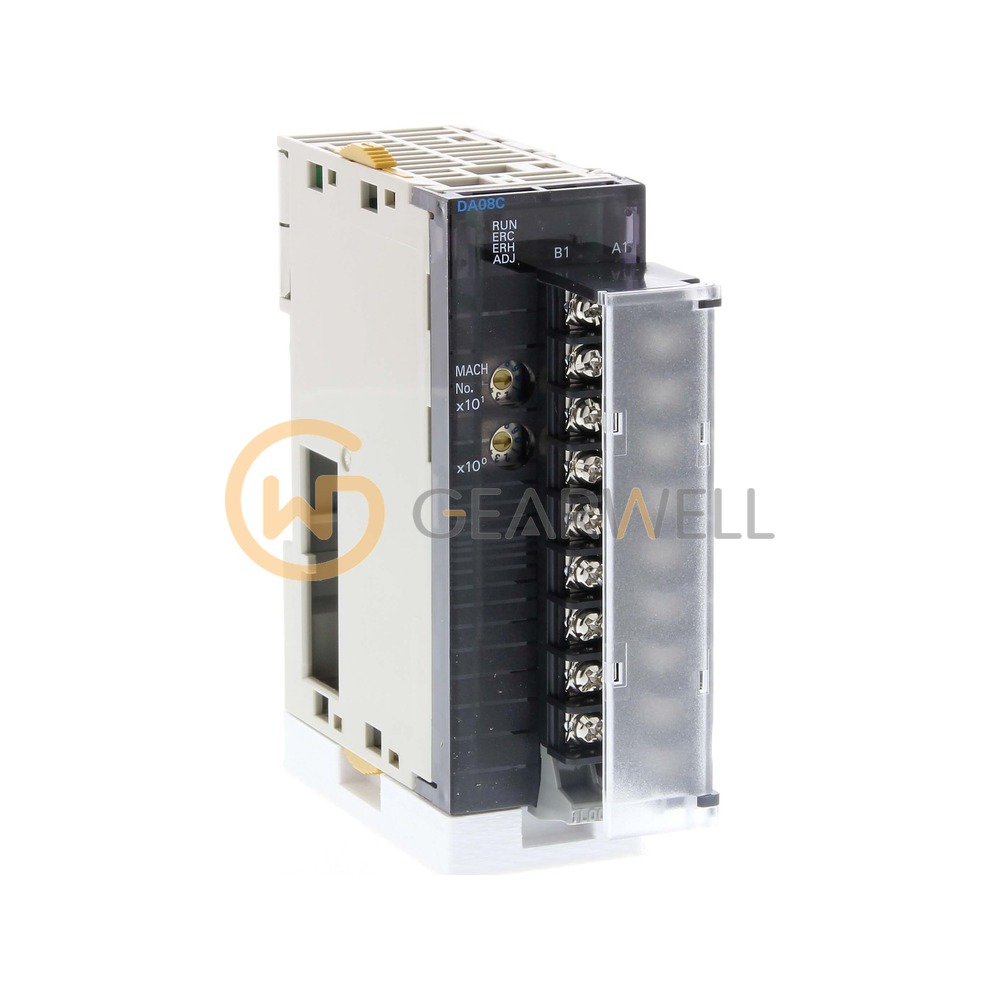

OMRON CJ1W-DA08C CJ1 Analog Output Unit
- Brand
- OMRON
- Model
- CJ1W-DA08C
- GEARWELL SKU
- GWP-000007809
- Category
- PLCs & I/O
Key specifications
- Weight
- 167 g
- I/O connection
- Screw, detachable terminal block
- Output resolution
- 12 bit
- Analog output type
- 4 to 20 mA
- Dimensions (H x W x D)
- 90 x 31 x 89 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON CJ1W-DA08C is a CJ-series Special I/O Unit with 8 current outputs of 4 to 20 mA. Resolution is 4,000 at 1.0 ms per point, or 8,000 at 250 μs per point when set, with an accuracy of ±0.3% of F.S. at 25°C and a maximum permissible load resistance of 350 Ω. It supports output hold (CLR, HOLD or MAX), scaling and offset/gain adjustment. It draws 140 mA max. at 5 VDC plus 170 mA max. from an external 24 VDC supply, uses an 18-point detachable terminal block (M3 screws), measures 31 × 90 × 65 mm and weighs 150 g max.
Technical reference
| Product name | OMRON CJ1W-DA08C CJ1 Analog Output Unit |
|---|---|
| Brand | OMRON |
| Model | CJ1W-DA08C |
| Category | PLCs & I/O |
| Weight | 167 g |
| I/O connection | Screw, detachable terminal block |
| Output resolution | 12 bit |
| Analog output type | 4 to 20 mA |
| Dimensions (H x W x D) | 90 x 31 x 89 mm |
| Number of analog outputs | 8 |
