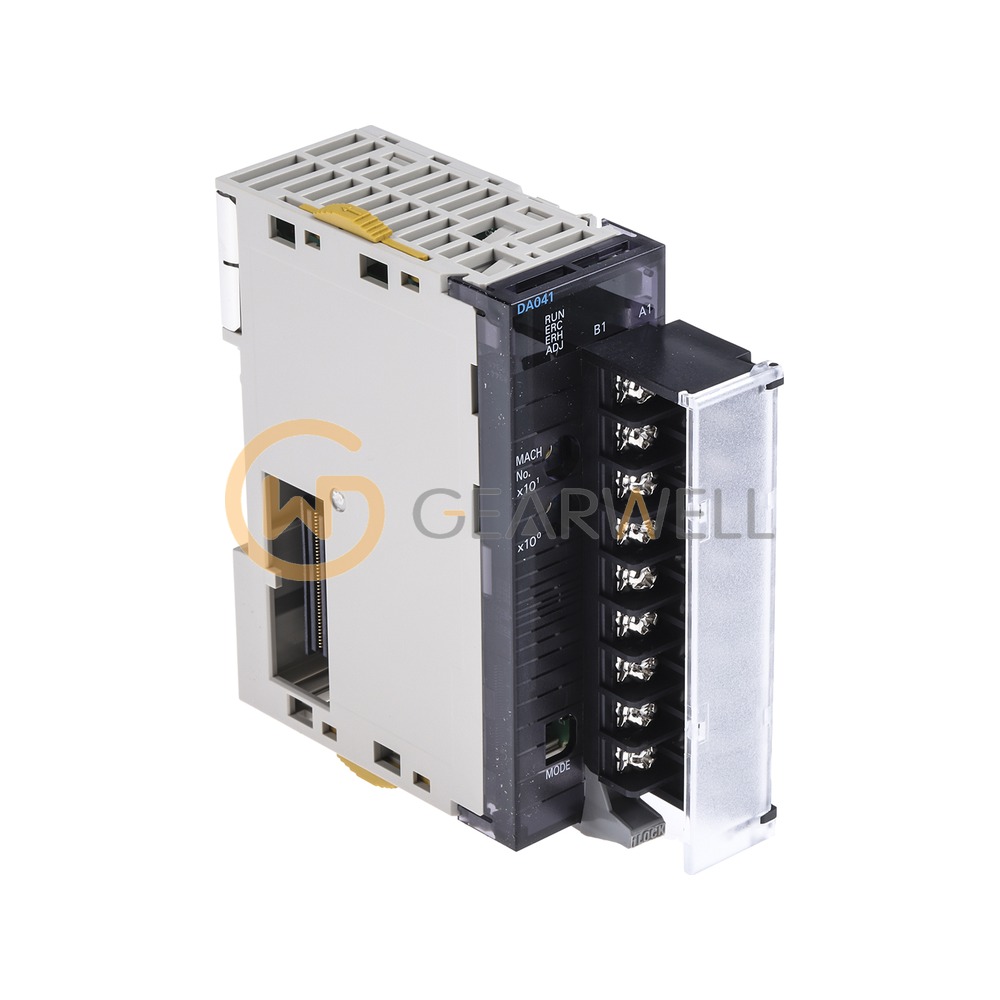

OMRON CJ1W-DA041 4-Channel Analog Output Unit

Product overview

The OMRON CJ1W-DA041 is a CJ-series Special I/O Unit with 4 analog outputs, each set separately to 1 to 5 V, 0 to 5 V, 0 to 10 V, −10 to 10 V or 4 to 20 mA. It has a resolution of 4,000 and a conversion period of 1.0 ms per point, with an accuracy at 25°C of ±0.3% of F.S. for voltage and ±0.5% of F.S. for current outputs; the maximum load resistance for current output is 600 Ω. Output hold (CLR, HOLD or MAX) and offset/gain adjustment are supported. It draws 120 mA max. at 5 VDC plus 200 mA max. from an external 24 VDC supply, uses an 18-point detachable terminal block (M3 screws), measures 31 × 90 × 65 mm and weighs 150 g max.
