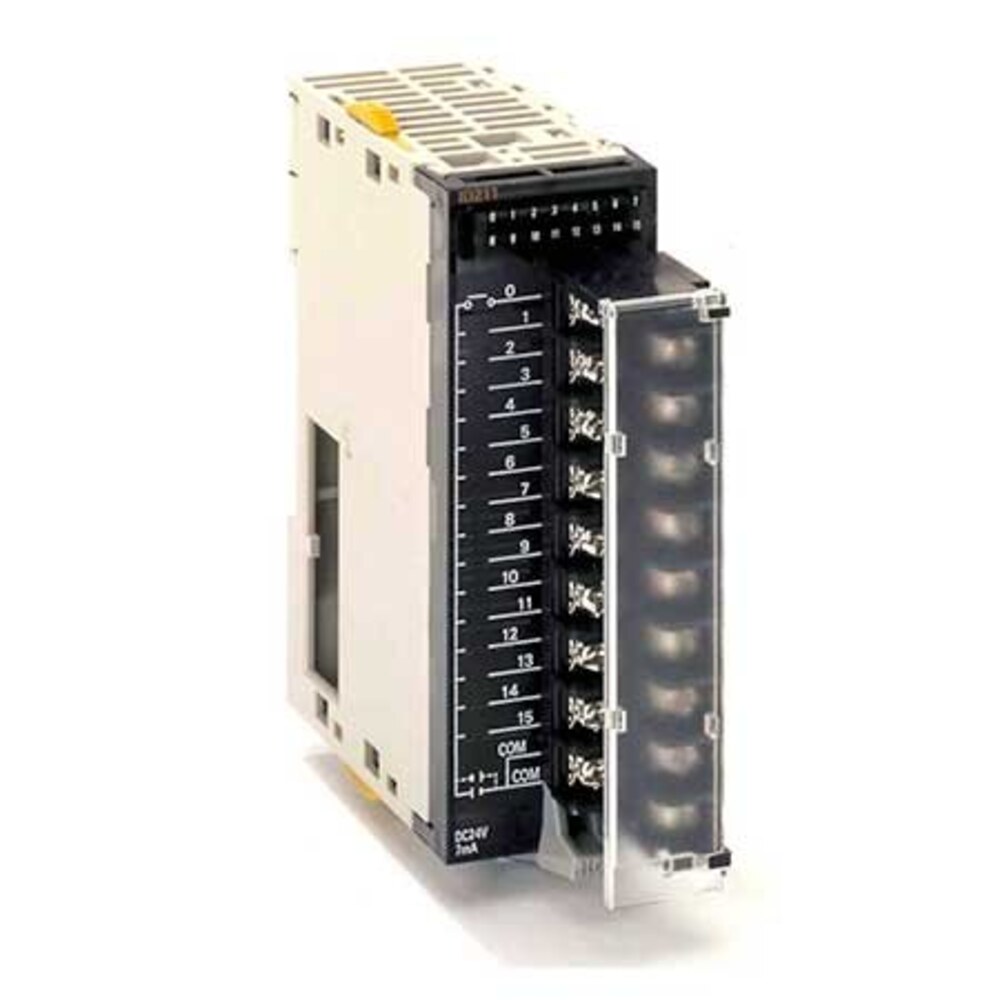

OMRON CJ1W-ID211 Programmable Controller
- Brand
- OMRON
- Model
- CJ1W-ID211
- GEARWELL SKU
- GWP-000003707
- Category
- Industrial Automation Parts
Key specifications
- Weight
- 110 g maximum
- Input points
- 16
- Product type
- 16-point DC input unit with terminal block
- Input current
- 7 mA typical at 24 VDC
- ON response time
- 8.0 ms maximum, configurable 0 to 32 ms
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON CJ1W-ID211 is a CJ-series basic I/O unit with 16 DC inputs at 24 VDC (20.4 to 26.4 VDC), all on 1 common, connected through a removable terminal block. Input current is 7 mA typical with an input impedance of 3.3 kΩ; the ON voltage is 14.4 VDC min. and the OFF voltage 5 VDC max. ON and OFF response times are 8.0 ms max., settable between 0 and 32 ms, and the input power polarity can be connected either way. It uses 1 word, draws 80 mA max. internally and weighs 110 g max.
Technical reference
| Product name | OMRON CJ1W-ID211 Programmable Controller |
|---|---|
| Brand | OMRON |
| Model | CJ1W-ID211 |
| Category | Industrial Automation Parts |
| Weight | 110 g maximum |
| Input points | 16 |
| Product type | 16-point DC input unit with terminal block |
| Input current | 7 mA typical at 24 VDC |
| ON response time | 8.0 ms maximum, configurable 0 to 32 ms |
| Input voltage range | 20.4 to 26.4 VDC |
| Rated input voltage | 24 VDC |
| Internal current consumption | 80 mA maximum |
