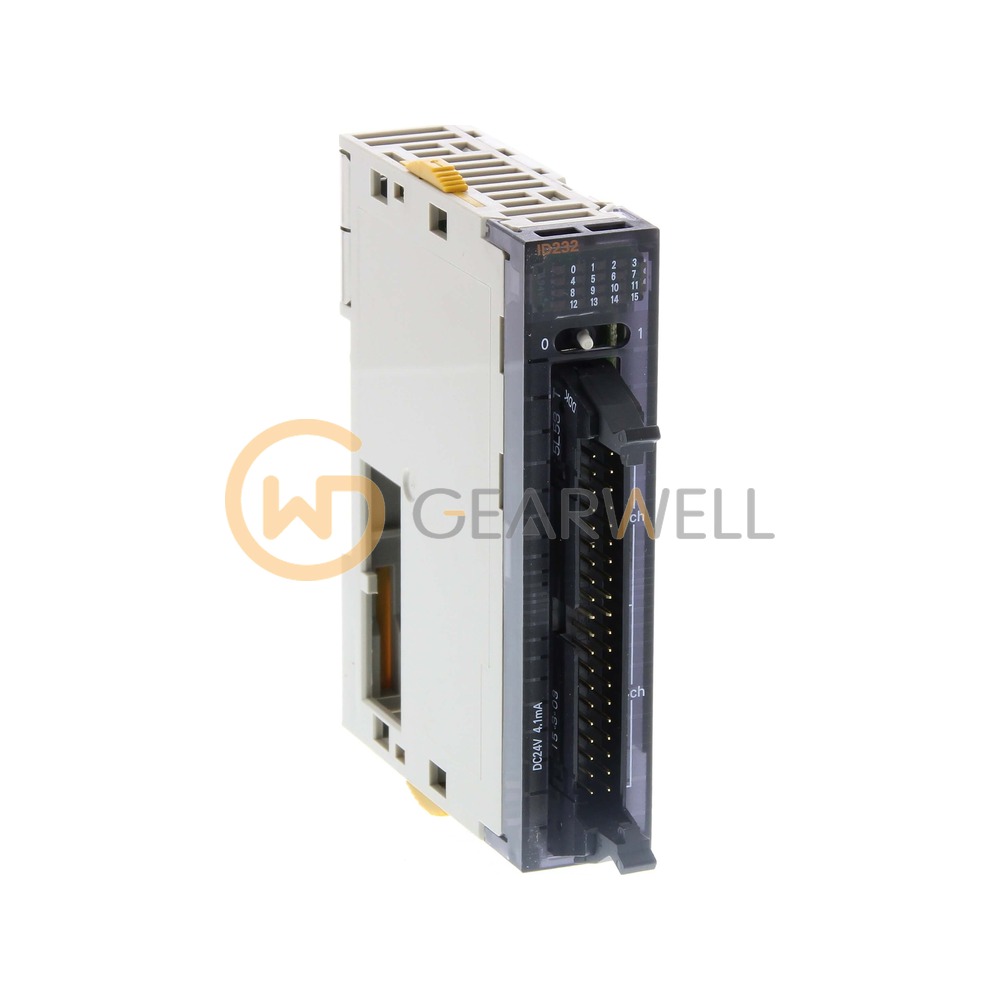

OMRON CJ1W-ID232 32-Point Digital Input Unit
- Brand
- OMRON
- Model
- CJ1W-ID232
- GEARWELL SKU
- GWP-000006733
- Category
- PLCs & I/O
Key specifications
- Digital inputs
- 32
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON CJ1W-ID232 is a CJ-series basic I/O unit with 32 DC inputs at 24 VDC (20.4 to 26.4 VDC) in 2 circuits of 16 points per common, connected through a MIL connector. Input current is 4.1 mA typical with an input impedance of 5.6 kΩ; the ON voltage is 19.0 VDC min. and the OFF voltage 5 VDC max. ON and OFF response times are 8.0 ms max., settable between 0 and 32 ms. It uses 2 words, draws 90 mA max. internally and weighs 70 g max.; the connector is not included.
Technical reference
| Product name | OMRON CJ1W-ID232 32-Point Digital Input Unit |
|---|---|
| Brand | OMRON |
| Model | CJ1W-ID232 |
| Category | PLCs & I/O |
| Digital inputs | 32 |
