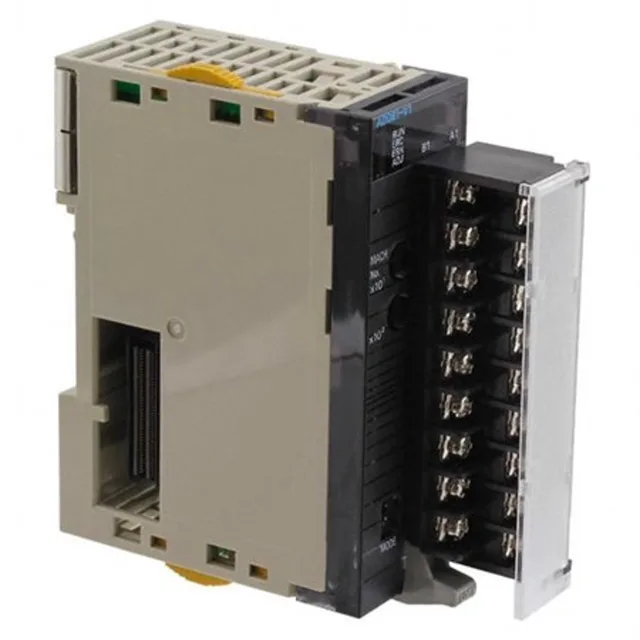

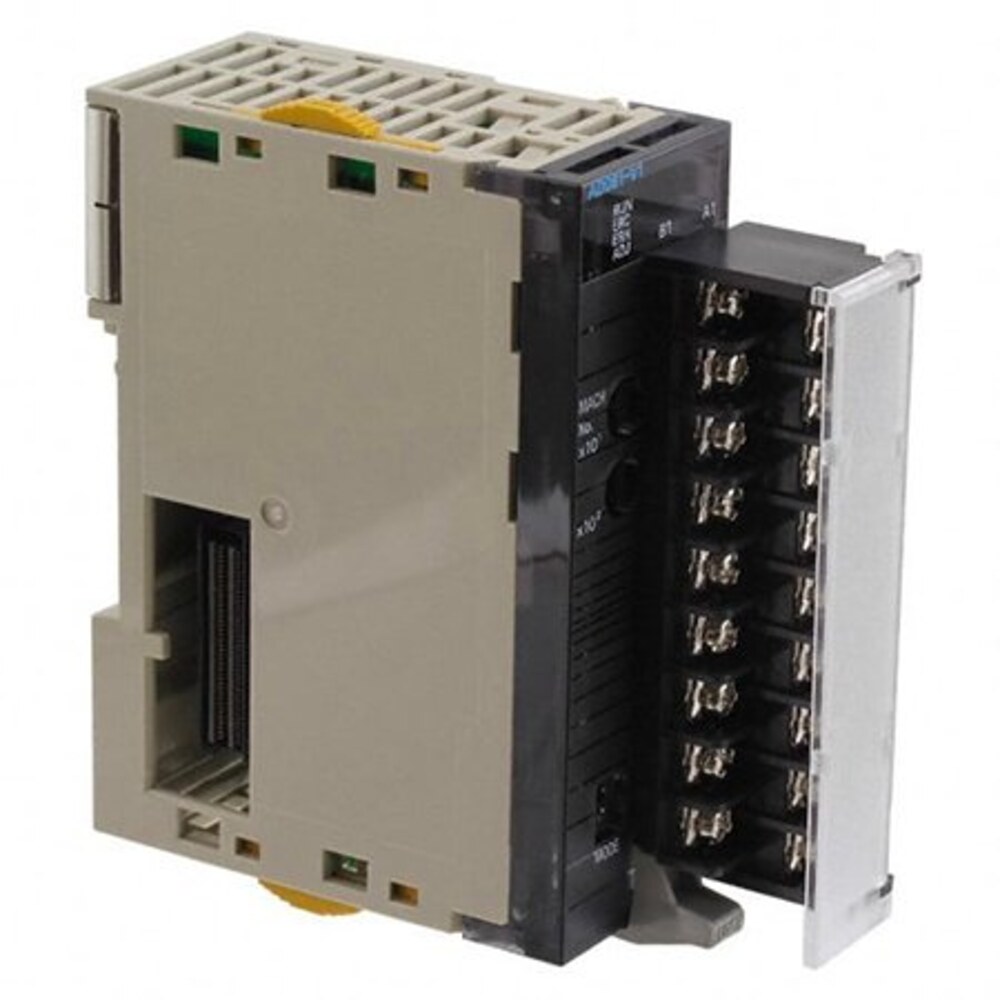

OMRON CJ1W-AD081-V1 Analogue Input Module
- Brand
- OMRON
- Model
- CJ1W-AD081-V1
- GEARWELL SKU
- GWP-000001167
- Category
- Industrial Automation Parts
Key specifications
- Weight
- 140 g maximum
- Overall accuracy
- Voltage ±0.2% full scale; current ±0.4% full scale
- Dimensions
- 31 × 90 × 65 mm (W × H × D)
- Resolution
- 1/4000, settable to 1/8000
- Input ranges
- 1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, or 4 to 20 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON CJ1W-AD081-V1 is a CJ-series Special I/O Unit with 8 analog inputs, each set separately to 1 to 5 V, 0 to 5 V, 0 to 10 V, −10 to 10 V or 4 to 20 mA. Resolution is 1/4,000 at 1 ms per point, or 1/8,000 at 250 μs per point when set, with 16-bit binary data and an accuracy of ±0.2% of F.S. for voltage and ±0.4% of F.S. for current inputs at 23 ±2°C. It offers mean value processing, peak value holding, input disconnection detection and offset/gain adjustment. It connects through an 18-point detachable terminal block (M3 screws), draws 420 mA max. at 5 VDC, measures 31 × 90 × 65 mm and weighs 140 g max.
Technical reference
| Product name | OMRON CJ1W-AD081-V1 Analogue Input Module |
|---|---|
| Brand | OMRON |
| Model | CJ1W-AD081-V1 |
| Category | Industrial Automation Parts |
| Weight | 140 g maximum |
| Overall accuracy | Voltage ±0.2% full scale; current ±0.4% full scale |
| Dimensions | 31 × 90 × 65 mm (W × H × D) |
| Resolution | 1/4000, settable to 1/8000 |
| Input ranges | 1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, or 4 to 20 mA |
| Product type | CJ-series analog input Special I/O Unit |
| Analog input points | 8 |
| Conversion time | 1 ms/point, settable to 250 μs/point |
