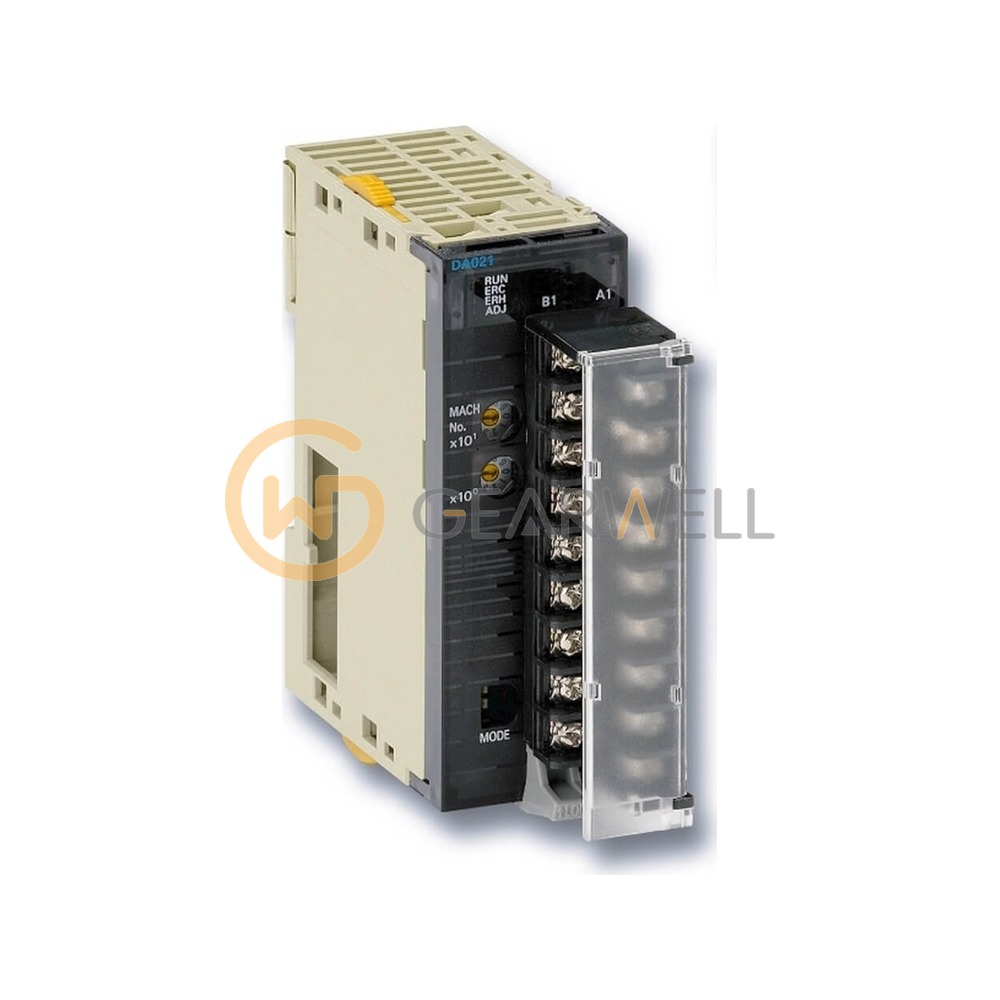

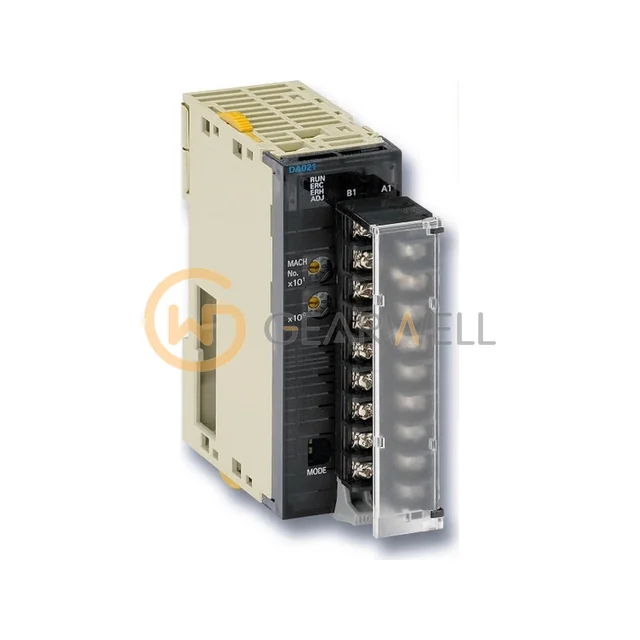

OMRON CJ1W-DA021 CJ1 Analog Output Unit
- Brand
- OMRON
- Model
- CJ1W-DA021
- GEARWELL SKU
- GWP-000011609
- Category
- PLCs & I/O
Key specifications
- Weight
- 160 g
- Resolution
- 12 bit
- Output ranges
- -10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA
- I/O connection
- Screw
- Dimensions (H x W x D)
- 90 x 31 x 89 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON CJ1W-DA021 is a CJ-series Special I/O Unit with 2 analog outputs, each set separately to 1 to 5 V, 0 to 5 V, 0 to 10 V, −10 to 10 V or 4 to 20 mA. It has a resolution of 4,000 and a conversion period of 1.0 ms per point, with an accuracy at 25°C of ±0.3% of F.S. for voltage and ±0.5% of F.S. for current outputs; the maximum load resistance for current output is 600 Ω. Output hold (CLR, HOLD or MAX) and offset/gain adjustment are supported. It draws 120 mA max. at 5 VDC plus 140 mA max. from an external 24 VDC supply, uses an 18-point detachable terminal block (M3 screws), measures 31 × 90 × 65 mm and weighs 150 g max.
Technical reference
| Product name | OMRON CJ1W-DA021 CJ1 Analog Output Unit |
|---|---|
| Brand | OMRON |
| Model | CJ1W-DA021 |
| Category | PLCs & I/O |
| Weight | 160 g |
| Resolution | 12 bit |
| Output ranges | -10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| I/O connection | Screw |
| Dimensions (H x W x D) | 90 x 31 x 89 mm |
| Number of analog outputs | 2 |
