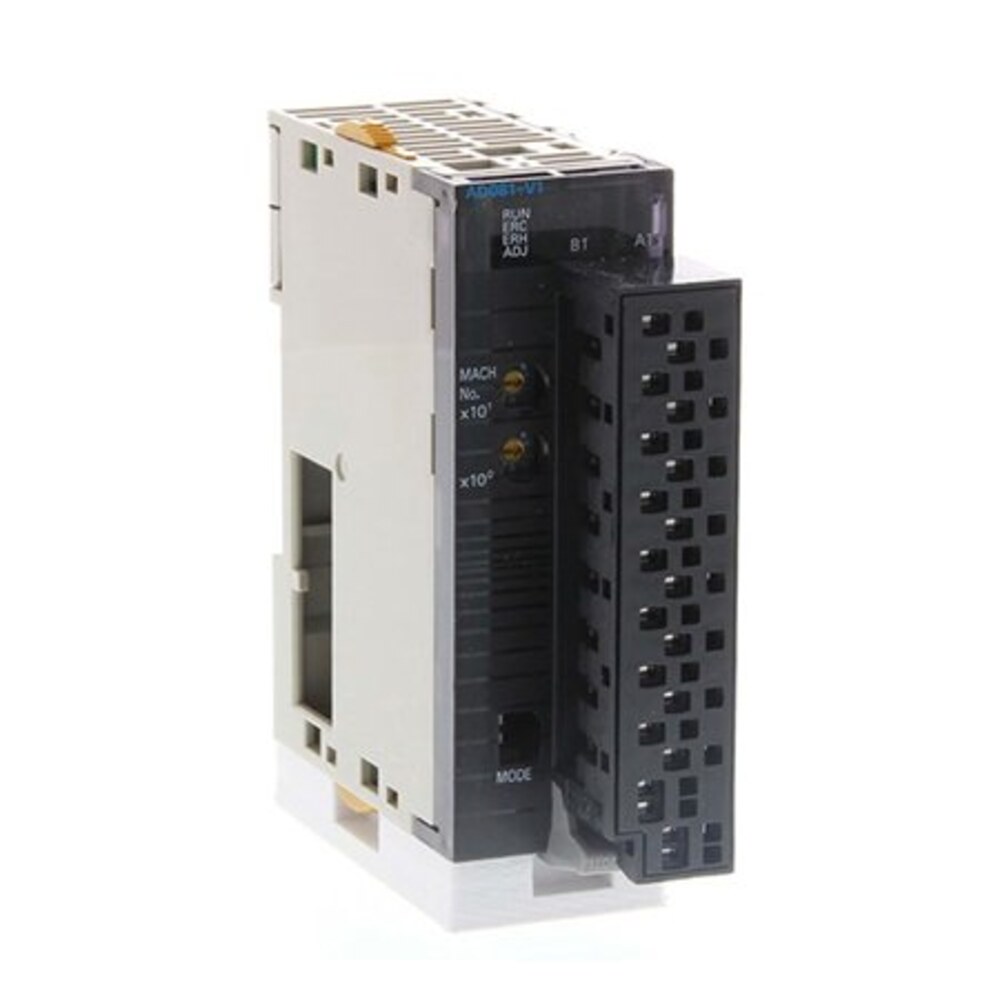

OMRON CJ1W-AD04U Input Module (SL)
- Brand
- OMRON
- Model
- CJ1W-AD04U
- GEARWELL SKU
- GWP-000002409
- Category
- Industrial Automation Parts
Key specifications
- Accuracy
- Voltage/current ±0.3% full scale ±1 digit at 25 °C
- Isolation
- Between inputs and controller signals, and between inputs
- Dimensions
- 31 × 90 × 65 mm (W × H × D)
- Input types
- DC voltage, DC current, thermocouple, or resistance thermometer
- Product type
- Isolated universal analog input unit
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON CJ1W-AD04U is a CJ-series Special I/O Unit with 4 isolated universal inputs, each set separately to a platinum resistance thermometer (Pt100, JPt100, Pt1000), a K, J, T, L, R, S or B thermocouple, 4 to 20 mA or 0 to 20 mA current, or 1 to 5 V, 0 to 5 V or 0 to 10 V voltage. Conversion takes 250 ms for 4 inputs, with a resolution of 1/12,000 for voltage and current inputs and an accuracy of ±0.3% FS ±1 digit for them at 25°C. Each input has 2 process value alarms with hysteresis and an ON-delay timer. It draws 320 mA max. at 5 V DC, connects through a detachable terminal block, measures 31 × 90 × 65 mm (W × H × D) and weighs 150 g max.
Technical reference
| Product name | OMRON CJ1W-AD04U Input Module (SL) |
|---|---|
| Brand | OMRON |
| Model | CJ1W-AD04U |
| Category | Industrial Automation Parts |
| Accuracy | Voltage/current ±0.3% full scale ±1 digit at 25 °C |
| Isolation | Between inputs and controller signals, and between inputs |
| Dimensions | 31 × 90 × 65 mm (W × H × D) |
| Input types | DC voltage, DC current, thermocouple, or resistance thermometer |
| Product type | Isolated universal analog input unit |
| Input channels | 4 |
| Conversion speed | 250 ms per 4 inputs |
| Channel configuration | Each input channel is configured independently |
