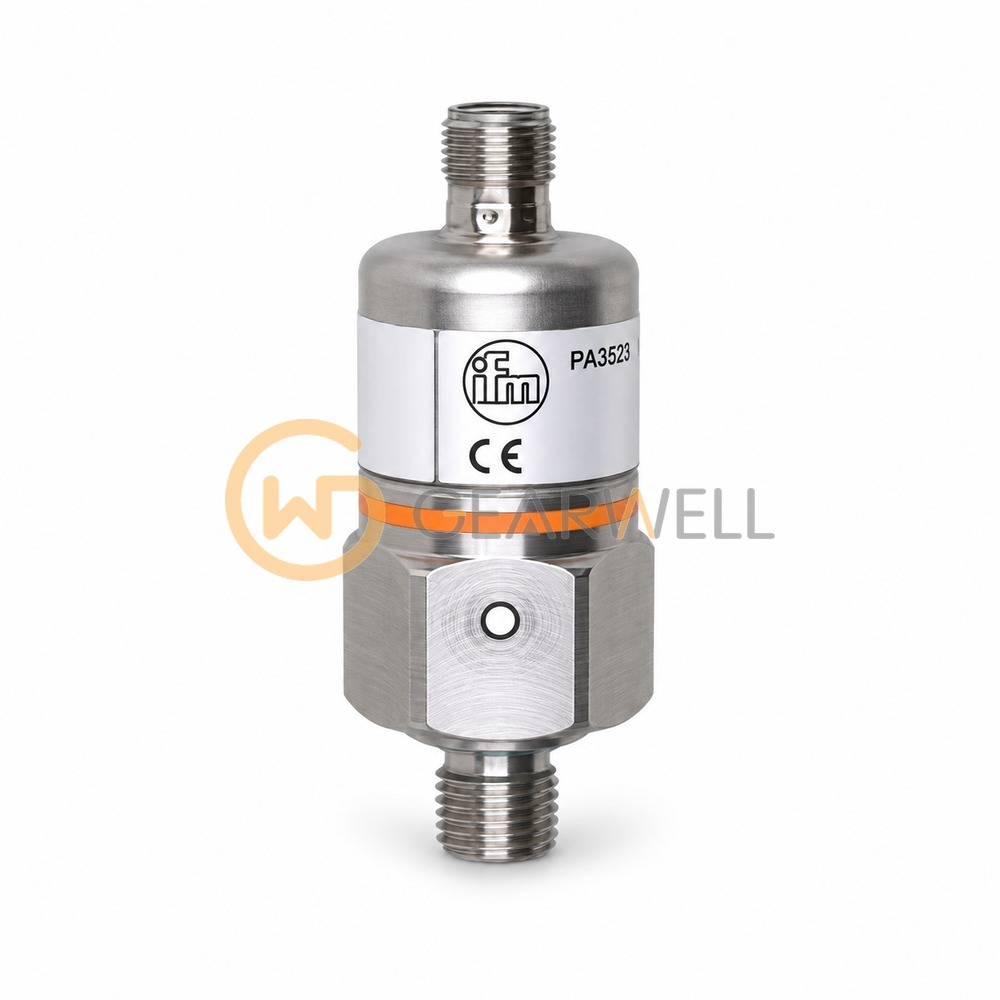

IFM PA3523 Pressure Transmitter

Product overview

The ifm PA3523 (PA-025-RBG14-A-ZVG/US/ /V) is a pressure transmitter with ceramic measuring cell for liquids and gases. It measures relative pressure over 0…25 bar (0…363 psi), with a pressure rating of 150 bar and a minimum burst pressure of 350 bar. The process connection is a G 1/4 external thread with M5 internal thread, the wetted parts are stainless steel (1.4305 / 303), ceramics and FKM seal (DIN 3869-14), and the permitted medium temperature is -25…90 °C. It provides 1 analog output (4…20 mA), runs on 9.6…32 V DC and connects through an M12 connector (A-coded, 4 gold-plated contacts). ifm specifies characteristic deviation < ± 0.25 % of span and repeatability < 0.1 % of span. The sensor is rated IP65 for -25…80 °C ambient.
