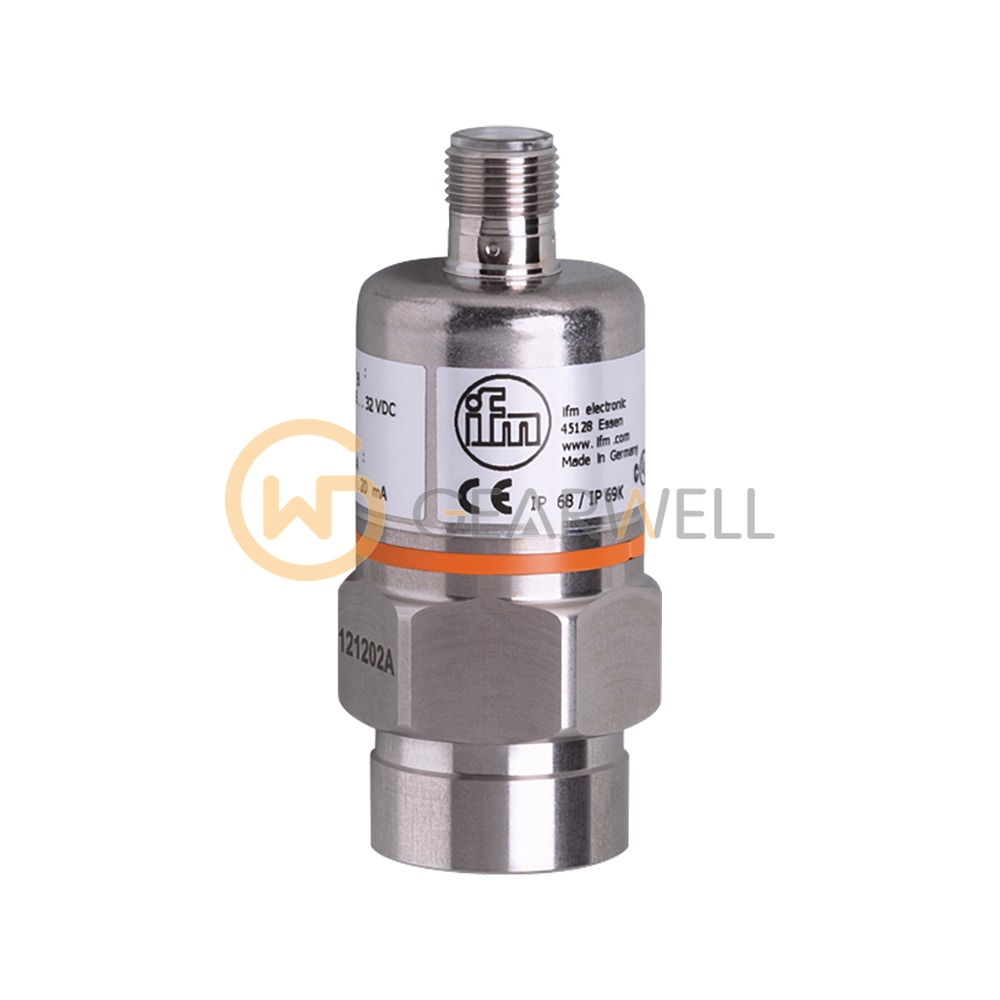

IFM PA3060 Pressure Transmitter with Ceramic Measuring Cell
- Brand
- IFM
- Model
- PA3060
- GEARWELL SKU
- GWP-000008419
- Category
- Pressure, Flow & Temperature
Key specifications
- Weight
- 232 g
- Materials
- stainless steel (316L/1.4404); FKM; PA; EPDM/X
- Protection
- IP 68; IP 69K
- Operating voltage
- 9.6...32 DC V
- Ambient temperature
- -25...80 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm PA3060 (PA-600-SBR14-A-ZVG/US/ /V) is a pressure transmitter with ceramic measuring cell for liquids and gases. It measures relative pressure over 0…600 bar (0…8700 psi), with a pressure rating of 800 bar and a minimum burst pressure of 1200 bar. The process connection is a G 1/4 internal thread, the wetted parts are stainless steel (1.4404 / 316L), ceramics and FKM, and the permitted medium temperature is -25…90 °C. It provides 1 analog output (4…20 mA), runs on 9.6…32 V DC and connects through an M12 connector (A-coded, 4 gold-plated contacts). ifm specifies characteristic deviation < ± 0.25 % of span and repeatability < 0.1 % of span. The sensor is rated IP68 and IP69K for -25…80 °C ambient.
Technical reference
| Product name | IFM PA3060 Pressure Transmitter with Ceramic Measuring Cell |
|---|---|
| Brand | IFM |
| Model | PA3060 |
| Category | Pressure, Flow & Temperature |
| Weight | 232 g |
| Materials | stainless steel (316L/1.4404); FKM; PA; EPDM/X |
| Protection | IP 68; IP 69K |
| Operating voltage | 9.6...32 DC V |
| Ambient temperature | -25...80 °C |
| Number of analogue outputs | 1 |
