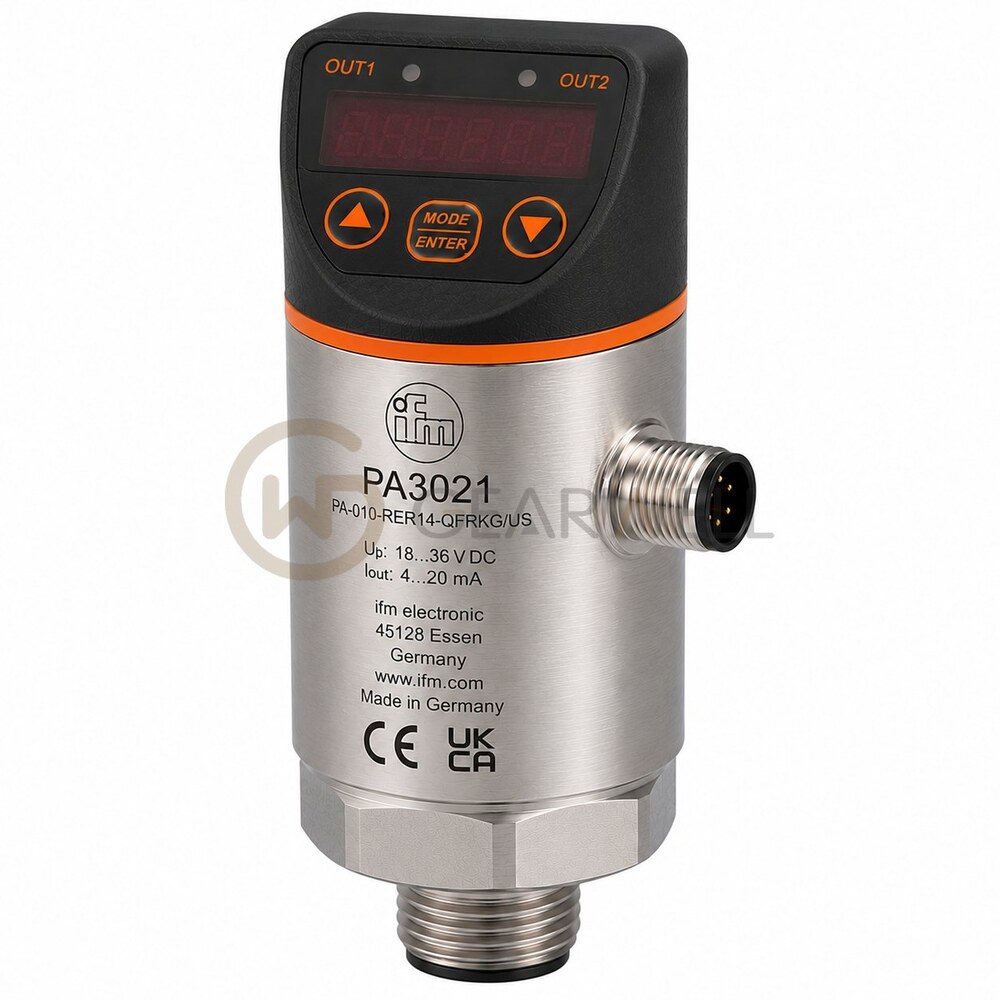

IFM PA3021 Industrial Sensor
- Brand
- IFM
- Model
- PA3021
- GEARWELL SKU
- GWP-000000274
- Category
- Industrial Automation Parts
Key specifications
- Protection
- IP68 / IP69K
- Measuring range
- 0...250 bar
- Output function
- 4...20 mA analogue
- Maximum overload pressure
- 400 bar
- Minimum bursting pressure
- 850 bar
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm PA3021 (PA-250-SBR14-A-ZVG/US/ /V) is a pressure transmitter with ceramic measuring cell for liquids and gases. It measures relative pressure over 0…250 bar (0…3625 psi), with a pressure rating of 400 bar and a minimum burst pressure of 850 bar. The process connection is a G 1/4 internal thread, the wetted parts are stainless steel (1.4305 / 303), ceramics and FKM, and the permitted medium temperature is -25…90 °C. It provides 1 analog output (4…20 mA), runs on 9.6…32 V DC and connects through an M12 connector (A-coded, 4 gold-plated contacts). ifm specifies characteristic deviation < ± 0.25 % of span and repeatability < 0.1 % of span. The sensor is rated IP68 and IP69K for -25…80 °C ambient.
Technical reference
| Product name | IFM PA3021 Industrial Sensor |
|---|---|
| Brand | IFM |
| Model | PA3021 |
| Category | Industrial Automation Parts |
| Protection | IP68 / IP69K |
| Measuring range | 0...250 bar |
| Output function | 4...20 mA analogue |
| Maximum overload pressure | 400 bar |
| Minimum bursting pressure | 850 bar |
| Operating voltage | 9.6...32 V DC |
| Medium temperature | -25...90 °C |
| Process connection | G 1/4 female |
