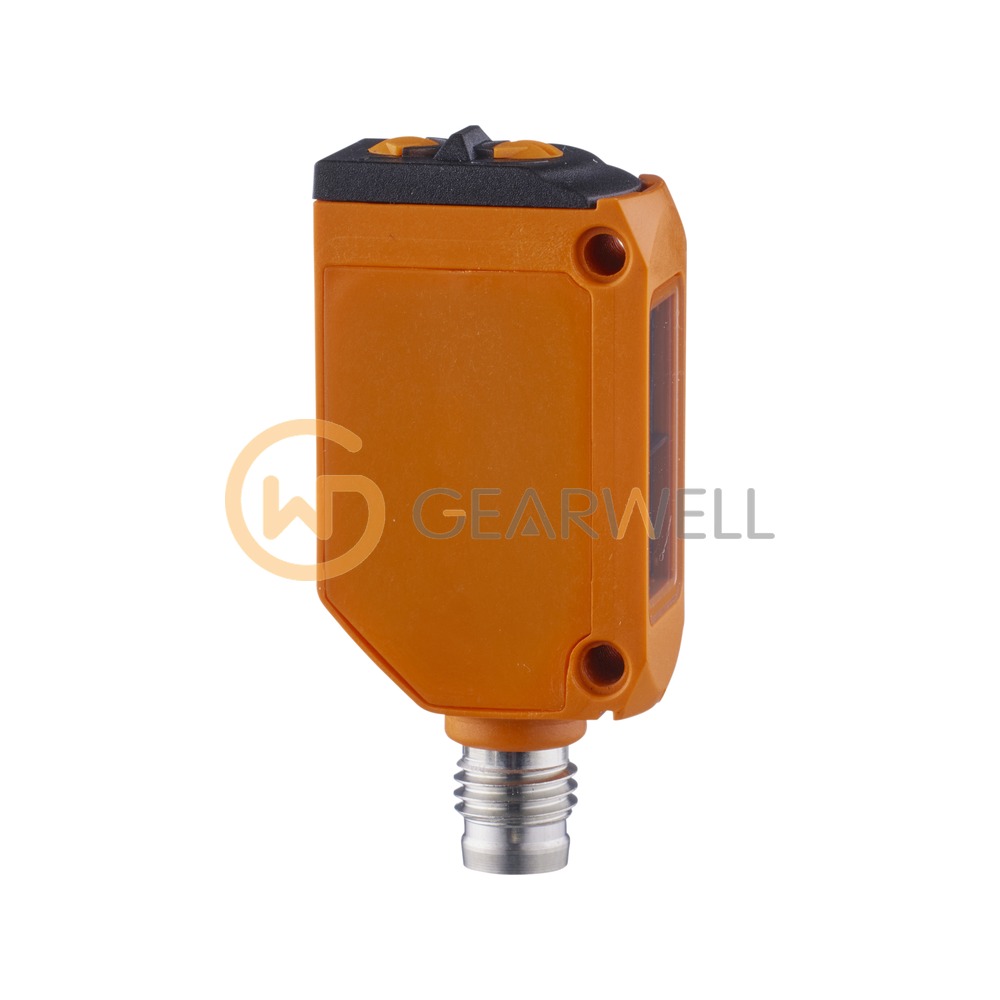

IFM O6P202 O6P-FPKG/AS/3P Retro-reflective Sensor
- Brand
- IFM
- Model
- O6P202
- GEARWELL SKU
- GWP-000009371
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- 46 x 13 x 21 mm
- Protection
- IP 65; IP 67
- Output function
- light-on/dark-on mode (selectable)
- Electrical design
- PNP
- Operating voltage
- 10...30 DC V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm O6P202 (O6P-FPKG/AS/3P) is a retro-reflective sensor in a rectangular housing measuring 46 x 13 x 21 mm. ifm specifies a range of 0.05…5 m with prismatic reflector Ø 80 E20005. It works with red light (633 nm) and has a polarization filter. The light spot is at most 150 mm in diameter at maximum range. It has 1 PNP switching output. The switching output is selectable for light-on or dark-on mode, switches at up to 1000 Hz and carries up to 100 mA. It runs on 10…30 V DC and connects through an M8 connector (A-coded, 3 contacts). It has an orange ABS housing and a PMMA front lens and is rated IP65 and IP67 for -25…60 °C ambient.
Technical reference
| Product name | IFM O6P202 O6P-FPKG/AS/3P Retro-reflective Sensor |
|---|---|
| Brand | IFM |
| Model | O6P202 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | 46 x 13 x 21 mm |
| Protection | IP 65; IP 67 |
| Output function | light-on/dark-on mode (selectable) |
| Electrical design | PNP |
| Operating voltage | 10...30 DC V |
| Ambient temperature | -25...60 °C |
| Current consumption | 12 ((24 V)) mA |
| Switching frequency DC | 1000 Hz |
