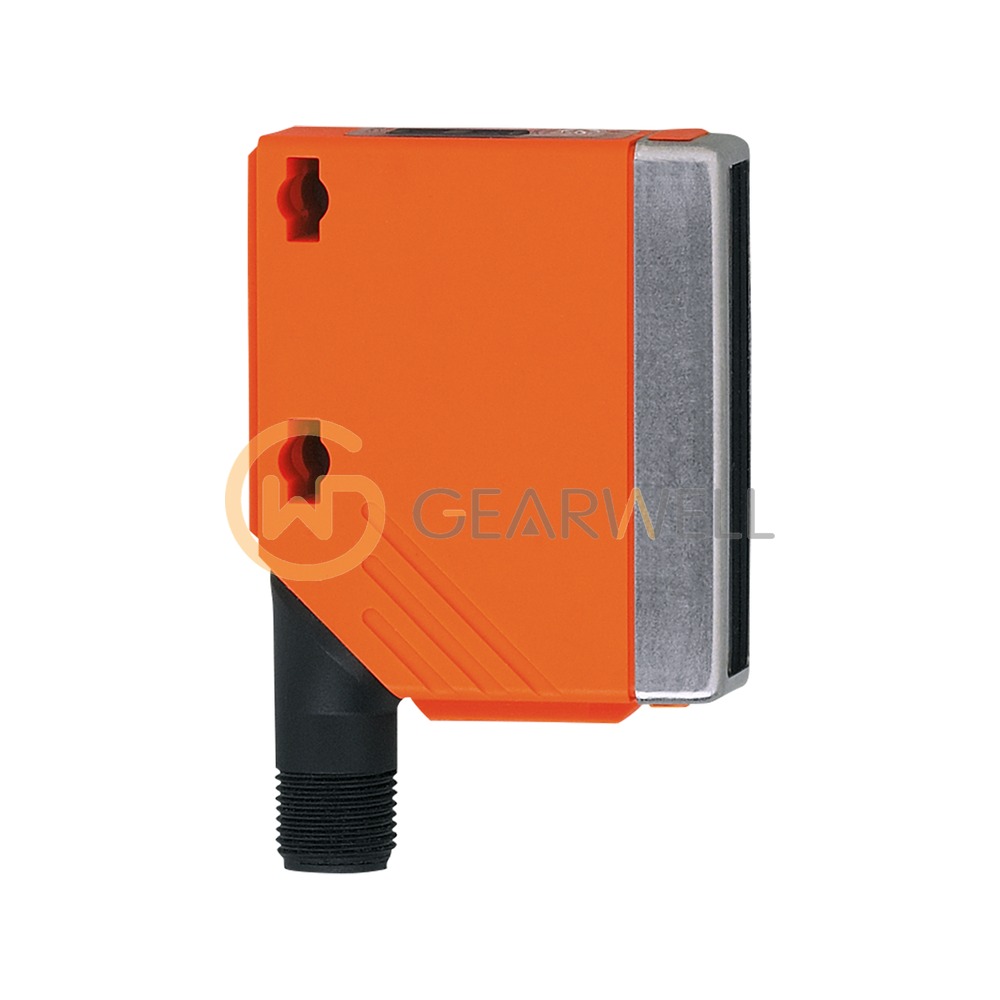

IFM O5C500 O5C-MAKG/US100 Colour Sensor
- Brand
- IFM
- Model
- O5C500
- GEARWELL SKU
- GWP-000008409
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- 15...19 mm
- Dimensions
- 56 x 18.2 x 46.8 mm
- Protection
- IP 67
- Output function
- light-on/dark-on mode (programmable)
- Electrical design
- PNP/NPN (automatic load detection PNP/NPN)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm O5C500 (O5C-MAKG/US100) is a color sensor in a rectangular housing measuring 56 x 18.2 x 46.8 mm. ifm specifies a range of 15…19 mm. It works with red (625 nm), green (525 nm) and blue (465 nm) light. It has 1 PNP/NPN switching output with automatic load detection. The switching output is programmable for light-on or dark-on mode, switches at up to 2000 Hz and carries up to 200 mA. It runs on 10…36 V DC and connects through an M12 connector (A-coded, 5 contacts). It has a PA housing and a PMMA front lens and is rated IP67 for -25…60 °C ambient.
Technical reference
| Product name | IFM O5C500 O5C-MAKG/US100 Colour Sensor |
|---|---|
| Brand | IFM |
| Model | O5C500 |
| Category | Proximity & Photoelectric Sensors |
| Range | 15...19 mm |
| Dimensions | 56 x 18.2 x 46.8 mm |
| Protection | IP 67 |
| Output function | light-on/dark-on mode (programmable) |
| Electrical design | PNP/NPN (automatic load detection PNP/NPN) |
| Operating voltage | 10...36 DC V |
| Current consumption | 50 ((24 V)) mA |
| Switching frequency DC | 2000 Hz |
