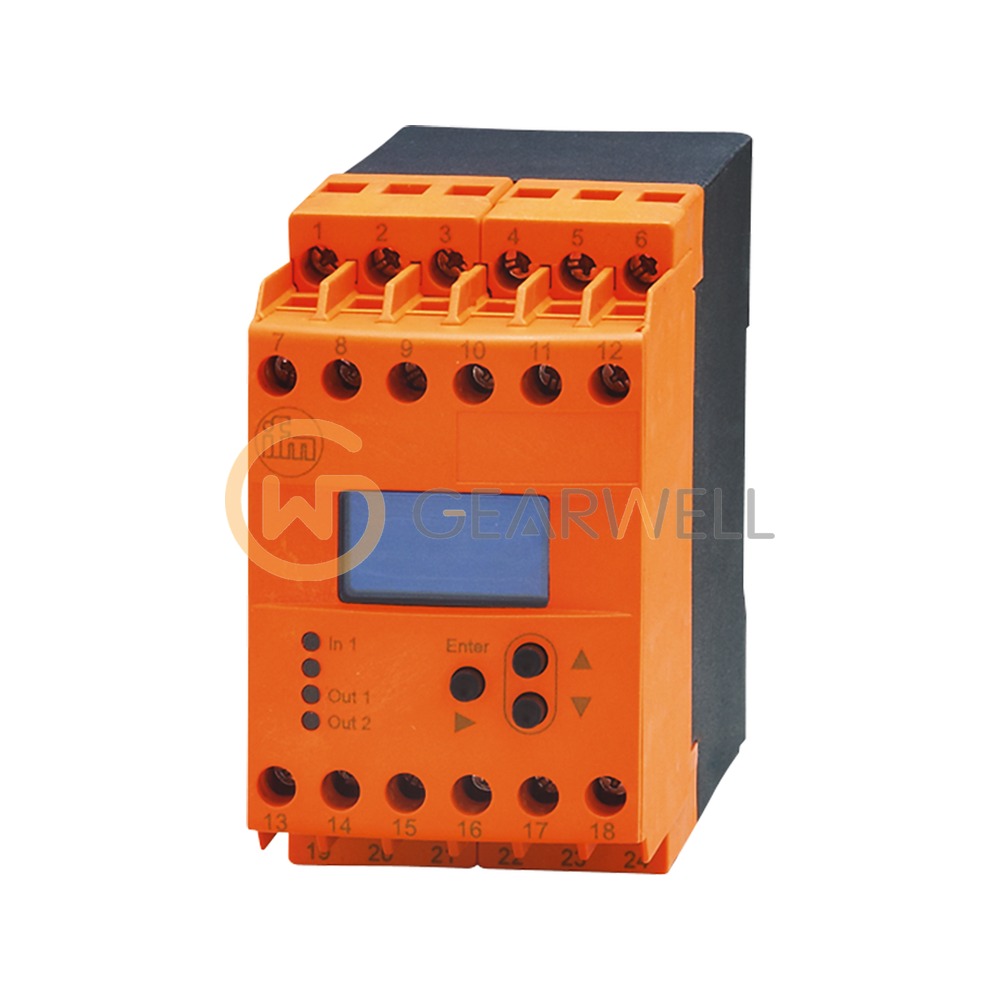

IFM DW2503 Programmable frequency-to-current converter
- Brand
- IFM
- Model
- DW2503
- GEARWELL SKU
- GWP-000012254
- Category
- Relays & Controllers
Key specifications
- Dimensions
- 78 x 45 x 124.7 mm
- Application
- Conversion of pulse sequences into analog standard signals
- Setting range
- 0...600000 Imp/min
- Contact rating
- 6 A (250 V AC, 30 V DC); B300, R300; (resistive load)
- Nominal voltage AC
- 110...240 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM DW2503 Programmable frequency-to-current converter |
|---|---|
| Brand | IFM |
| Model | DW2503 |
| Category | Relays & Controllers |
| Dimensions | 78 x 45 x 124.7 mm |
| Application | Conversion of pulse sequences into analog standard signals |
| Setting range | 0...600000 Imp/min |
| Contact rating | 6 A (250 V AC, 30 V DC); B300, R300; (resistive load) |
| Nominal voltage AC | 110...240 V |
| Nominal voltage DC | 27 V |
| Analog current output | 4...20 mA |
| Number of relay outputs | 1 |
