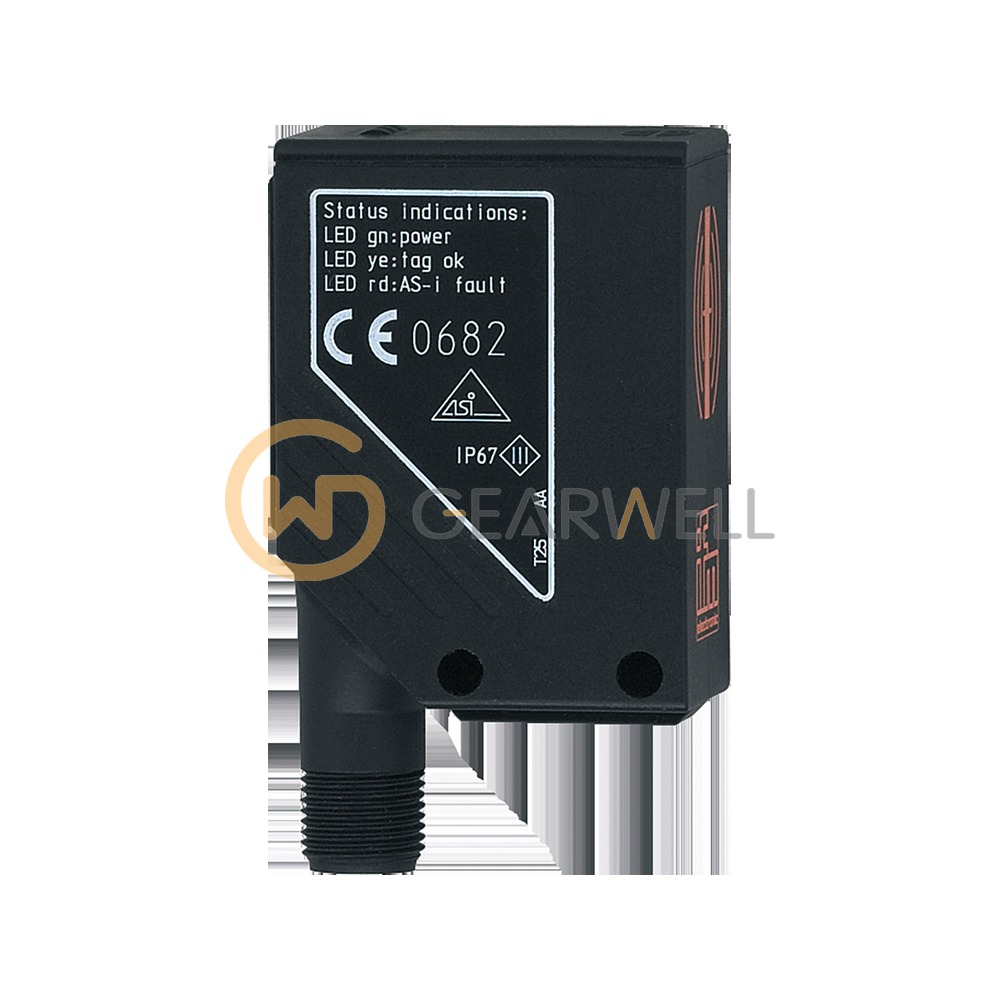

IFM DTA101 RFID read antenna with AS-Interface
- Brand
- IFM
- Model
- DTA101
- GEARWELL SKU
- GWP-000012110
- Category
- Industrial Communication
Key specifications
- Housing
- rectangular
- Dimensions
- 55 x 24 x 41 mm
- Protection
- IP 67
- Electrical design
- AS-i
- Operating voltage
- 26.5...31.6 DC; (cULus - Class 2 source required) V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm DTA101 (DTSLF AAROASUS01) is an LF RFID read antenna working at 125 kHz with an AS-Interface connection (ID code 3, certificate 71502), for detecting objects on transport equipment at travel speeds below 0.5 m/s. ifm gives a static read distance of up to 20 mm and a minimum spacing between heads of 400 mm front and side. It runs on 26.5…31.6 V DC from AS-i, has a 55 x 24 x 41 mm PA housing, connects through an M12 connector (A-coded, 4 contacts) and is rated IP67 for -20…50 °C ambient.
Technical reference
| Product name | IFM DTA101 RFID read antenna with AS-Interface |
|---|---|
| Brand | IFM |
| Model | DTA101 |
| Category | Industrial Communication |
| Housing | rectangular |
| Dimensions | 55 x 24 x 41 mm |
| Protection | IP 67 |
| Electrical design | AS-i |
| Operating voltage | 26.5...31.6 DC; (cULus - Class 2 source required) V |
| Ambient temperature | -20...50 °C |
| Operating frequency | 0,125 MHz |
| Communication interface | AS-i |
