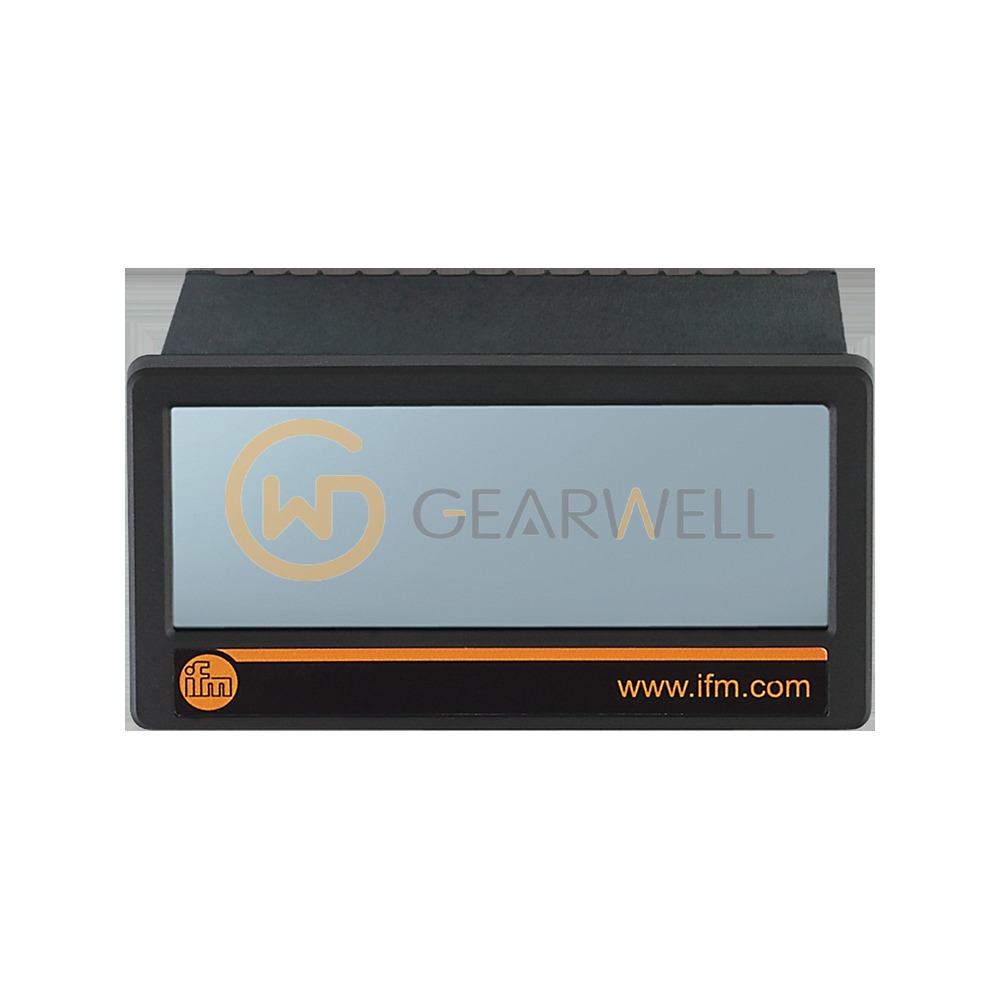

IFM DX2032 Multifunction display for monitoring revolution, speed and time
- Brand
- IFM
- Model
- DX2032
- GEARWELL SKU
- GWP-000012111
- Category
- Relays & Controllers
Key specifications
- Protection
- IP 65
- Operating voltage
- 18...30 DC V
- Ambient temperature
- -20...60 °C
- Analog current output
- 0...20 mA
- Analog voltage output
- -10...10 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm DX2032 (DISPLAY/FX460/ANALOG/DC) is a multifunction display for panel mounting (cutout 91 x 43 mm) that evaluates and displays all physical units derived from pulse sequences. It has two digital inputs for PNP, NAMUR or tri-state signals, four digital outputs and an analog output of 0…20 mA or -10…10 V with 16-bit resolution and 0.1 % precision. It runs on 18…30 V DC, has a Noryl (UL94 V-0) housing measuring 48 x 112 x 116 mm and is rated IP65 on the front (terminals IP20) for -20…60 °C ambient.
Technical reference
| Product name | IFM DX2032 Multifunction display for monitoring revolution, speed and time |
|---|---|
| Brand | IFM |
| Model | DX2032 |
| Category | Relays & Controllers |
| Protection | IP 65 |
| Operating voltage | 18...30 DC V |
| Ambient temperature | -20...60 °C |
| Analog current output | 0...20 mA |
| Analog voltage output | -10...10 V |
| Number of digital inputs | 2 |
| Number of digital outputs | 4 |
| Input circuit of digital inputs | PNP; NAMUR; Tri-State |
