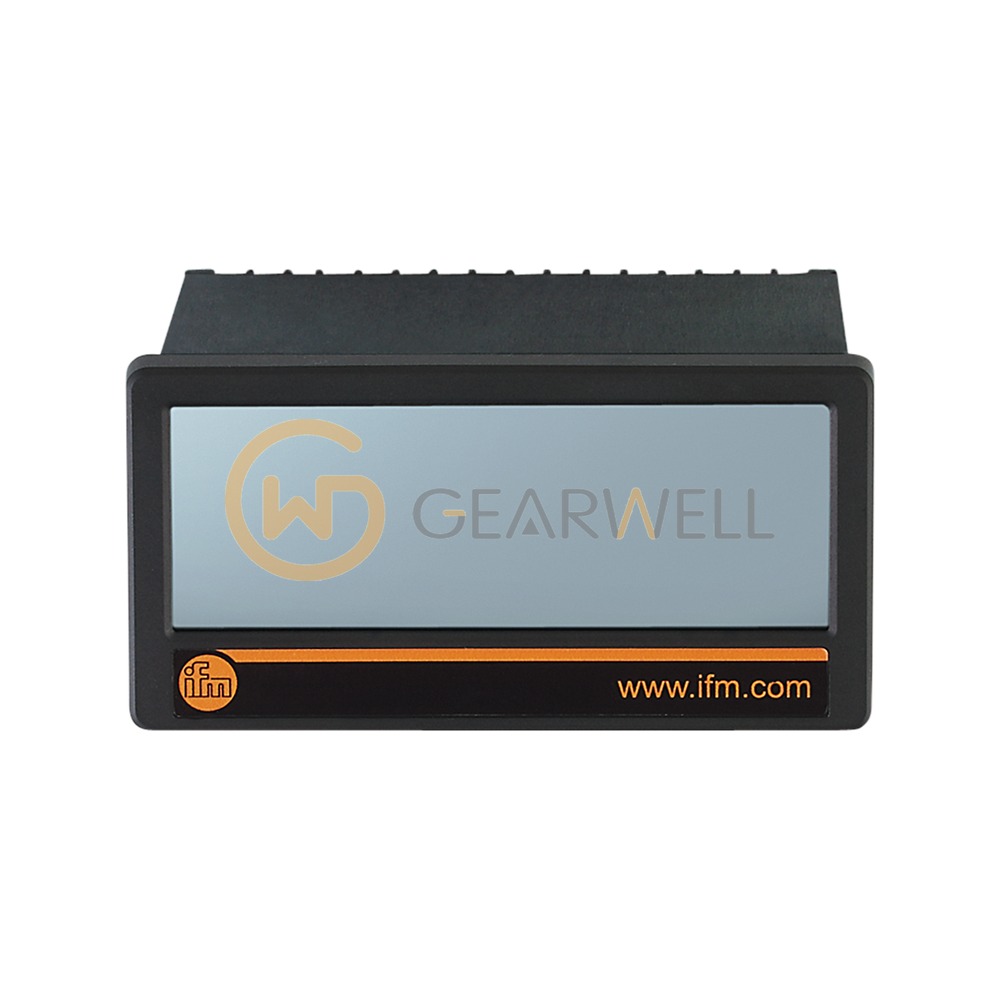

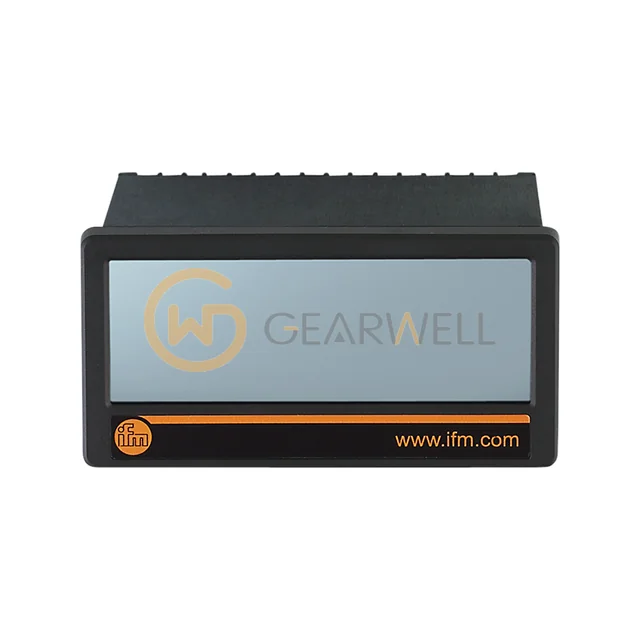

IFM DX2052 Multifunction Display
- Brand
- IFM
- Model
- DX2052
- GEARWELL SKU
- GWP-000008431
- Category
- HMIs & Industrial PCs
Key specifications
- Housing
- rectangular
- Dimensions
- 48 x 112 x 116 mm
- Protection
- IP 65
- Operating voltage
- 18...30 DC V
- Ambient temperature
- -20...60 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm DX2052 (DISPLAY/AX460/PNP OUT/DC) is a multifunction display for panel mounting (cutout 91 x 43 mm) for displaying and monitoring analog standard signals, for example from pressure, temperature or flow sensors. It has two analog inputs for 0…20 mA or -10…10 V with 16-bit resolution and 0.1 % precision, and four digital outputs. It runs on 18…30 V DC, has a Noryl (UL94 V-0) housing measuring 48 x 112 x 116 mm and is rated IP65 on the front (terminals IP20) for -20…60 °C ambient.
Technical reference
| Product name | IFM DX2052 Multifunction Display |
|---|---|
| Brand | IFM |
| Model | DX2052 |
| Category | HMIs & Industrial PCs |
| Housing | rectangular |
| Dimensions | 48 x 112 x 116 mm |
| Protection | IP 65 |
| Operating voltage | 18...30 DC V |
| Ambient temperature | -20...60 °C |
| Current consumption | 100 mA |
| Number of analogue inputs | 2 (Spannungs- oder Stromeingang) |
| Number of digital outputs | 4 |
