IFM DL0203 Evaluation Unit for Level Monitoring/Control
- Brand
- IFM
- Model
- DL0203
- GEARWELL SKU
- GWP-000006784
- Category
- Pressure, Flow & Temperature
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

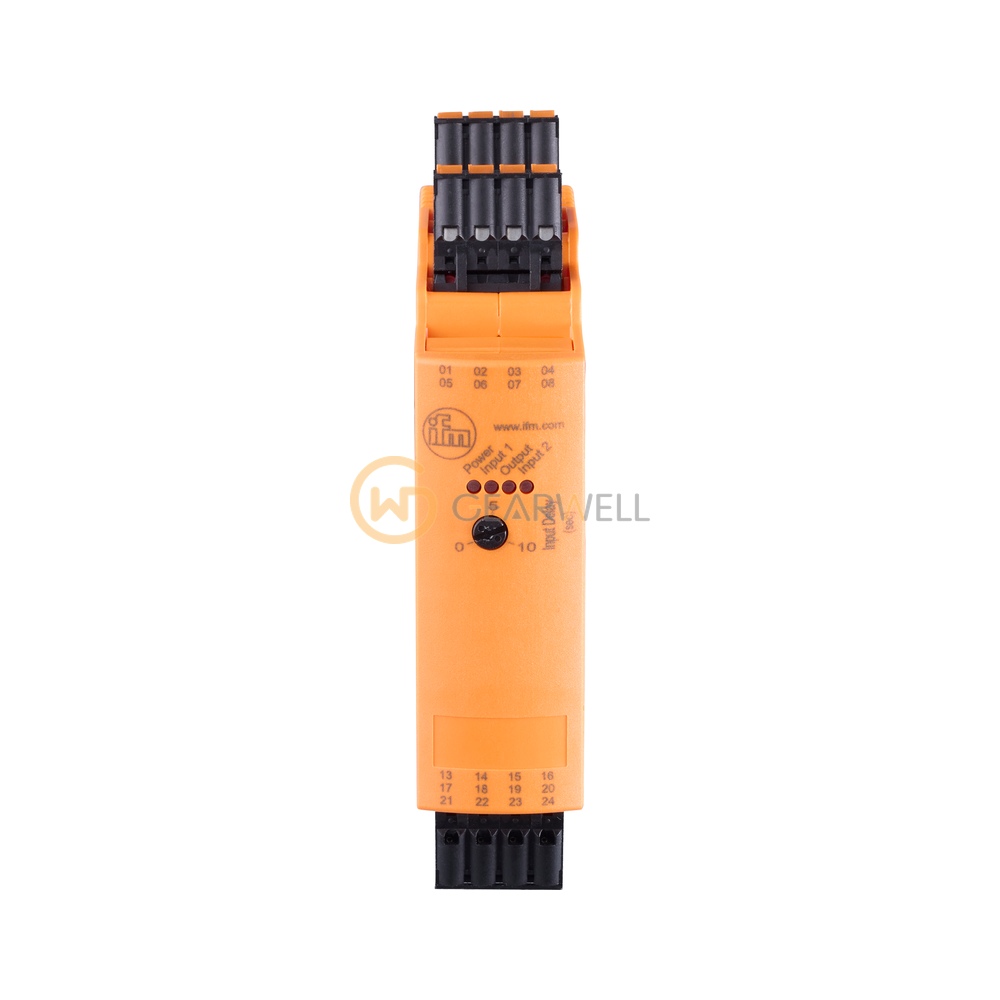

The ifm DL0203 (L200/LC-1/110-240VAC 24VDC) is an evaluation unit for two-point level control, for DIN rail mounting. It has two PNP sensor inputs (type 2 to IEC 61131-2), a PNP output rated at 0.1 A and a relay output rated at 6 A (up to 240 V AC / 30 V DC), with the input delay set by potentiometer, and supplies sensors with 18.5…30 V DC (SELV, up to 100 mA). It runs on 110…240 V AC or 27 V DC, has a PC-GF20 housing measuring 93 x 25.4 x 109 mm and is rated IP20 when mounted for -25…60 °C ambient. Five cage clamps for conductors up to 2.5 mm² are supplied.
Technical reference
| Product name | IFM DL0203 Evaluation Unit for Level Monitoring/Control |
|---|---|
| Brand | IFM |
| Model | DL0203 |
| Category | Pressure, Flow & Temperature |
